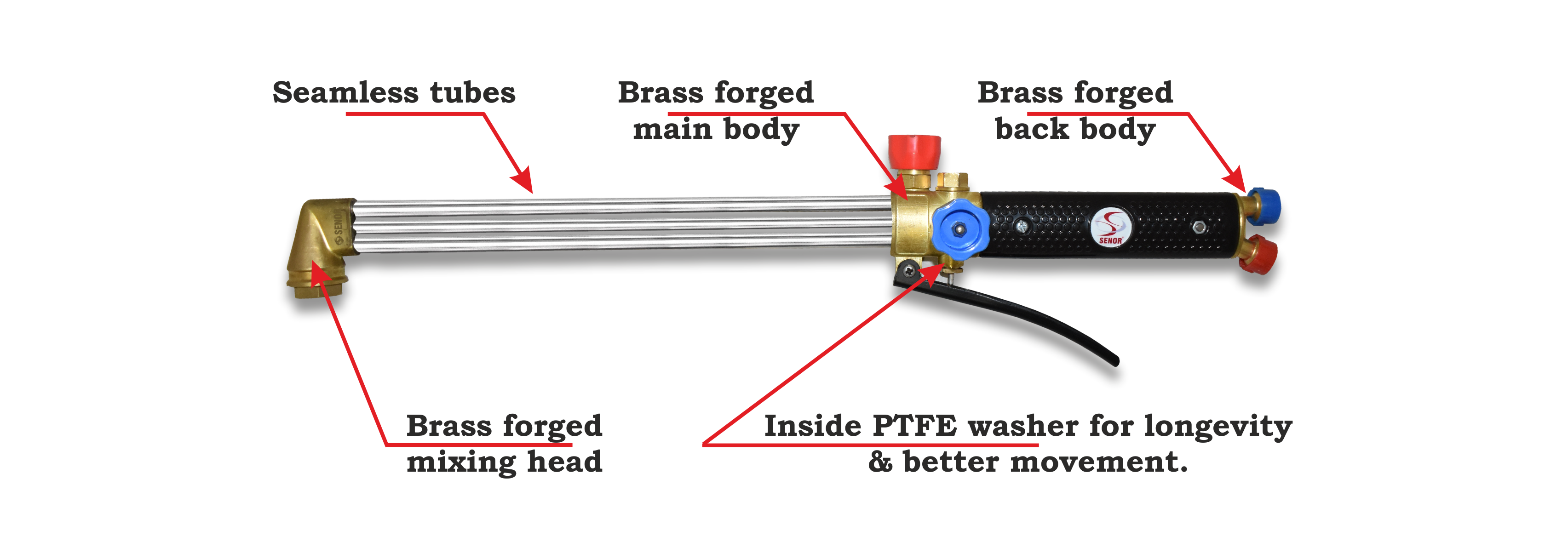

Cutting Torch
Secure NM250
Secure NM250 – Premium
Master Cut - Injector Type
Senor Advantages :
- Oxyfuel technology.
- Backfire resistant robust design.
- This NM Cutter is easy to handle and withstand rough usage for a longer time.
- Handle is designed for longer life, offering much better appearance and grip.
- Knob design offer better grip and longer life.
- Usable with acetylene or LPG. Can be employed for a wide range of piercing jobs, up to 250 mm thickness
- Convient handling to the operator, much lighter & with lower fatigue.
- Reliable & Durable.
Operating Data:
Material Thickness | Nozzle Size | Gas Pressure Oxygen | Gas Pressure Fuel | ||||||
Acetylene | Propane | ||||||||
mm | inch | bar | psi | bar | psi | bar | psi | ||
6 | 1/4" | 1/32" | (3-6) | 1.50 | 20.00 | 0.15 | 2.00 | 0.20 | 3.00 |
12 | 1/2" | 3/64" | (5-12) | 2.00 | 30.00 | 0.15 | 2.00 | 0.20 | 3.00 |
25 | 1" | 1/16" | (10-75) | 2.50 | 35.00 | 0.15 | 2.00 | 0.30 | 4.00 |
50 | 2" | 1/16" | (10-75) | 3.00 | 45.00 | 0.15 | 2.00 | 0.30 | 4.00 |
75 | 3" | 1/16" | (10-75) | 3.50 | 50.00 | 0.15 | 2.00 | 0.30 | 4.00 |
100 | 4" | 5/64" | (70/100) | 4.00 | 60.00 | 0.20 | 3.00 | 0.35 | 5.00 |
150 | 6" | 3/32" | (90/150) | 4.00 | 60.00 | 0.20 | 3.00 | 0.40 | 6.00 |
200 | 8" | 7/64" | (140-200) | 4.00 | 60.00 | 0.20 | 3.00 | 0.40 | 6.00 |
Material Thickness | Nozzle Size | Gas Pressure Oxygen | Gas Pressure Fuel | ||||||
Acetylene | Propane | ||||||||
mm | inch | bar | psi | bar | psi | bar | psi | ||
6 | 1/4" | 1/32" | (3-6) | 1.50 | 20.00 | 0.15 | 2.00 | 0.20 | 3.00 |
12 | 1/2" | 3/64" | (5-12) | 2.00 | 30.00 | 0.15 | 2.00 | 0.20 | 3.00 |
25 | 1" | 1/16" | (10-75) | 2.50 | 35.00 | 0.15 | 2.00 | 0.30 | 4.00 |
50 | 2" | 1/16" | (10-75) | 3.00 | 45.00 | 0.15 | 2.00 | 0.30 | 4.00 |
75 | 3" | 1/16" | (10-75) | 3.50 | 50.00 | 0.15 | 2.00 | 0.30 | 4.00 |
100 | 4" | 5/64" | (70/100) | 4.00 | 60.00 | 0.20 | 3.00 | 0.35 | 5.00 |
150 | 6" | 3/32" | (90/150) | 4.00 | 60.00 | 0.20 | 3.00 | 0.40 | 6.00 |
200 | 8" | 7/64" | (140-200) | 4.00 | 60.00 | 0.20 | 3.00 | 0.40 | 6.00 |
