Oxygen | Carbon-dioxide | Argon | Acetylene

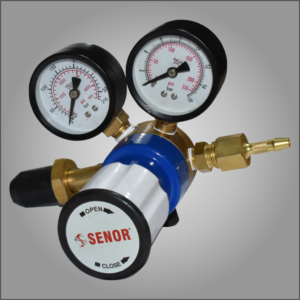

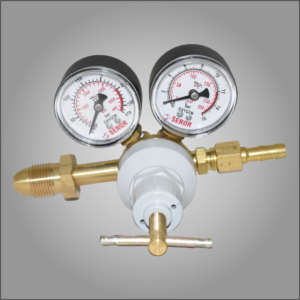

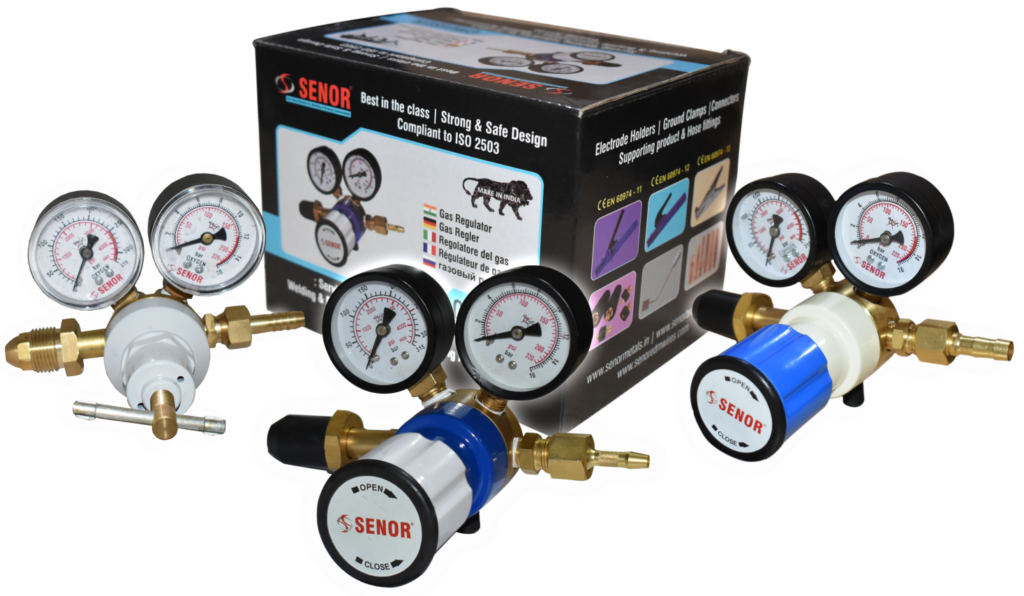

SINGLE STAGE GAS REGULATORS are recommended for inert and non-corrosive gas applications:
Features:
- All metal components made from brass and machined on CNC machines.
- All components are ultrasonically cleaned, polished and deburred.
- Inlet to the regulator passes through sintered bronze brass filter.
- All components used in gas regulator do not react with gases, shown in the table.
Technical Specifications
Sr No | GAS | Model | Cylinder | Delivery | Connections | |||
Pressure Bar | Gauge Bar | Pressure Bar | Gauge Bar | Inlet | Outlet | |||
1 | Oxygen | CRUISER ST-O | 150 | 0-300 | 0-10 0-4.0 | 0-16 0-7.0 | G 5/8 RH (M) | G 3/8 RH (M) |
2 | Carbon-Dioxide | CRUISER ST-C | 80 | 0-300 | 0-10 0-4.0 | 0-16 0-7.0 | W 21 8X14 RH (F) | G 3/8 RH (M) |
3 | Argon | CRUISER ST-AR | 150 | 0-300 | 0-4.0 0-10 | 0-7.0 0.16 | G 5/8 RH (M) | G 3/8 RH (M) |
4 | Acetylene | CRUISER ST-A | 18 | 0-40 | 0-1.5 | 0-2.5 | G 5/8 LH (M) | G 3/8 LH (M) |
Applications
1. Gas Regulators are used for compressed gases and gas dissolved under pressure for industrial processes like
- Welding
- Brazing
- Heating
- Cutting
- Process Control
- Research Lab.
2. The main function is to reduce the gas pressure to the desired flow & pressure as per application.
