DETAILS
Features/Characteristics

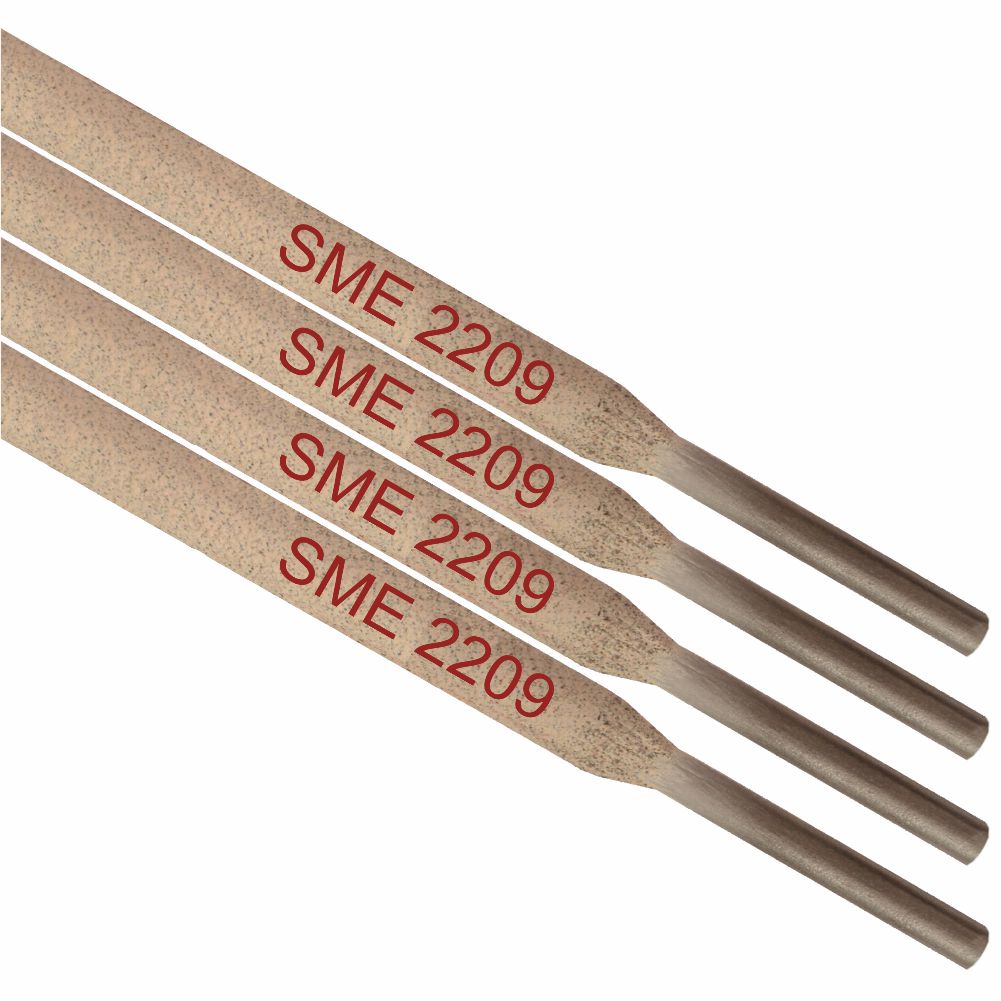

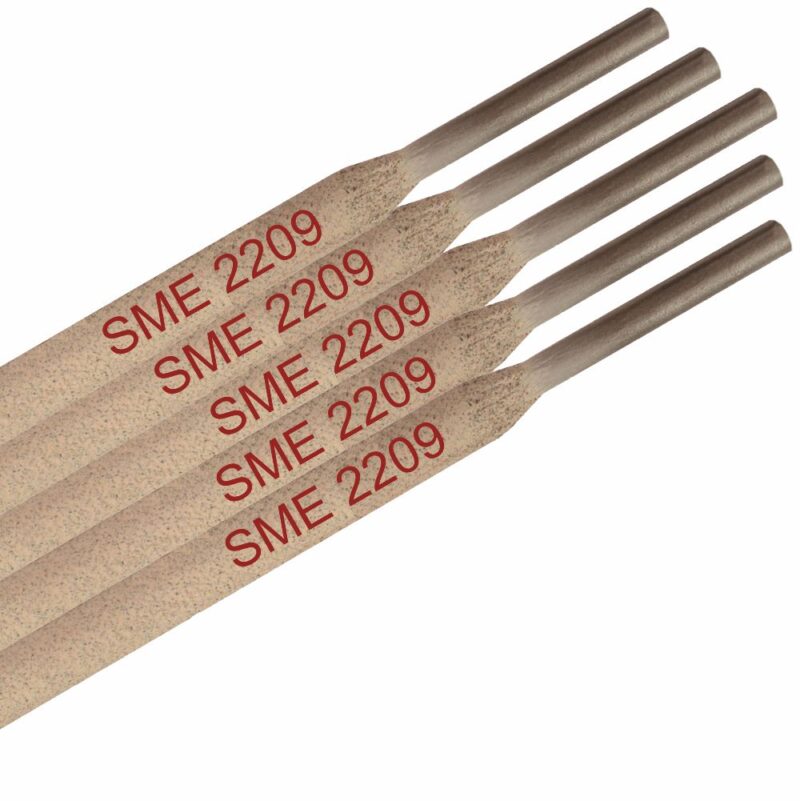

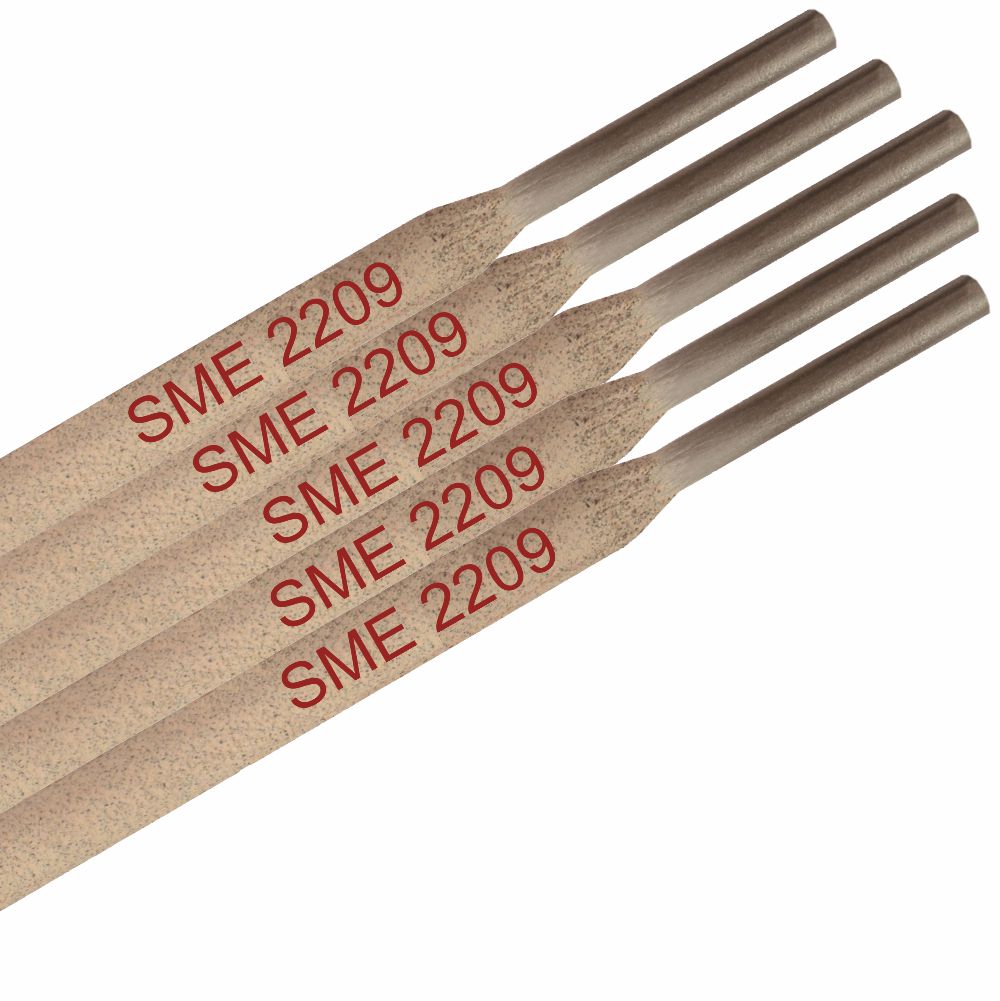

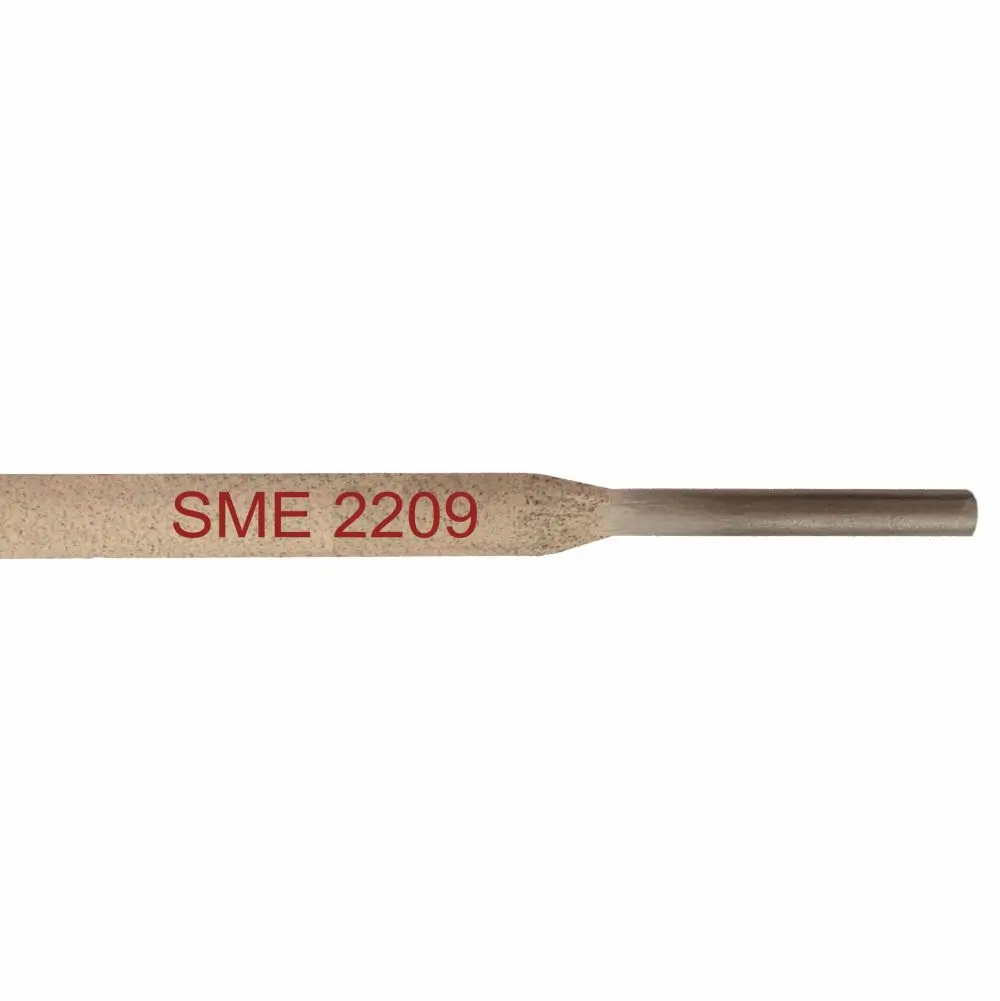

SME 2209-16 Electrode the nominal composition of this weld metal is 22.5 Cr, 9.5 Ni, 3 Mo, 0.15 N. Weld metal deposited by these electrodes has “duplex” microstructure consisting of an austenite-ferrite matrix. Weld metal deposited by SME2209 Electrodes combines increased tensile strength with improved resistance to pitting corrosive attack and to stress corrosion cracking.
SME 2209-16 Welding Rod Uses/Applications
- SME 2209-16 used for Offshore oil and gas, chemical, petrochemical.
- Used for welding duplex stainless steels having Cr< 25% and other grades like UNS 32205, UNS 31803, etc.
- Suitability to Welding of 2205 Stainless Steels
- Off shore Platforms and Chemical industries.
Re-drying Conditions

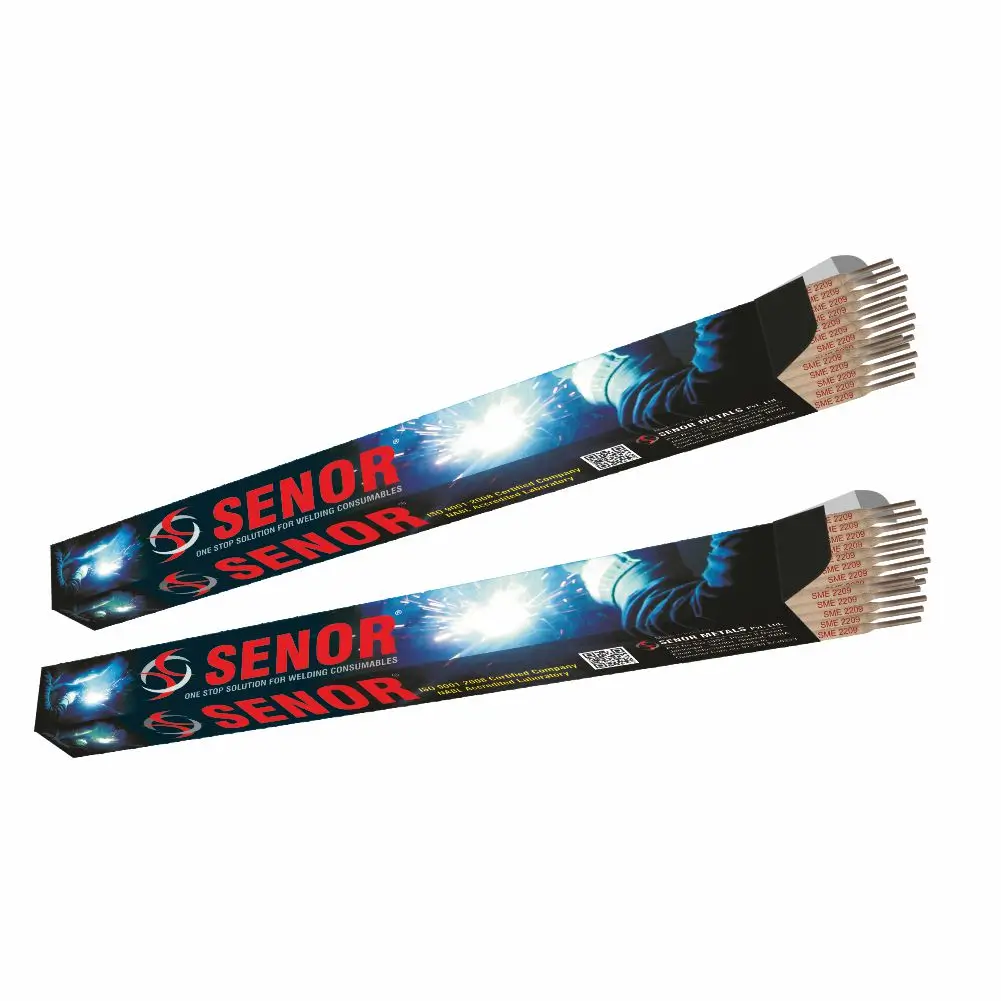

To obtain best results re dry the electrodes at 300 °C for 1 hour (Optionally available in vacuum-packed condition, re-drying not required in this packaging).
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Stainless Steel Electrodes
Related products
CONFORMANCE/CLASSIFICATION
| Conformances | Specification | Classification |
| AWS | AWS A/SFA 5.4 | E 2209-16 |
SME 2209-16 WELD COMPOSITION
|
C |
Cr | Ni | Mo | Mn | Si | P | S | N | Cu |
| 0.04
max |
21.5 –
23.5 |
8.5 –
10.5 |
2.5 – 3.5 | 0.5 – 2.0 | 1.0max | 0.04
max |
0.03 max | 0.08 –
0.20 |
0.75 max |
MECHANICAL PROPERTIES
Ultimate Tensile Strength Min: 690 MPa
Elongation Min: 20 %
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DC (+)
| Diameter | Current (Amps) |
| 2.5 mm | 60 – 80 |
| 3.2 mm | 80 – 110 |
| 4.0 mm | 100 – 150 |
| 5.0 mm | 150 – 190 |
Availability
Standard Size: 5.0, 4.0, 3.2, and 2.5 diameter.
