DETAILS
Features/Characteristics

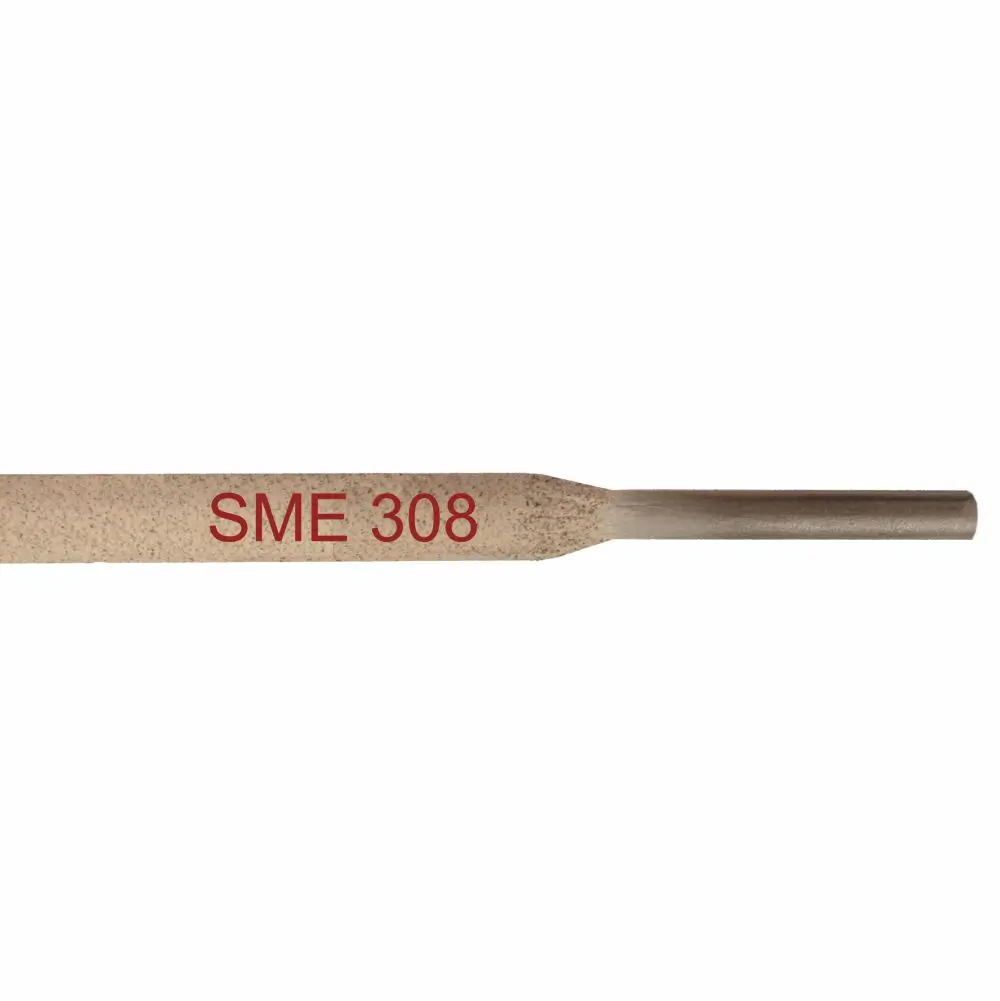

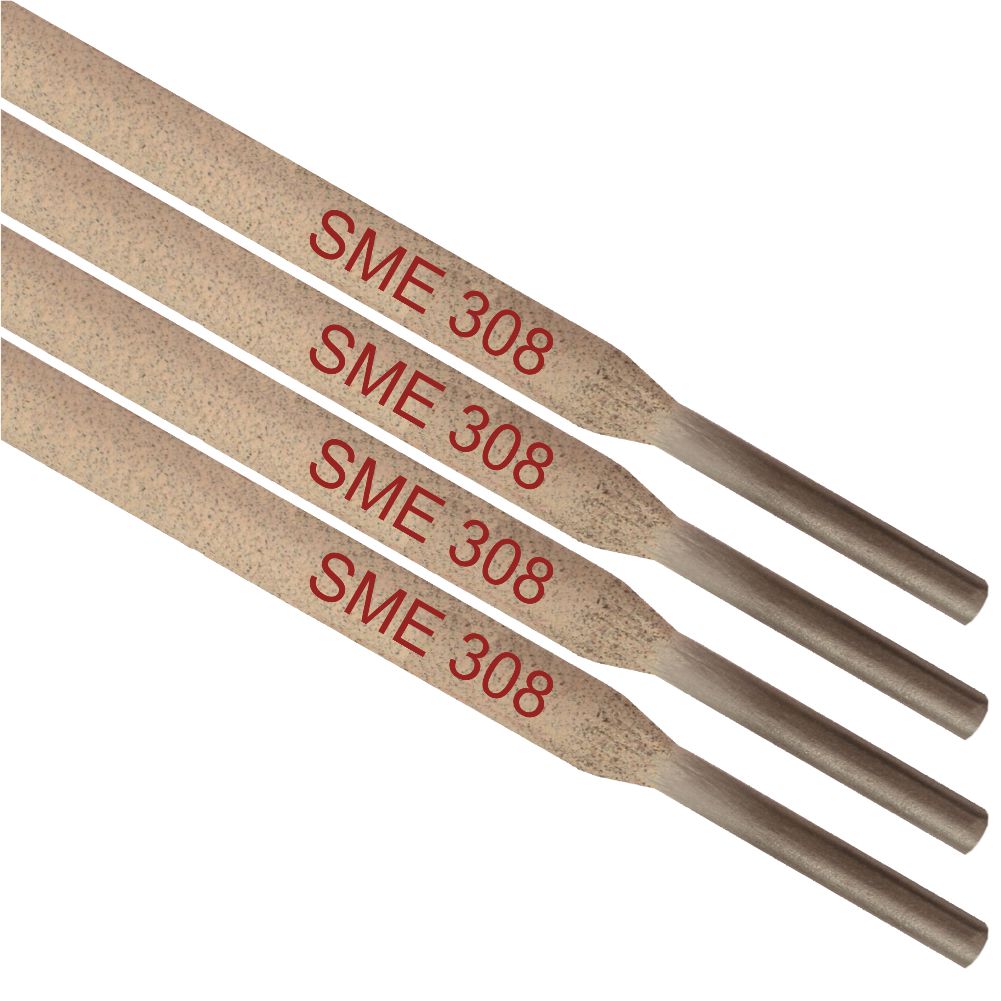

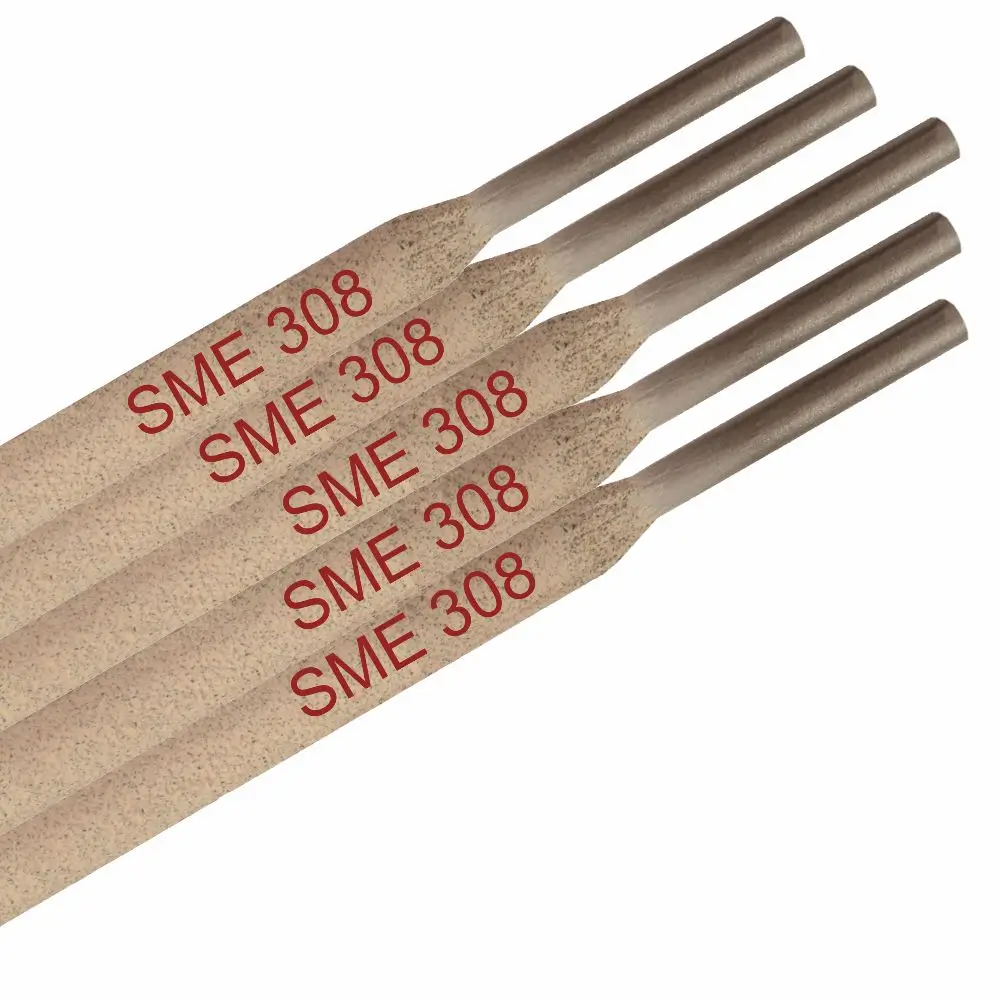

SME 308-16 composition of the weld metal is 19.5Cr, & 10Ni, electrodes of this composition are most often used to weld base metal of similar composition such as AISI Types 301, 302, 304, and 305. E308-16 electrodes provide corrosion resistance and physical properties equal to or greater than the steels for which they are recommended.
SME 308-16 Welding Rod Uses/Applications
- Used to weld base metal of similar composition, Typical applications include dairy, distillery and restaurant equipment, and chemical tanks.
- SME308-16 is designed for welding of the following 18-8 stainless steel types: 301,302,304 and 308.
- The weld deposit has the proper chemical content and balance for satisfactory welding of type 308,
- Suitable for welding 18-8 types of lower alloy content. Sound weld metal.
Re-drying Conditions
To obtain best results Re-dry the Electrodes at 300°C for 1 hour (optionally available in vacuum packed Condition, re-drying not required in this packaging)
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Stainless Steel Electrodes
Related products
CONFORMANCE/CLASSIFICATION
| Conformances | Specification | Classification |
| AWS | AWS A/SFA 5.4 | E 308-16 |
SME 308-16 WELD COMPOSITION
|
C |
Cr | Ni | Mo | Mn | Si | P | S | Cu | C |
| 0.08 max | 18 – 21 | 9 – 11 | 0.75 max | 0.5 – 2.5 | 1.0max | 0.04 max | 0.03 max | 0.75 max |
0.08 max |
MECHANICAL PROPERTIES
Ultimate Tensile Strength Min: 520 MPa
Elongation Min: 30 %
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DC (+)
| Diameter | Current (Amps) |
| 2.5 mm | 50 – 75 |
| 3.2 mm | 80 – 100 |
| 4.0 mm | 120 – 150 |
| 5.0 mm | 170 – 190 |

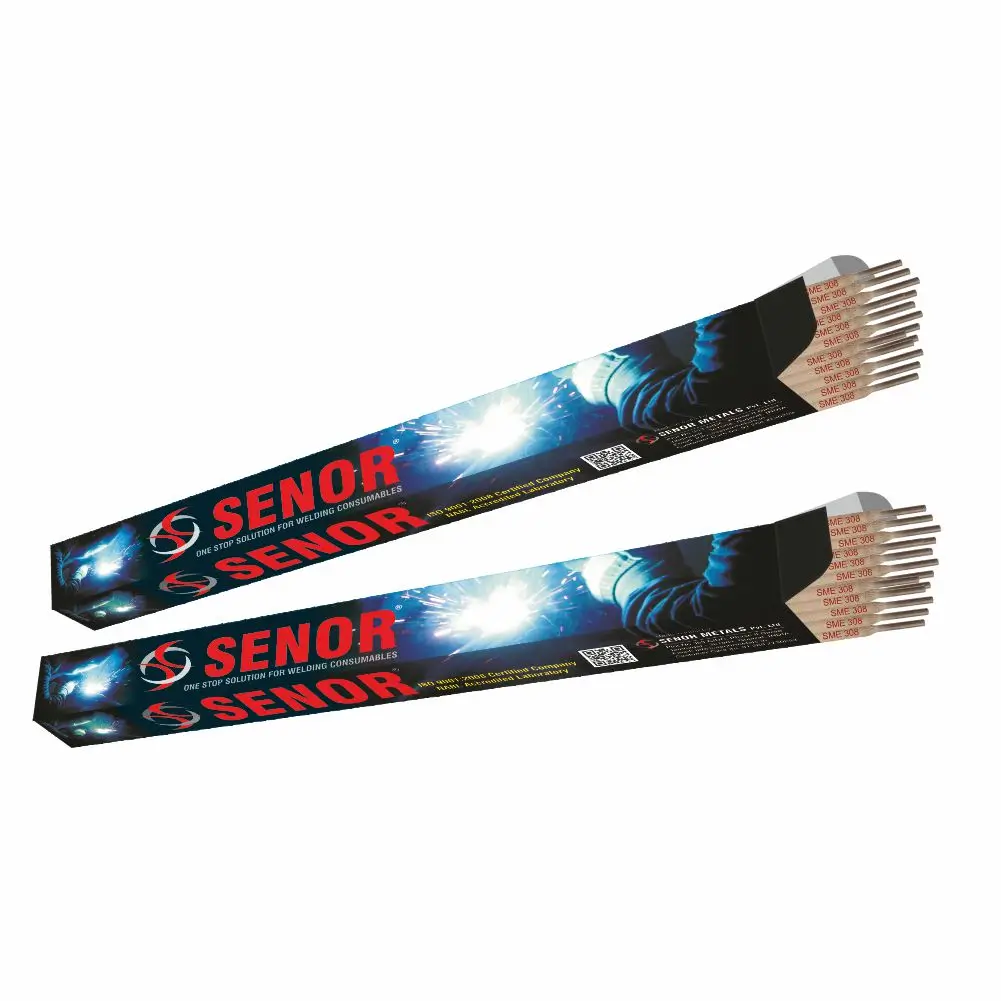

Availability
Standard Size: 5.0, 4.0, 3.2, and 2.5 in 350 mm length.
