DETAILS
Features/Characteristics

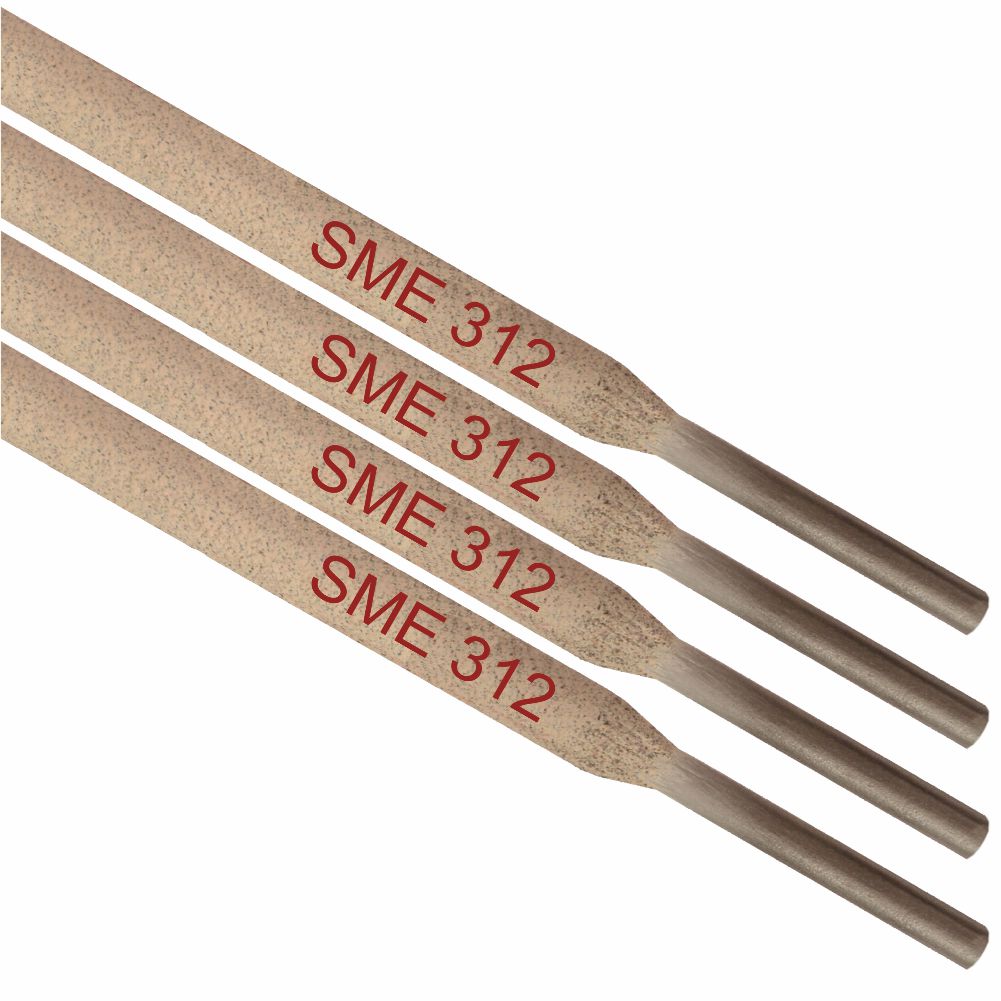

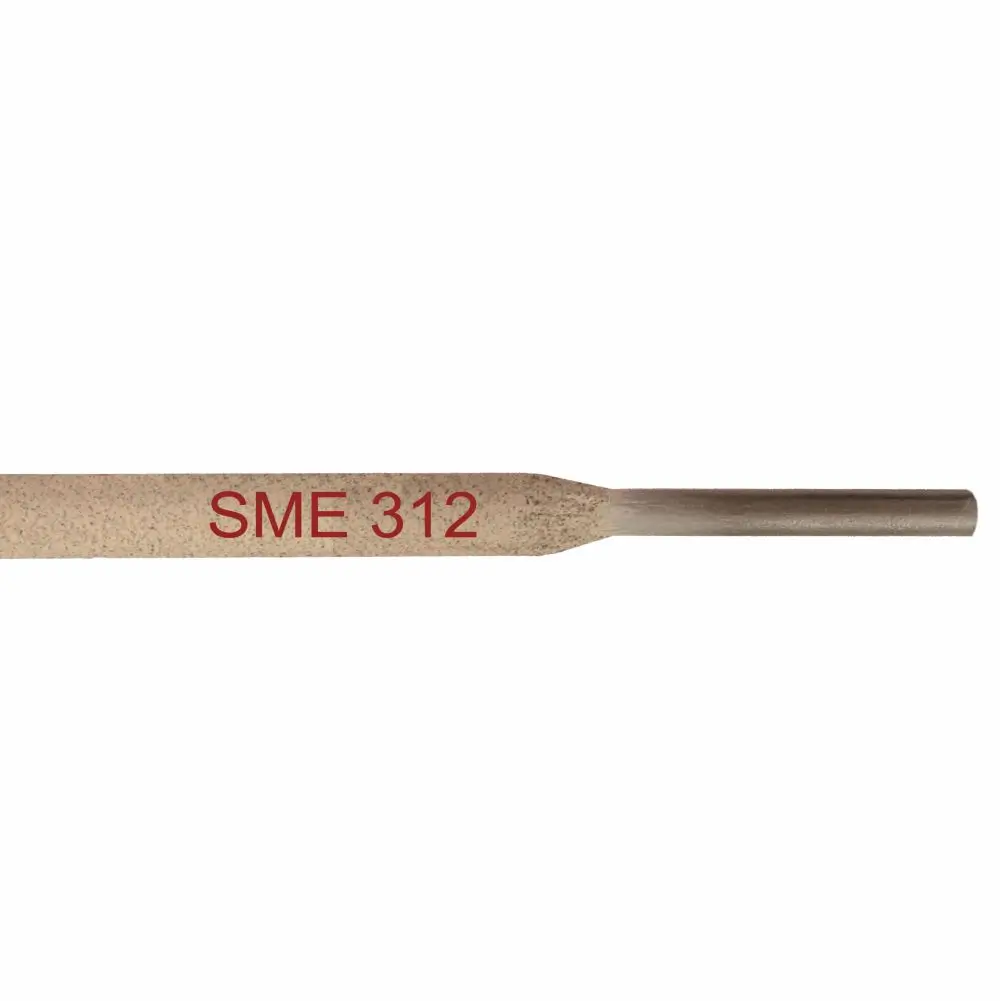

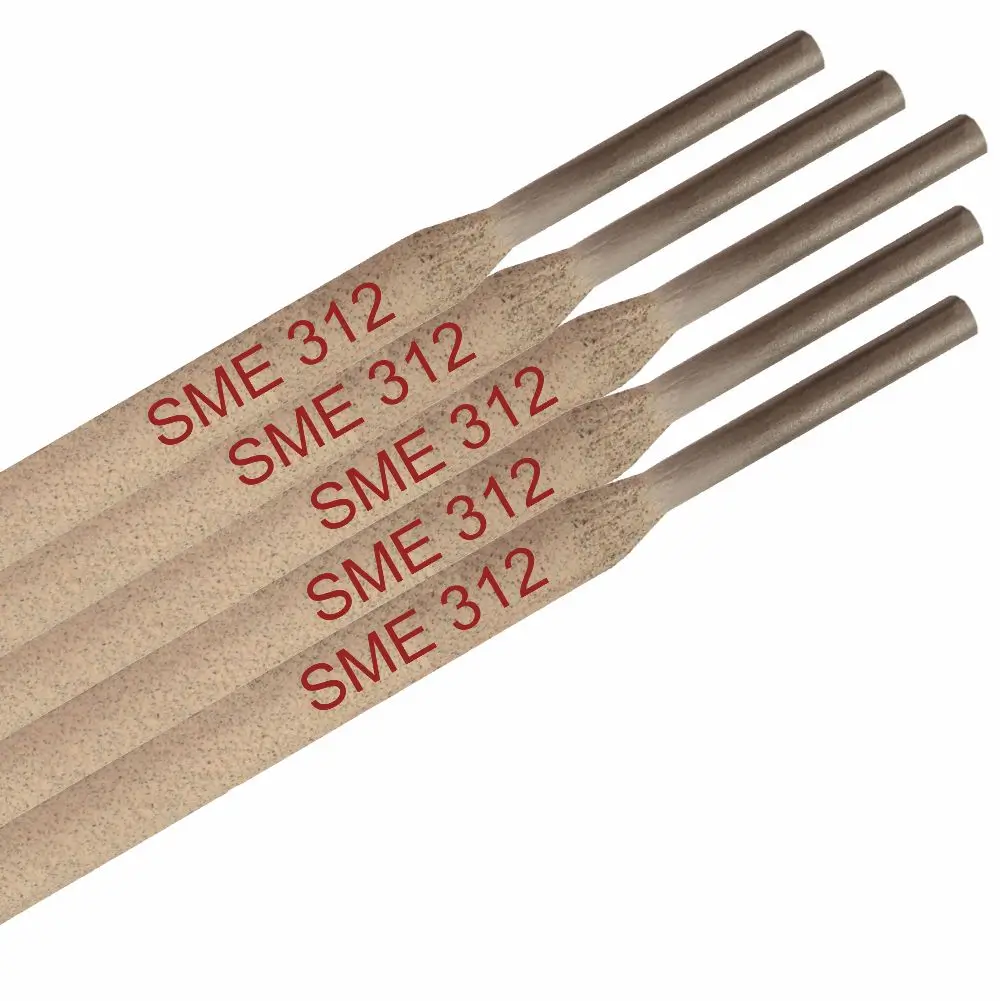

Senor SME 312-16 is a rutile based medium coated all position electrode giving 30Cr/10Ni deposit which has excellent oxidation resistance. The weld metal has a two phase structure with substantial amount of ferrite in the austenitic matrix. The deposited weld metal is highly resistant to weld metal cracks and fissures. Gives a quiet and stable arc, low spatter, smooth weld bead and easily detachable slag.
SME 312-16 Welding Rod Uses/Applications
- Welding difficult to weld steels e.g. high carbon hardenable tool, die and spring steels, 13% Mn steels, free cutting Steels, high temperature steels.
- Joining/welding of dissimilar steels, cast steels nickel steels, chrome steels
- Marine, re-conditioning and refurbishment industries
- Welding wrought and cast alloys of similar composition
Welding Positions
All Position
Re-drying Conditions
To obtain best results re dry the electrodes at 300 °C for 1 hour (Optionally available in vacuum-packed condition, re-drying not required in this packaging).
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Stainless Steel Electrodes
Related products
CONFORMANCE/CLASSIFICATION
| Conformances | Specification | Classification |
| AWS | AWS A/SFA 5.4 | E 312-16 |
SME 312-16 WELD COMPOSITION
|
C |
Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.15 max | 28 – 32 | 8 – 10.5 | 0.75 max | 0.5 – 2.5 | 1.0 max | 0.04 max | 0.03 max |
0.75 max |
MECHANICAL PROPERTIES
Ultimate Tensile Strength Min: 660 MPa
Elongation Min: 22-30 %
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DC (+)
| Diameter | Current (Amps) |
| 2.5 mm | 50 – 75 |
| 3.2 mm | 80 – 100 |
| 4.0 mm | 120 – 150 |
Availability
Standard Size: 4.0, 3.2, and 2.5 diameter.
