Features/Characteristics

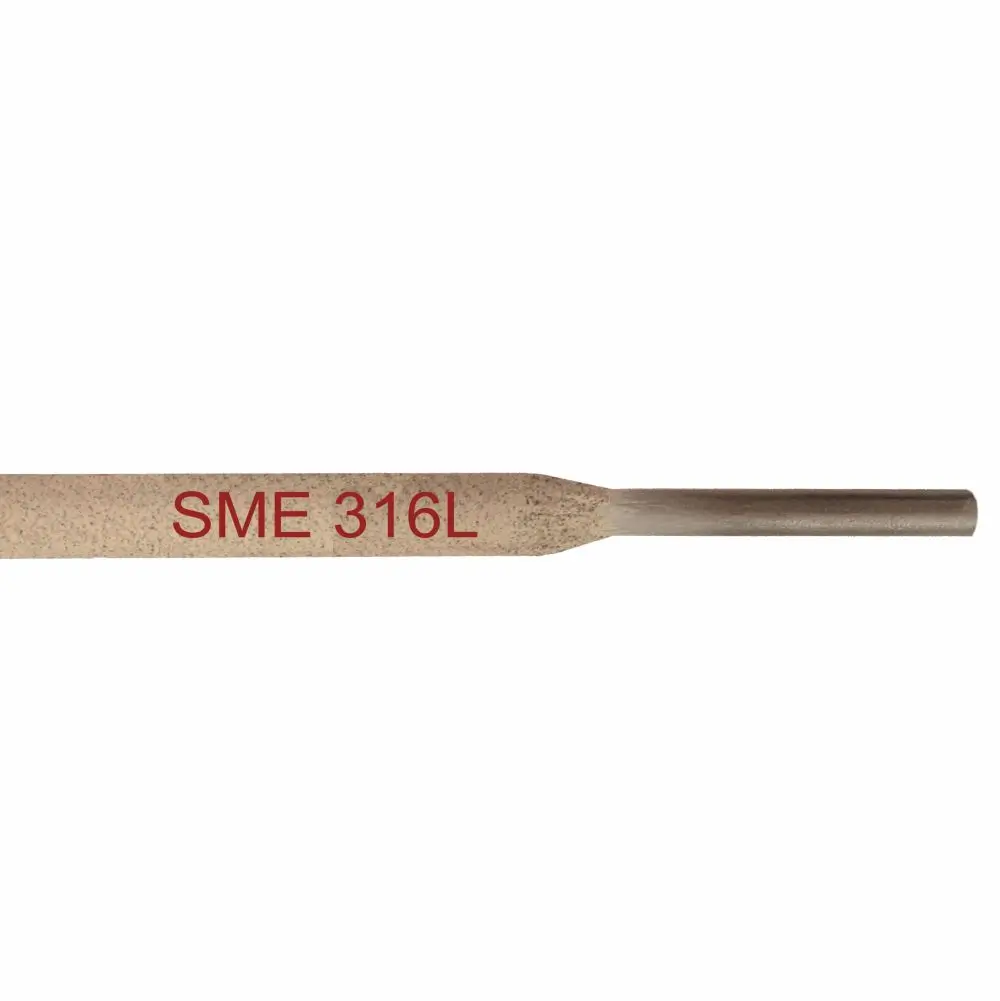

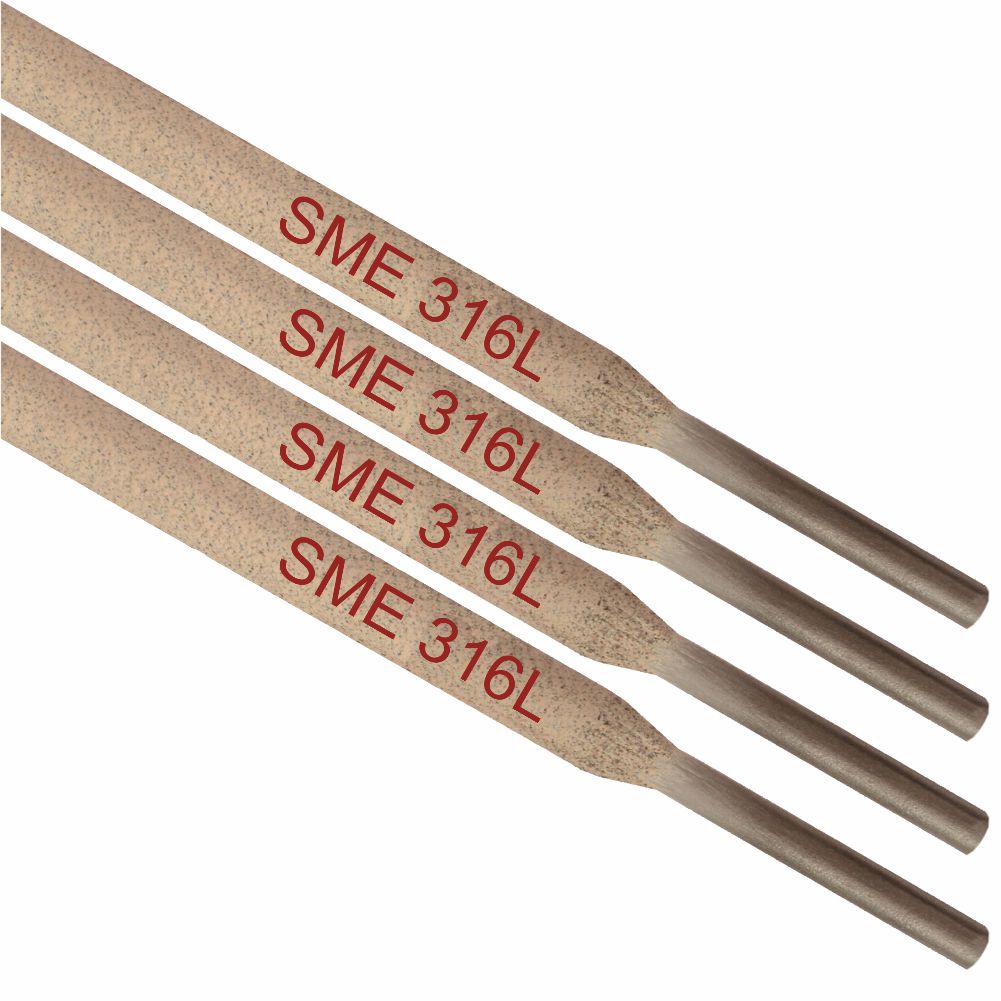

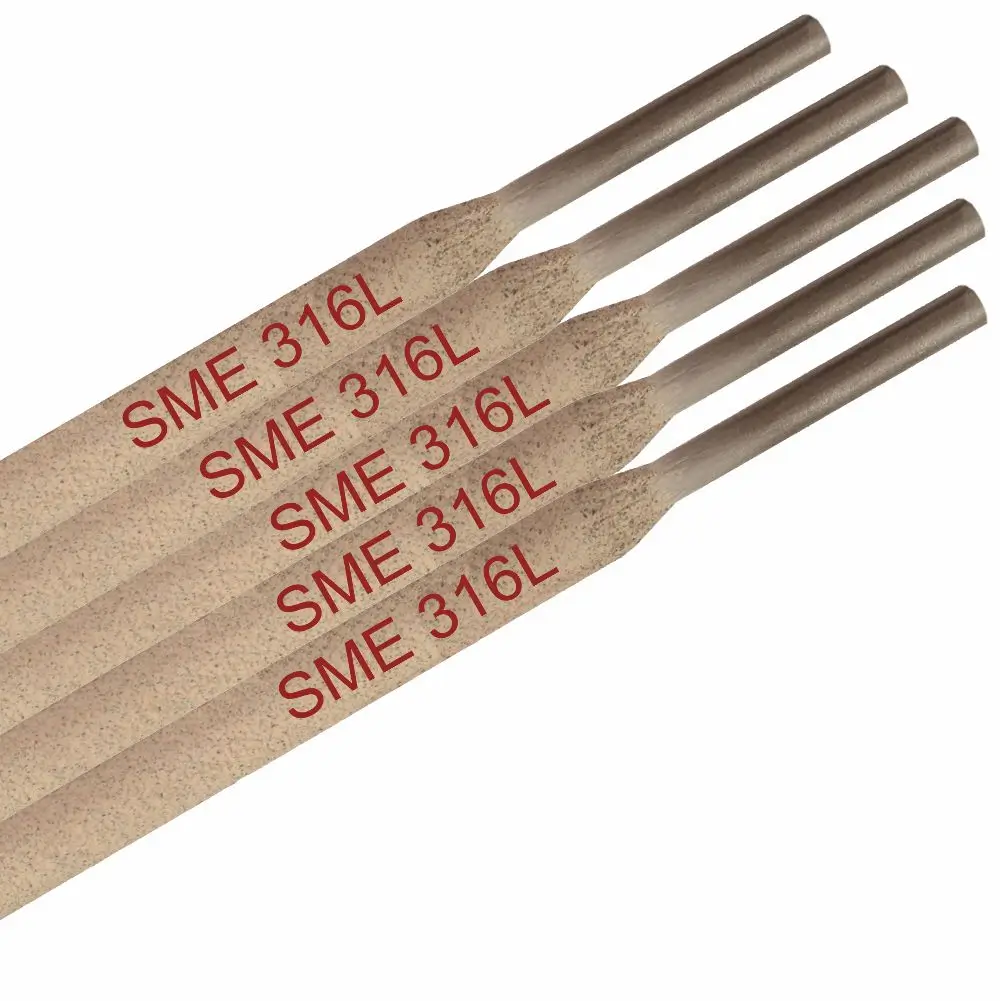

Senor SME 316L-16 an extra low Carbon, SS electrode with controlled Ferrite content of 3 to 8% for maximum resistance to cracking. It possesses properties similar to SME 316-16 except with a much lower carbon content which reduces susceptibility to sensitization during welding. Weld metal is resistant to Stress Corrosion cracking, Hot Cracking, Chemical corrosion at high temp. upto 850°C. The slag is easily controlled and does not interfere with the arc action. Weld beads are smooth, and of good appearance.
SME 316L-16 Welding Rod Uses/Applications
- Welding Stainless Steel types 316, 316-L and 318
- Stainless steel piping and vessels in oil and gas industry,
- For welding in refineries and chemical and petro-chemical plants.
- For welding of equipments in Chemical industries, Paper and Pulp industry, Paint and Dye industries
Welding Positions
F, H, V-up, OH
Re-drying Conditions
To obtain best results re dry the electrodes at 300 °C for 1 hour (Optionally available in vacuum-packed condition, re-drying not required in this packaging).
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Stainless Steel Electrodes
Related products
CONFORMANCE/CLASSIFICATION
| Conformances | Specification | Classification |
| AWS | AWS A/SFA 5.4 | E 316L-16 |
SME 316L-16 WELD COMPOSITION
|
C |
Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.04 max | 17 – 20 | 11 – 14.5 | 2-3 | 0.5 – 2.5 | 1.0 max | 0.04 max | 0.03 max |
0.75 max |
MECHANICAL PROPERTIES
Elongation Min: 30-40 %
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DC (+)
| Diameter | Current (Amps) |
| 2.5 mm | 50 – 75 |
| 3.2 mm | 80 – 100 |
| 4.0 mm | 120 – 150 |
| 5.0 mm | 170 – 190 |
Availability
Standard Size: 5.0, 4.0, 3.2 and 2.5 diameter.
