DETAILS
Weld deposits with high strength, toughness, and extreme crack resistance to all steels.
Features/Characteristics
Deposits are superior crack resistance, spray type metal transfer, joining steels of unknown compositions, machinable, built-up and overlay improved strength and ductility.

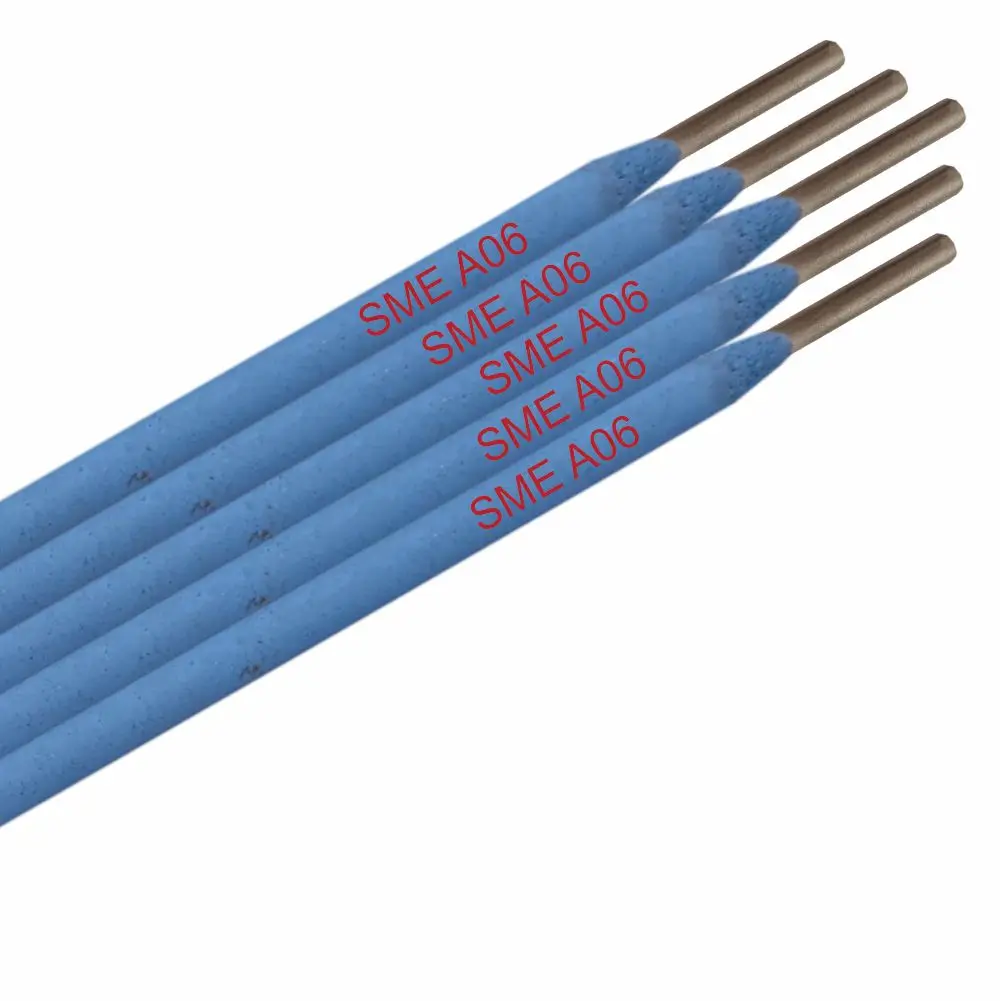

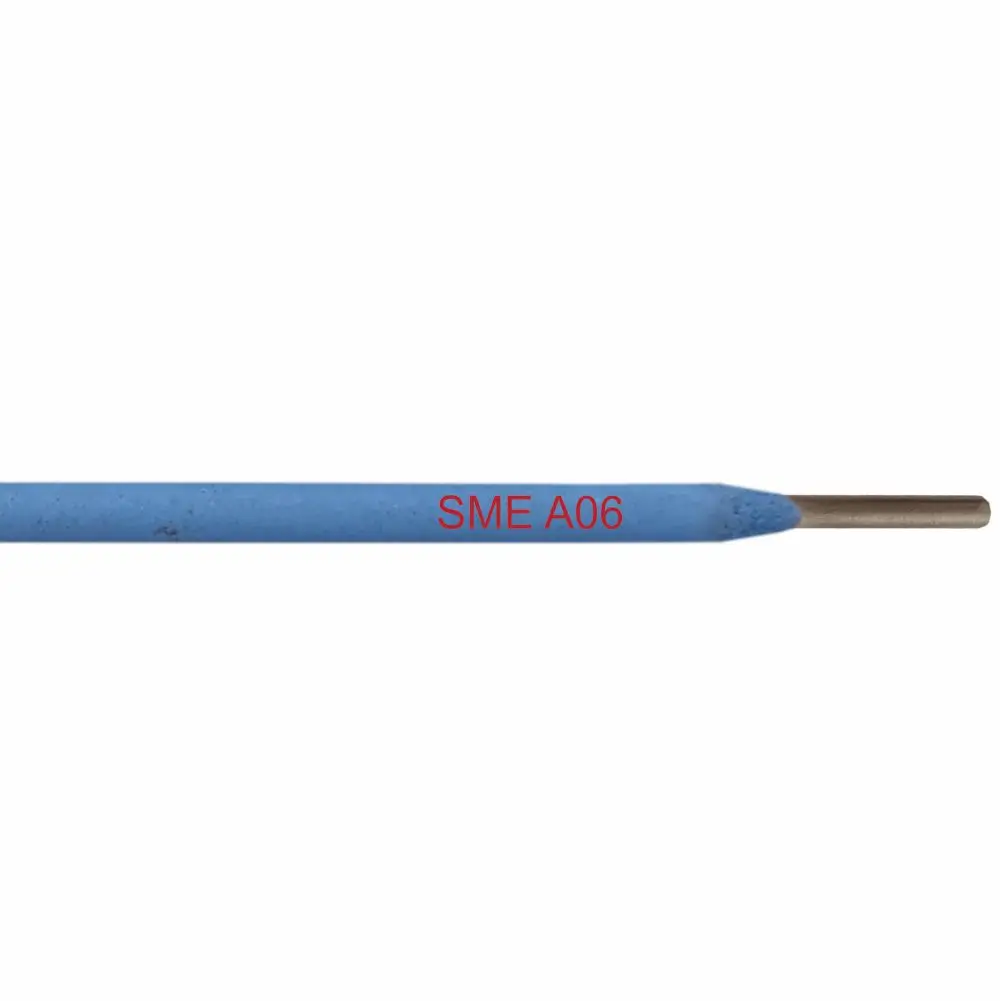

SME A06 Welding Rod Uses/Applications
Heavy machinery parts, earth moving equipment parts, automobile springs, trunnions of cement mills, parts subject to heat, corrosion, and impact. Joining and surfacing of high carbon, low, and high alloy steels. Also used for welding of dissimilar steels.
Welding Technique
Clean the weld area. Preheat high alloy and high carbon steel to about 200-250 °C followed by slow cooling after welding. Hold a short are and adopt a stringer bead technique. Hot peening is advisable on joints.
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Steel Welding Electrode
Related products
MECHANICAL PROPERTIES
Ultimate Tensile Strength: 750-850 MPa
Elongation: 20-25%
ALLOY BASIS
Cr, Mn, Si
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DCEP
|
Diameter
|
Current (Amps)
|
|---|---|
| 3.15 mm | 90-110 |
|
4.0 mm
|
130-160
|
|
5.0 mm
|
160-180
|
Availability
Standard Size: 5.0, 4.0, 3.15 in 350 mm length.
Packing: 2 kg.
