DETAILS

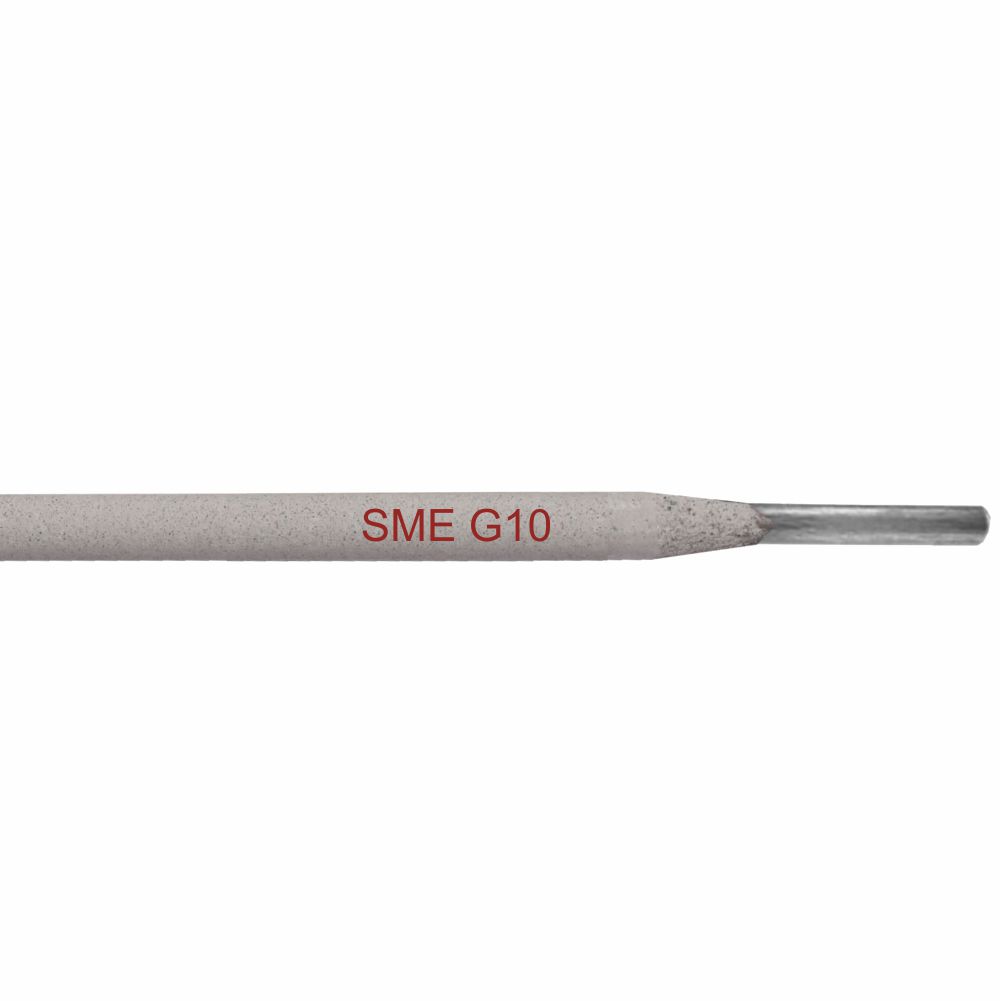

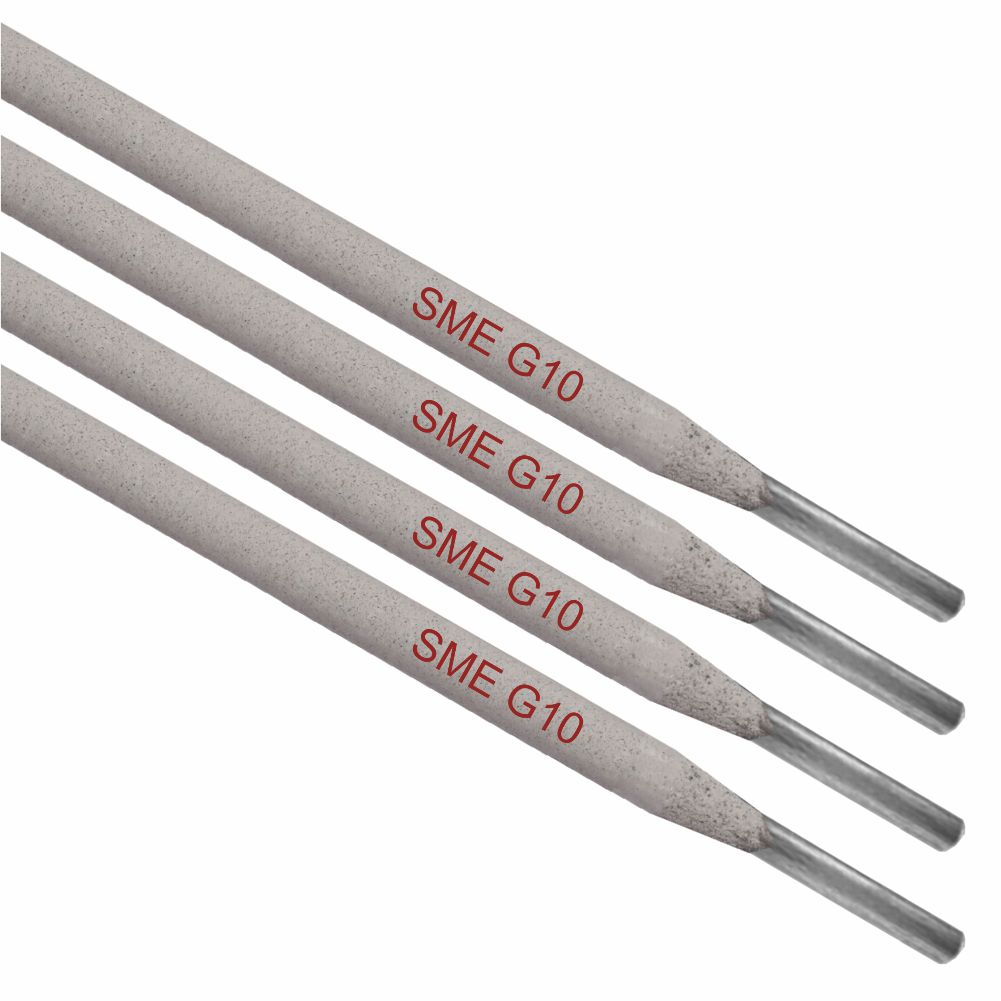

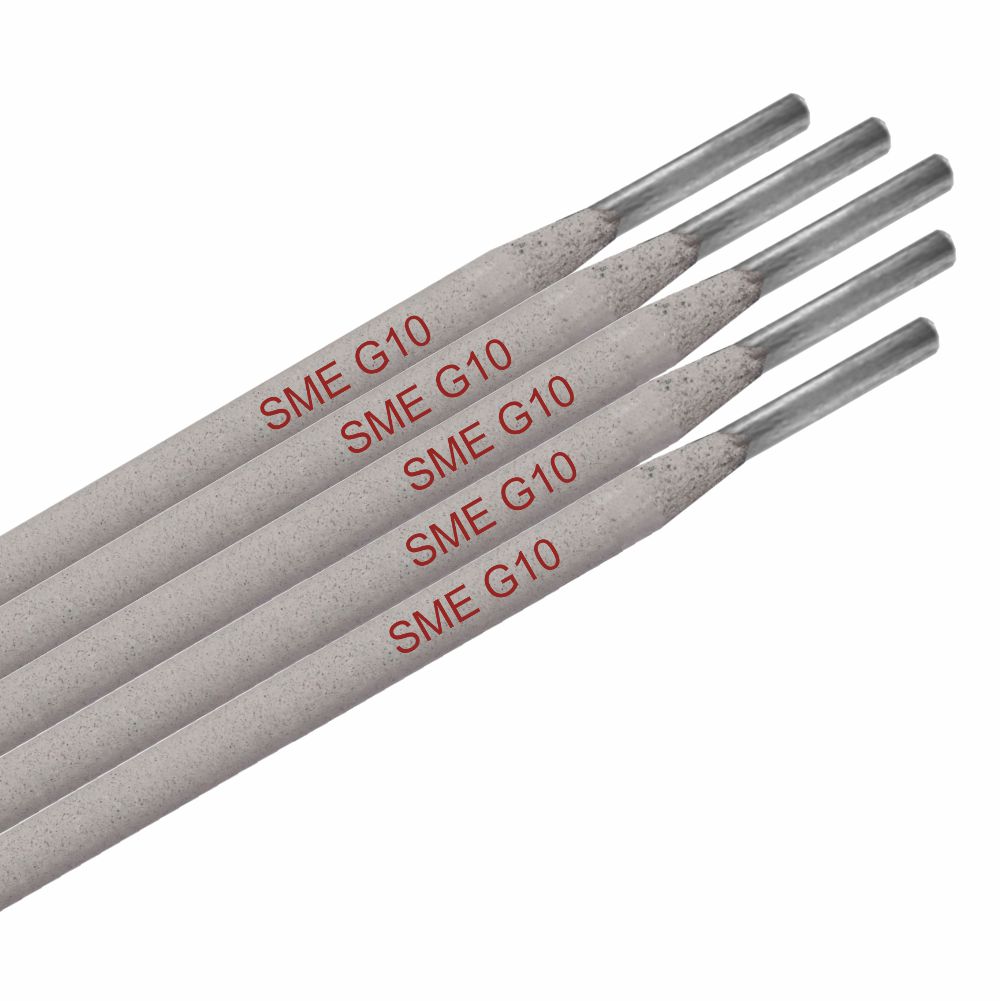

Electrode for tough and wear-resistant against friction
Features/Characteristics
The deposit is particularly resistant to mild impact and friction. Thick surfacing without intermediate layers possible. Basic coated, all position electrode
SME G10 Welding Rod Uses/Applications
Surfacing of parts subject to wear by friction and mild impact. Rims, carbon-alloyed rails, dies, striking tools, rolling surfaces, sliding surfaces subject to heavy wear, stampers, etc. also ideally suited for construction & mining machinery parts like drive sprockets, rollers, concrete mixer blades, pumps, conveyor, screws, pinions and girth gear. The right choice for providing buffer layers where friction, mild impact and abrasion occur together.
Welding Technique/Procedure
Clean the weld metal surface, Use a short arc holding electrodes at an angle of 60 degree to the horizontal and lay stringer beads. Weld 2-3 layers. Finish weld metal by machining to the required size. do not allow excessive heat build-up.
Welding Positions
All Positions
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Hardfacing Electrodes
Related products
MECHANICAL PROPERTIES
Hardness: 25 – 35 HRC
ALLOY BASIS
Cr, Mn
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DCEP
| Diameter | Current (Amps) |
| 3.15 mm | 90 – 120 |
| 4.0 mm | 120 – 160 |
| 5.0 mm | 160 – 200 |
Availability
Standard Size: 5.0, 4.0, and 3.2 in 350 / 450 mm length.

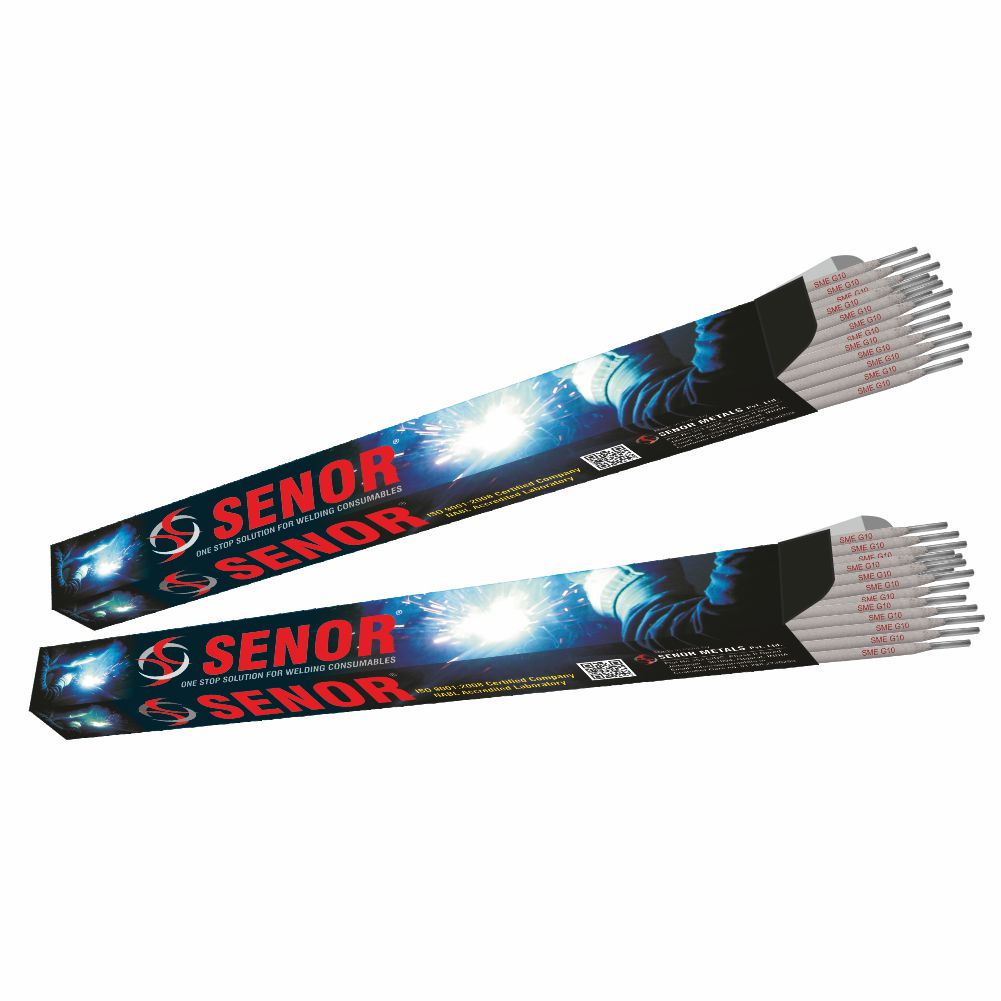

Packing: 5 kg.
