DETAILS
Electrode for tough and wear-resistant against friction
Features/Characteristics

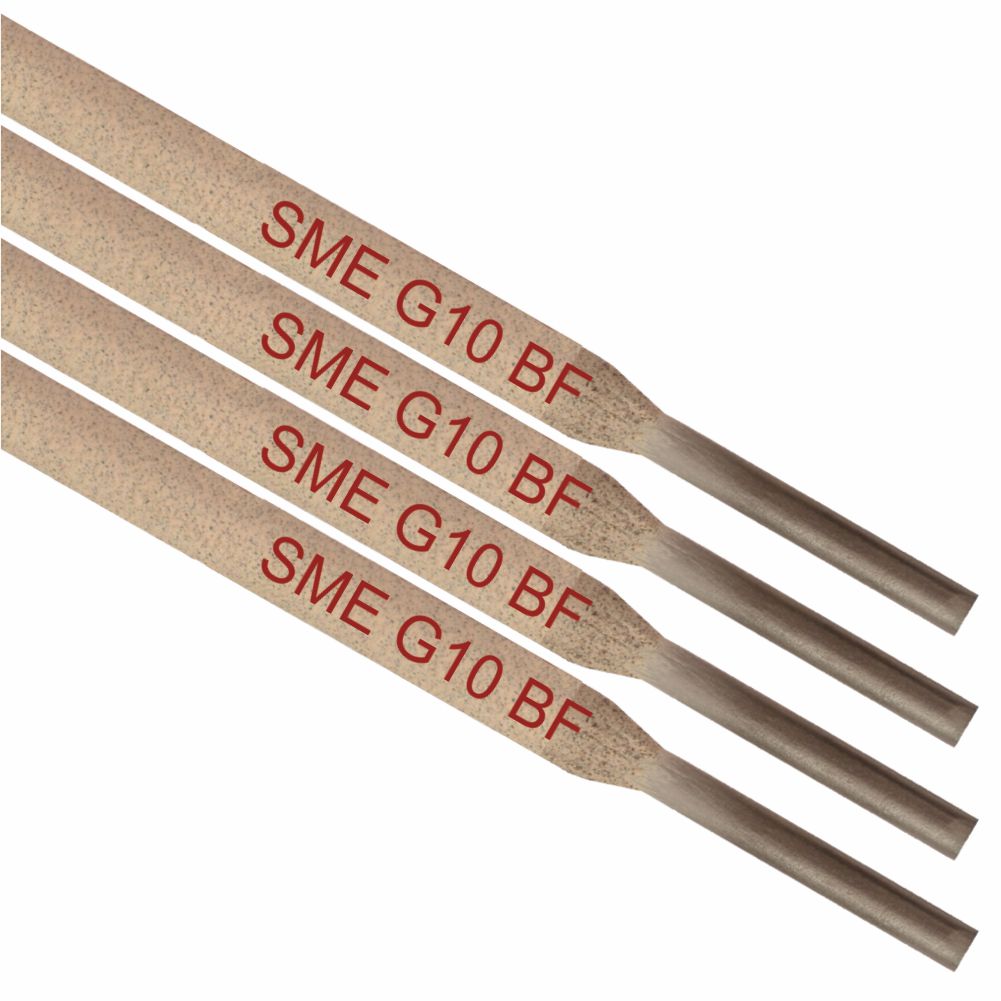

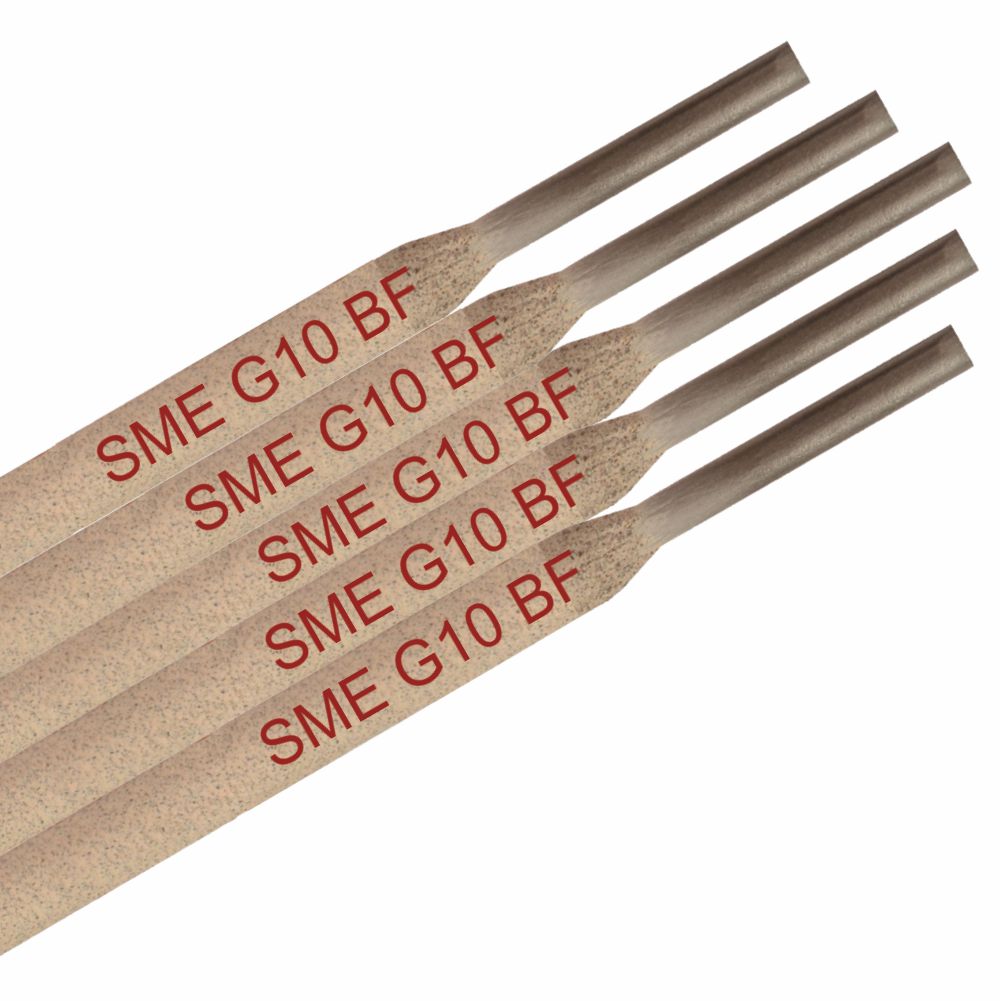

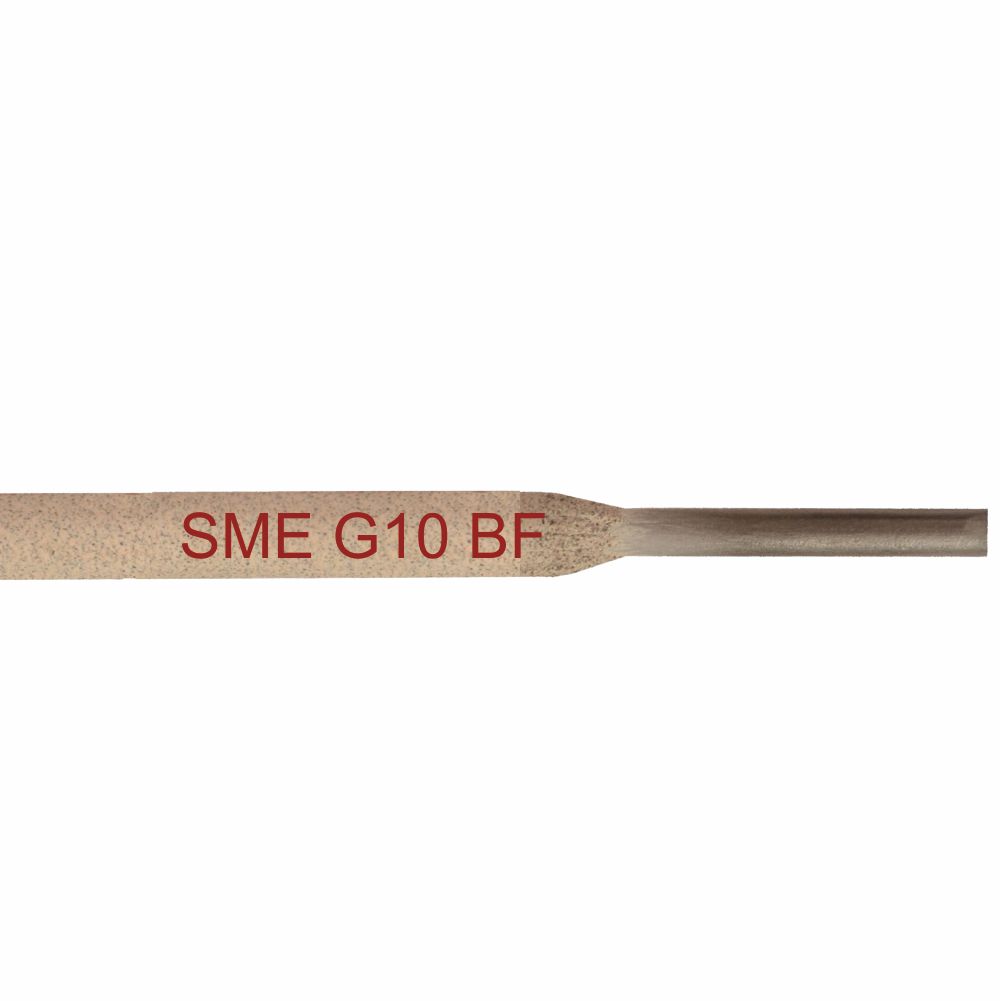

SME G 10 BF is an electrode for surfacing of Dies and Tools of Forging Industry and can be finished by machining with carbide tools.
This can resist deformation and wear at elevated temperatures.
Weld metal has very good slag detach ability, smooth and shining bead appearance. This is suitable for all position welding.
SME G10 BF Welding Rod Uses/Applications
1. Joining and buildup on all drop-forging tools such as punches, dies, inserts and others
2. Filling all types of die impressions or cavities of forging dies.
3. Repair of damaged or worn out profiles
4. Rebuilding of undersized dic blocks
Welding Technique/Procedure
1. Clean the surface are by wire brush. Remove cracked metal, sharp corners and edges.
2. Preheat the job to 250-3500C and maintain inter-pass temperature below 200 oC.
3. Chip Slag between passess.
4. Post heat the job to 450 oC and cool slowly to room temperature.
Welding Positions
All Positions
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Hardfacing Electrodes
Related products
MECHANICAL PROPERTIES
Hardness: 38-42 RC
ALLOY BASIS
Mn, Cr, Ni
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DCEP
| Diameter | Current (Amps) |
| 3.2 x 350 | 90 – 120 |
| 4.0 x 350 | 140 – 160 |
| 5.0 x 350 | 160 – 190 |
Availability
Standard Size: 5.0, 4.0, 3.2 and 2.5 in 350 / 450 mm length.

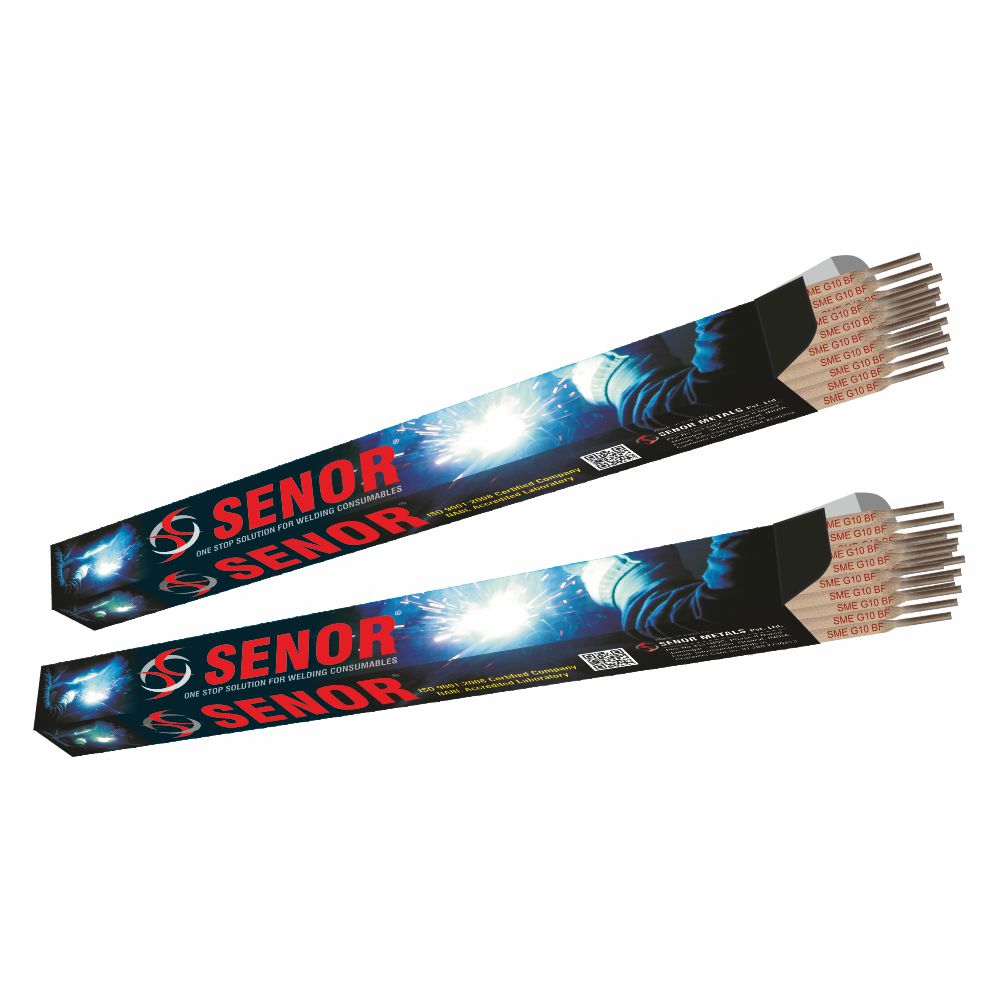

Packing: 5 kg.
