DETAILS
Electrode for tough and wear-resistant against friction
Features/Characteristics
SME G13 enhances parts life against impact and abrasion. Deposits are work harden and resistance to cracking and deformation.
SME G13 Welding Rod Uses/Applications
1. It is suitable for joining austenitic manganese steels and hardfacing of parts subject to impact and abrasion.
2. Crushing equipment parts like jaws, crushing mantles hammers & excavator teeth.
3. Rail road trucks and parts subject to heavy impact and stresses
Welding Technique/Procedure
- Clean the affected area properly.
- Use the damaged material by gouging with SME 100.
- Do not preheat manganese steel.
- Maintain a short to medium arc length.
- Interpass temperature should be kept below 150°C using staggered or skip welding techniques
- Peeing while hot helps shape the deposit and reduces stresses.
- Cool slowly
Welding Positions
All Positions
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Hardfacing Electrodes
Related products
MECHANICAL PROPERTIES
Hardness: 40-45RC
ALLOY BASIS
Mn, Ni, Cr
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC, DCEP
| Diameter | Current (Amps) |
| 2.5 x 350 | 35 – 70 |
| 3.2 x 350 | 95– 130 |
| 4.0 x 350 | 120 – 170 |
| 5.0 x 350 | 160 – 210 |
Availability
Standard Size: 5.0, 4.0, 3.2 and 2.5 in 350 / 450 mm length.

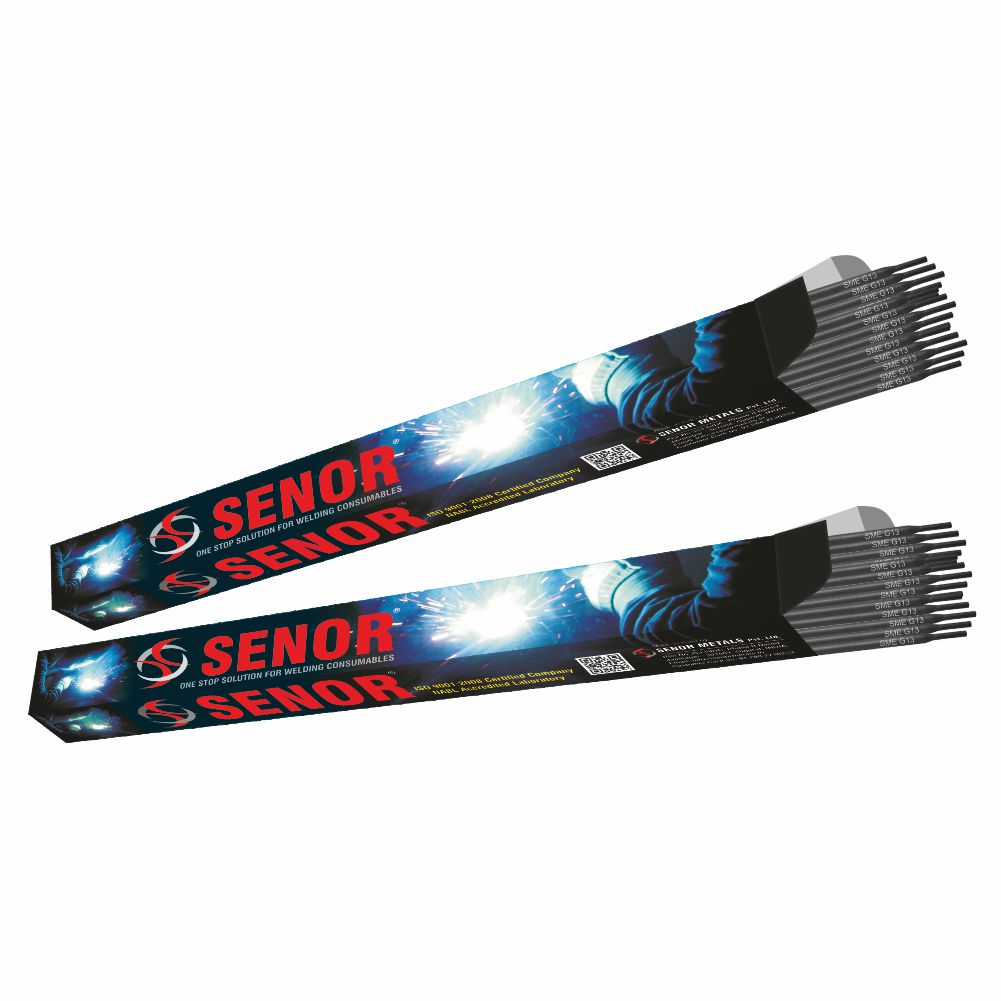

Packing: 5 kg.
