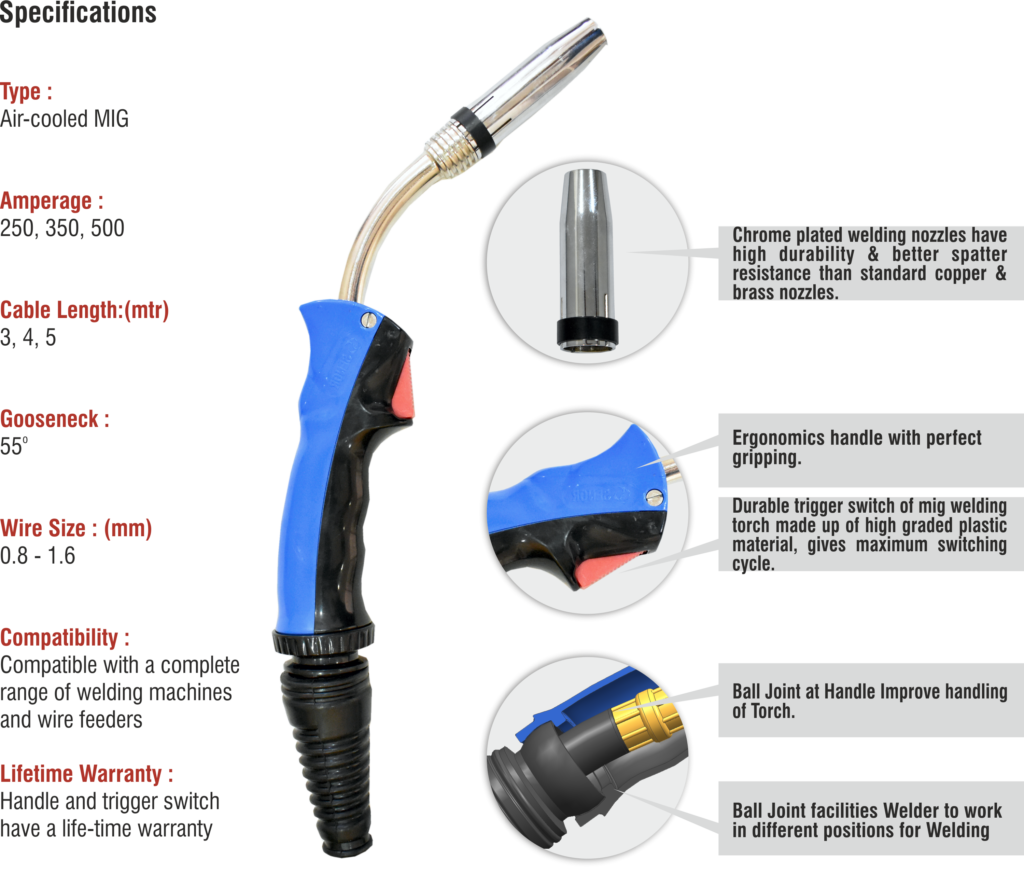

340A CO2 300A mixed gas EN60974-7 @ 60% duty cycle. 0.8 to 1.6mm wires

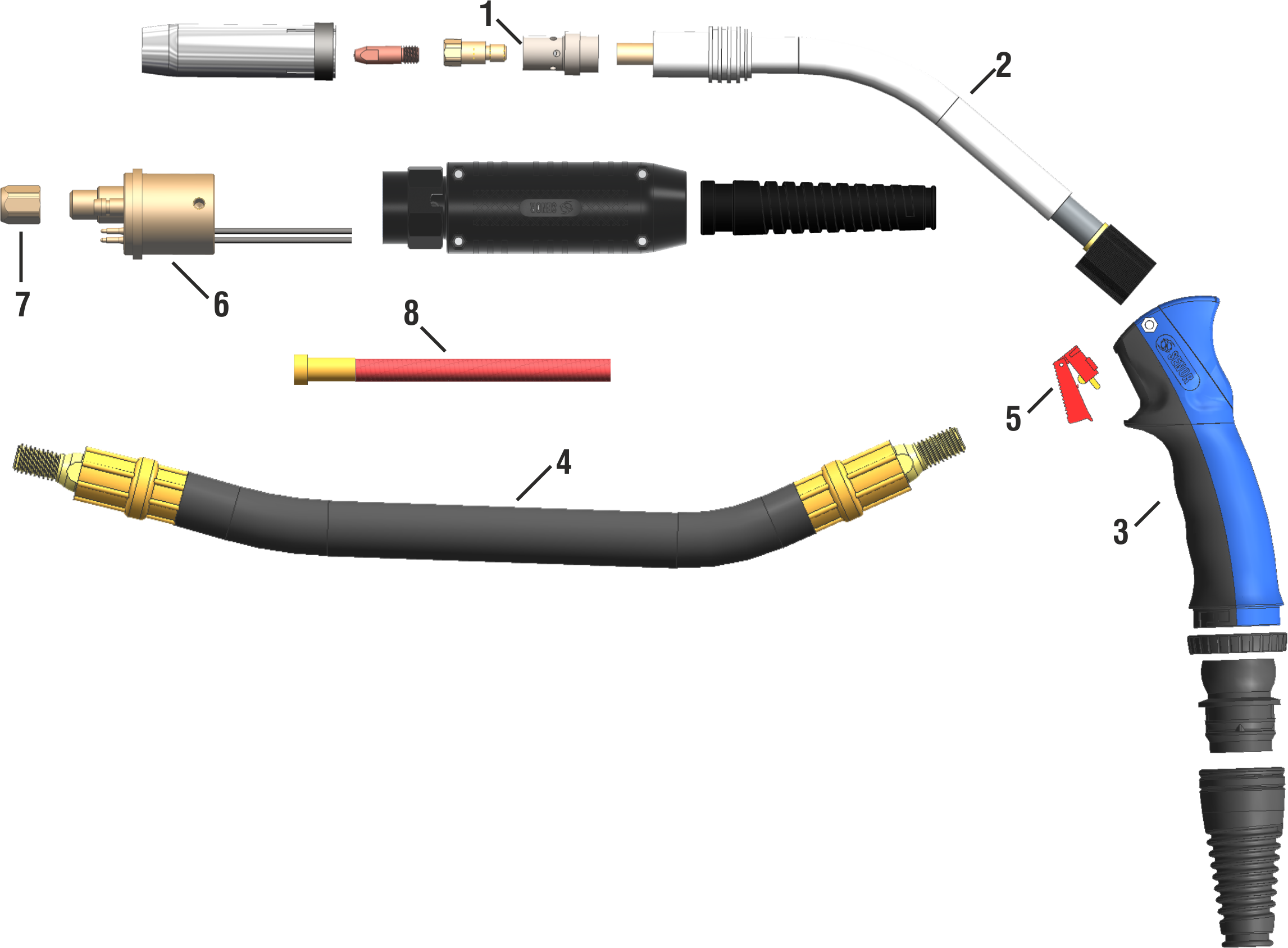

Sr. No | Code | Description |
01 | WAH0000703 | Difusser Ceramic 30.5 |
02 | WAA2771005 | Swan Neck |
03 | WAP0000730 | Handle |
04 | WAH0000718 | Cable 25 mm2 |
Sr. No | Code | Description |
05 | WAA2771011 | Trigger Switch |
06 | WAA2771012 | Euro Connector |
07 | WAB0000733 | Liner Holding Cap Nut |
08 | WAA2771017 | Liner Assembly |
Liner Assembly
Steel liner Blue | Steel Liner Red | Steel Liner Yellow | ||
Length | Meter | 3, 4, 5 | 3, 4, 5 | 3, 4, 5 |
Wire Dia | mm | 0.6 - 0.8 | 1.0 - 1.2 | 1.2 - 1.6 |
