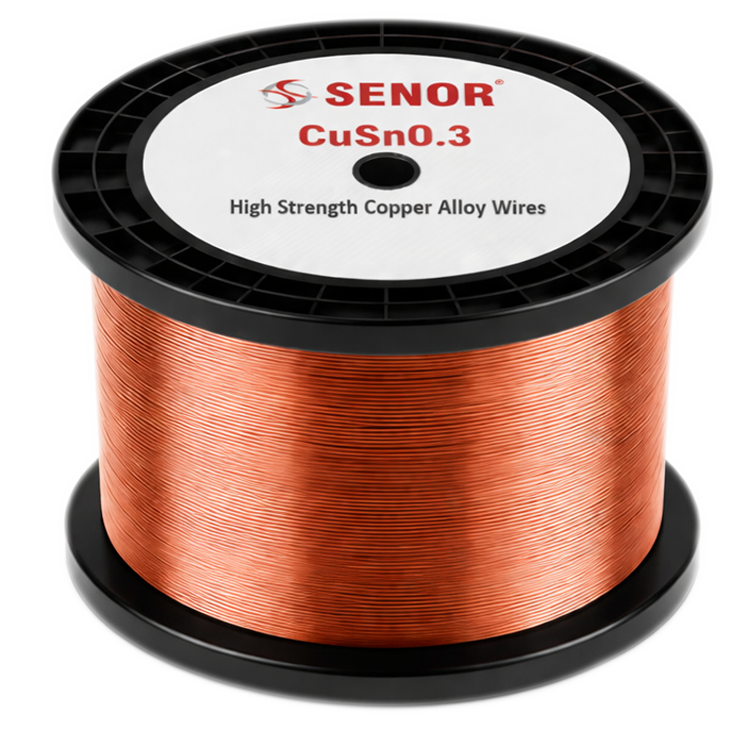

Senor CuSn0.3 Copper Alloy Wire :Designed for Modern Electrical Systems
Gas Saver :
Higher Strength Than Pure Copper. Excellent Conductivity. Superior Thermal Stability.
Developed for modern cable and wire manufacturers, Senor CuSn0.3 combines the electrical performance of copper with enhanced mechanical strength, improved fatigue resistance, and superior high-temperature reliability for demanding electrical applications.
What is CuSn0.3 Copper Alloy ?
CuSn0.3 is a low-tin copper alloy containing approximately 0.3% tin with the balance copper. It is increasingly used by cable and wire manufacturers where improved mechanical and thermal performance is required without significantly compromising electrical conductivity.
Compared to pure copper, CuSn0.3 offers:
- Higher tensile strength
- Better softening resistance
- Improved fatigue life
- Enhanced creep resistance
- Superior performance at elevated temperatures
Why Manufacturers Choose CuSn0.3 Instead of Pure Copper
Pure copper offers the highest electrical conductivity, but its mechanical properties can become limiting in demanding applications.
Challenges with pure copper include:
- Lower tensile strength
- Lower creep resistance
- Lower fatigue resistance
- Faster softening at elevated temperatures
The addition of a small amount of tin significantly improves these mechanical properties while maintaining high electrical conductivity, making CuSn0.3 an ideal solution for modern cable designs.
Designed for the Demands of Modern Cable Systems
Today’s electrical and cable industries face increasing performance requirements driven by:
- Smaller conductor sizes
- Higher operating temperatures
- Increased vibration and mechanical stress
- Weight reduction initiativesRapid growth of electric vehicle (EV) applications
- Rapid growth of electric vehicle (EV) applications
These trends have accelerated the adoption of high-strength copper alloys such as CuSn0.3.
The Senor CuSn0.3 Advantage
Senor CuSn0.3 provides an excellent balance of:
- Electrical conductivity
- Mechanical strength
- Processability
- Cost-effectiveness
This balance makes it an attractive alternative to pure copper for a wide range of electrical and electronic applications.
Enhanced Recrystallization Resistance
A key advantage of CuSn0.3 is its improved recrystallization resistance.
The addition of tin enables the alloy to retain its mechanical strength and dimensional stability at elevated temperatures significantly better than pure copper. This enhanced thermal stability is one of the alloy’s most important industrial advantages and makes it suitable for demanding applications where long-term performance is critical.
Performance Comparison
Property | Pure Copper | Senor CuSn0.3 |
Electrical Conductivity | Higher | Slightly Lower |
Tensile Strength | Lower | Higher |
Softening Resistance | Lower | Better |
Fatigue Resistance | Moderate | Better |
High-Temperature Performance | Moderate | Better |
Creep Resistance | Lower | Better |

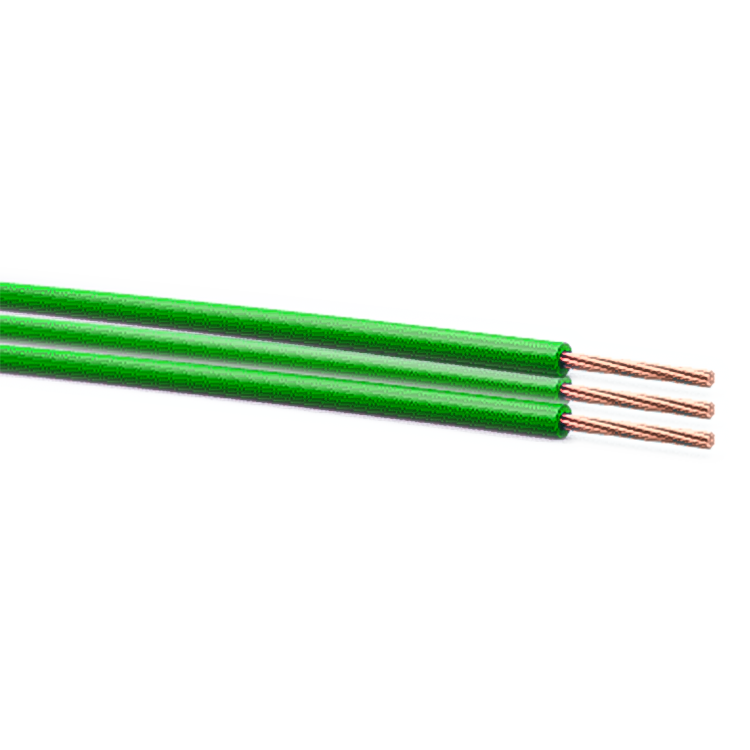

Applications of Senor CuSn0.3 Wire :Trusted by Manufacturers Across Demanding Electrical Industries
- Automotive Wiring Harnesses
- Electric Vehicle (EV) Cables
- Railway and Metro Cables
- High-Temperature Appliance Wiring
- Electronic and Communication Cables
- Aerospace and Defence Wiring

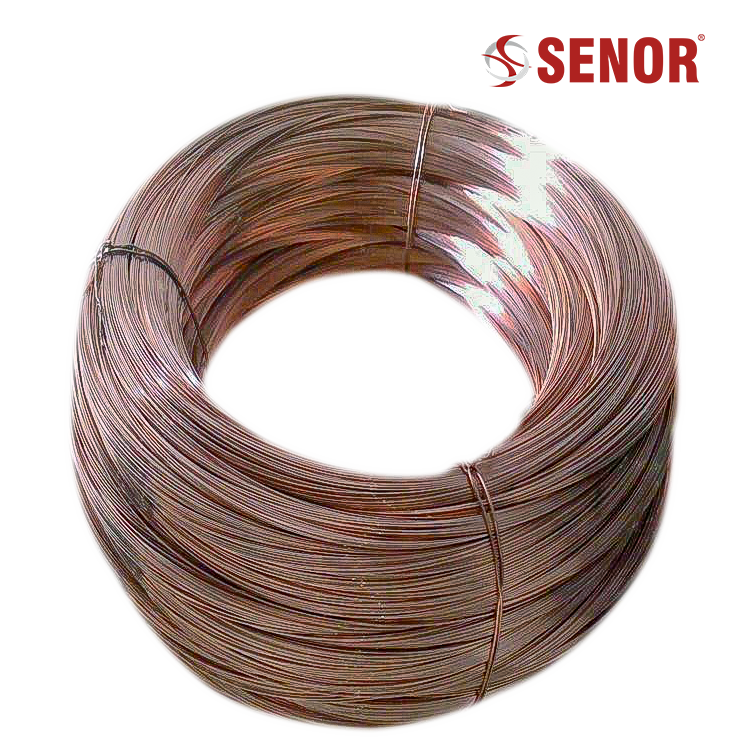

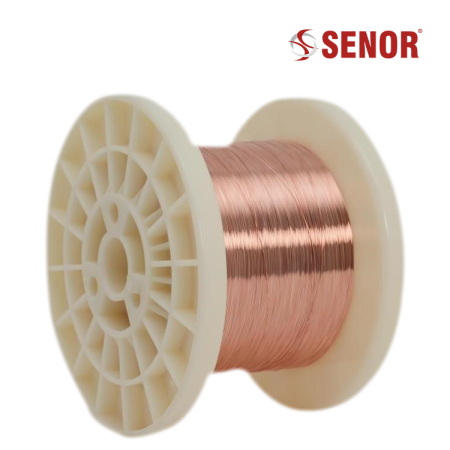

Specifications
Senor CuSn0.3 Wire for Demanding Cable & Electrical Applications
Diameter Range: 0.10 mm to 18.00 mm
Mechanical Properties:
- Soft Wire: Up to 250 MPa
- Hard Wire: Up to 500 MPa
Key Features:
- High electrical conductivity
- Consistent metallurgical quality
- Excellent drawability and processability
- Enhanced strength and thermal stability
- Backed by over 30 years of copper alloy manufacturing expertise
Detailed specifications available upon request.
Custom diameters, tempers, and special constructions can be supplied to meet specific application requirements.
