DETAILS
Features/Characteristics
Senor SM 1100 is highly resistant to chemical attack and weathering and has good crack resistance. It has highest electrical and thermal conductivity. It has excellent fluidity. Deposit is soft and ductile.
Mechanical properties of SM 1100
Ultimate Tensile Strength : 6-9 Kgf/mm2
Yield Strength : 4-6 Kgf/mm2
Elongation (L = D) : 42%
Melting Point : 643 – 658 °C
Resistance to Corrosion : A (Gen) A (SCC)
Anodize Color : Light Golden
Electrical Conductivity : 59% IASC (-H12)
Density : 2.71 gms/cc
Shielding Gas
100% Argon, Argon/Helium Mixtures, Flow Rate: 30 – 50 CFH (14.2 – 23.6 L/Min)
Flame Adjustment
1-1 ½ X Carburizing flame to be used for brazing use flux.
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Aluminium Alloy Filler Metal
Related products
CONFORMANCE/CLASSIFICATION
| Conformances | Specification | Classification |
| AWS | AWS SFA 5.10 | ER 1100 |
SM 1100 WIRE CHEMICAL COMPOSITION (%)
| Si + Fe | Al | Zn | Cu | Mn | Be | Other Each | Other Total |
| 0.95 | 99 | 0.10 | 0.05-0.20 | 0.05 | 0.0003 | 0.05 | 0.15 |
SM 1100 Aluminium Welding Wire Uses/Applications
- Suitable for electrical and chemical application utilizing little or no alloying elements, 1000 series
- Heat Exchangers
- Metalizing
- Tank, Brackets, Bus Bodies.
Availability

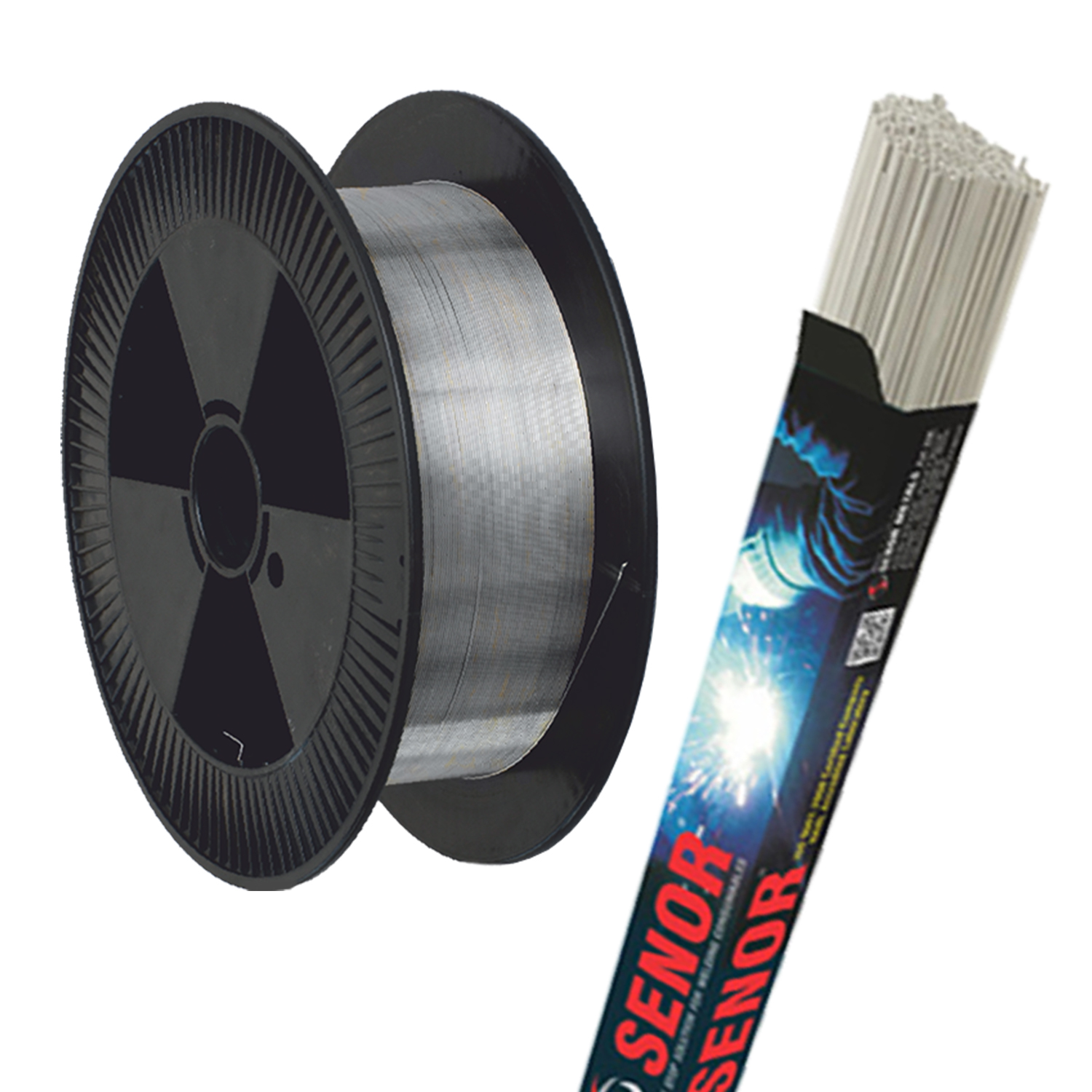

Standard Size: 1.6, 2.0, 2.5, 3.2 & 4.0 mm dia in 500 / 1000 mm length

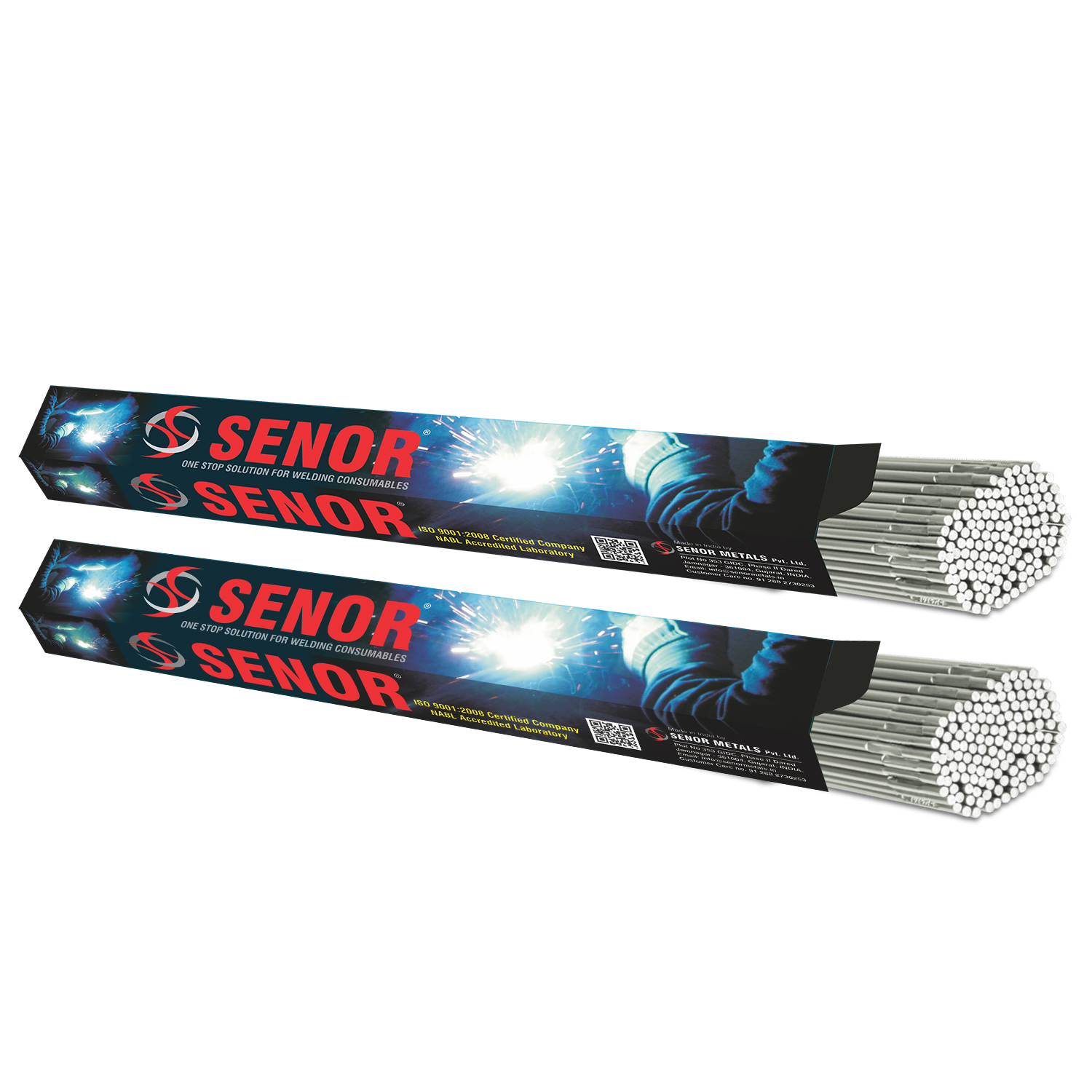

Packing: 500 mm in 2 kg. & 1000 mm in 5 kg. for TIG welding

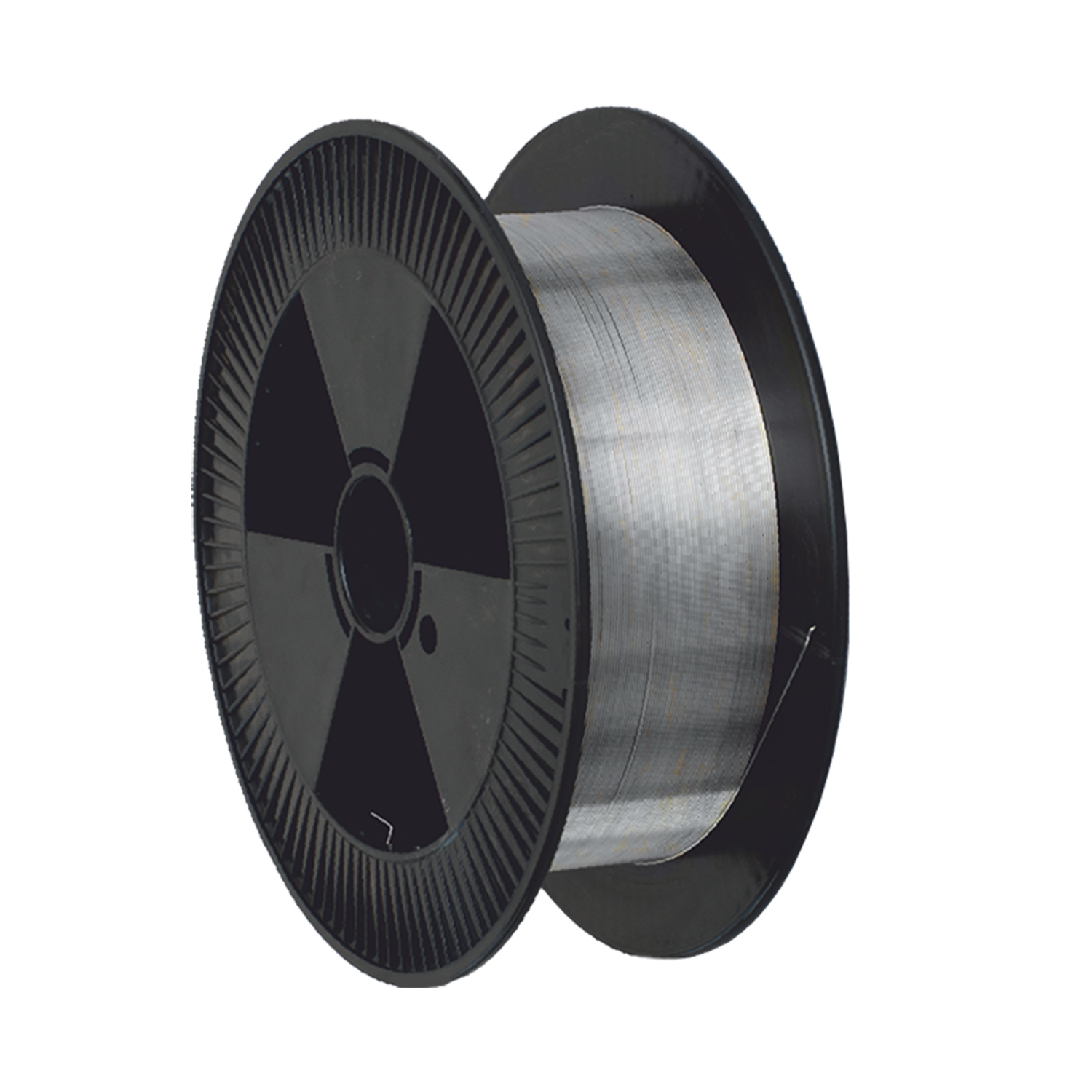

Spools: 0.8, 1.2 & 1.6 mm dia in 6.5 kg spool for MIG welding
