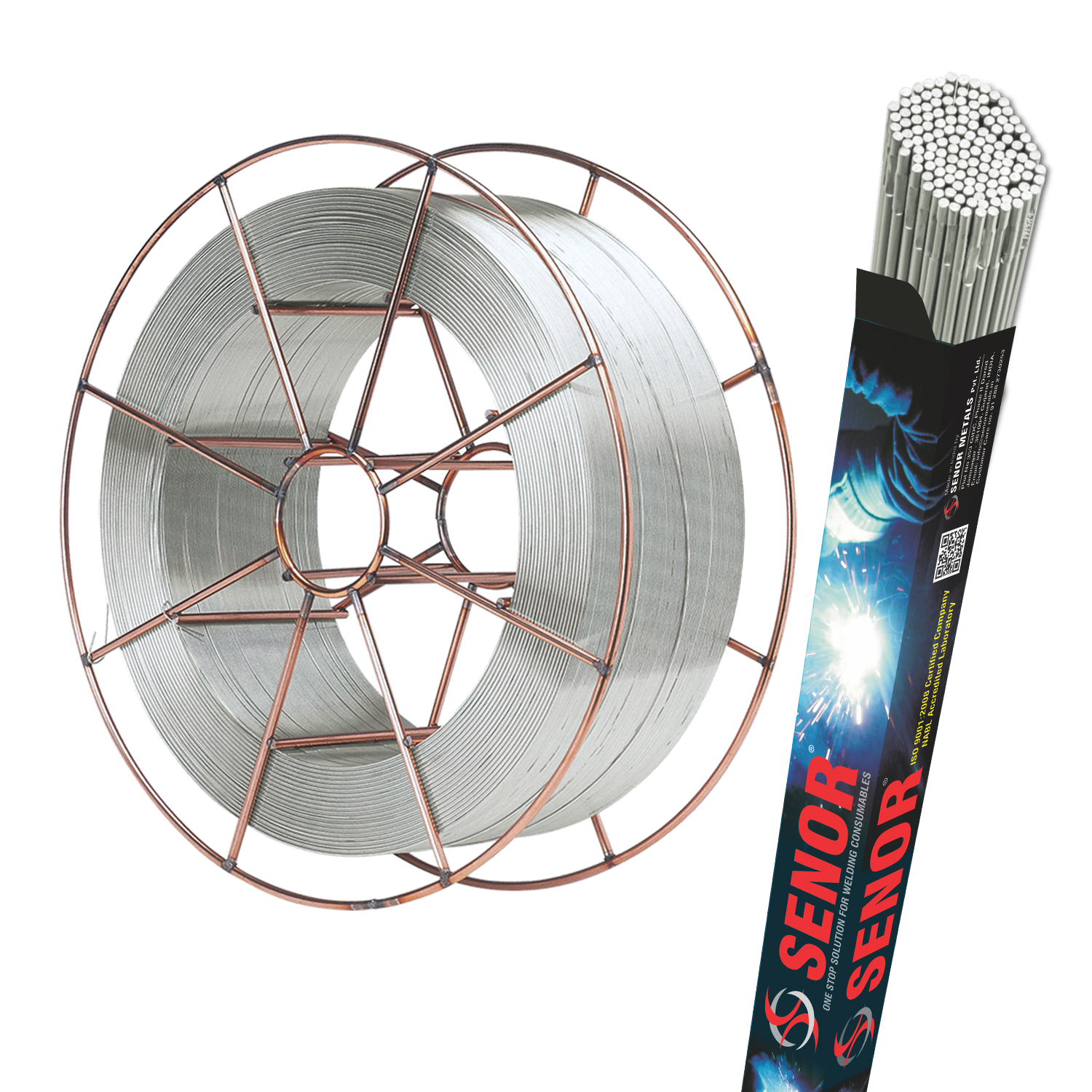

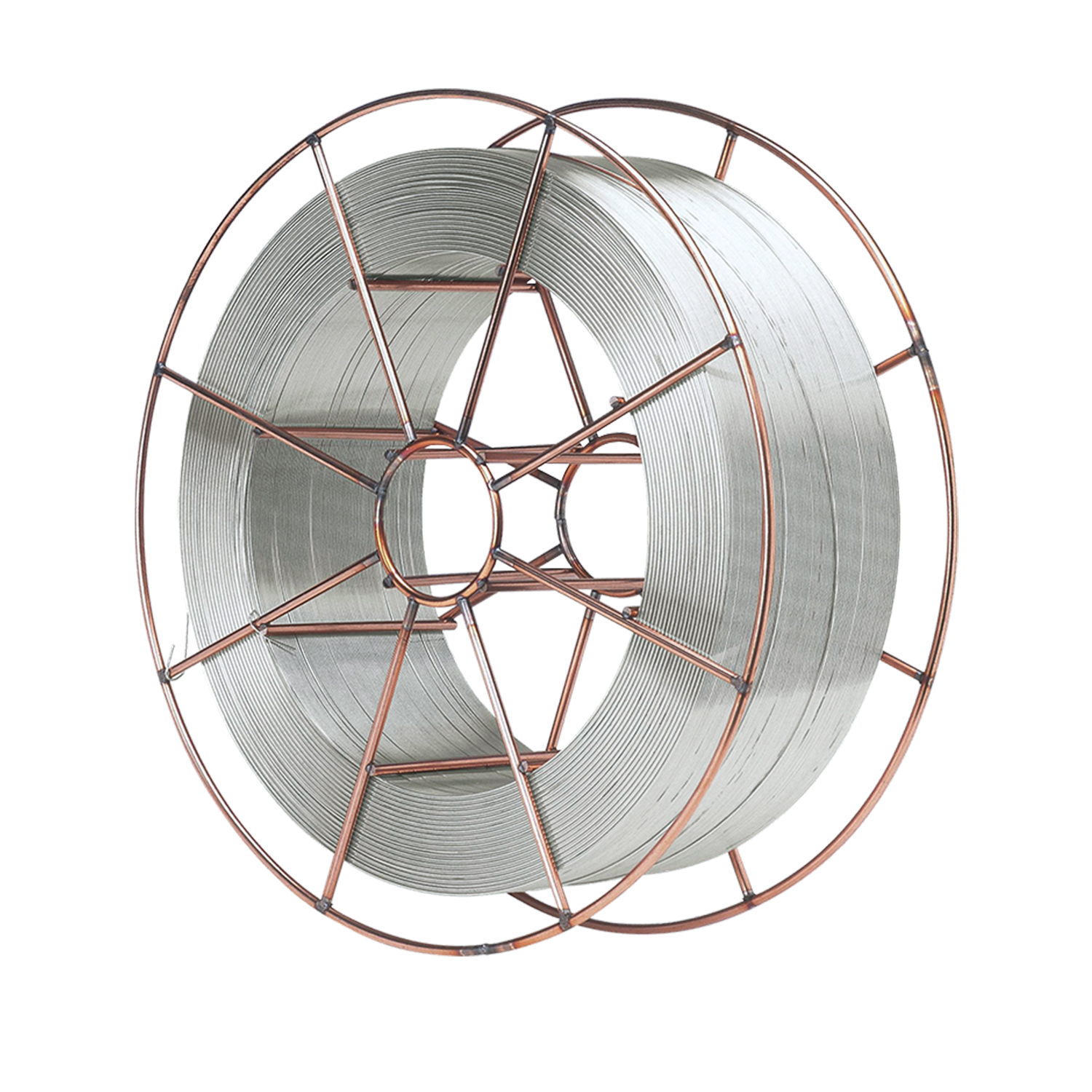

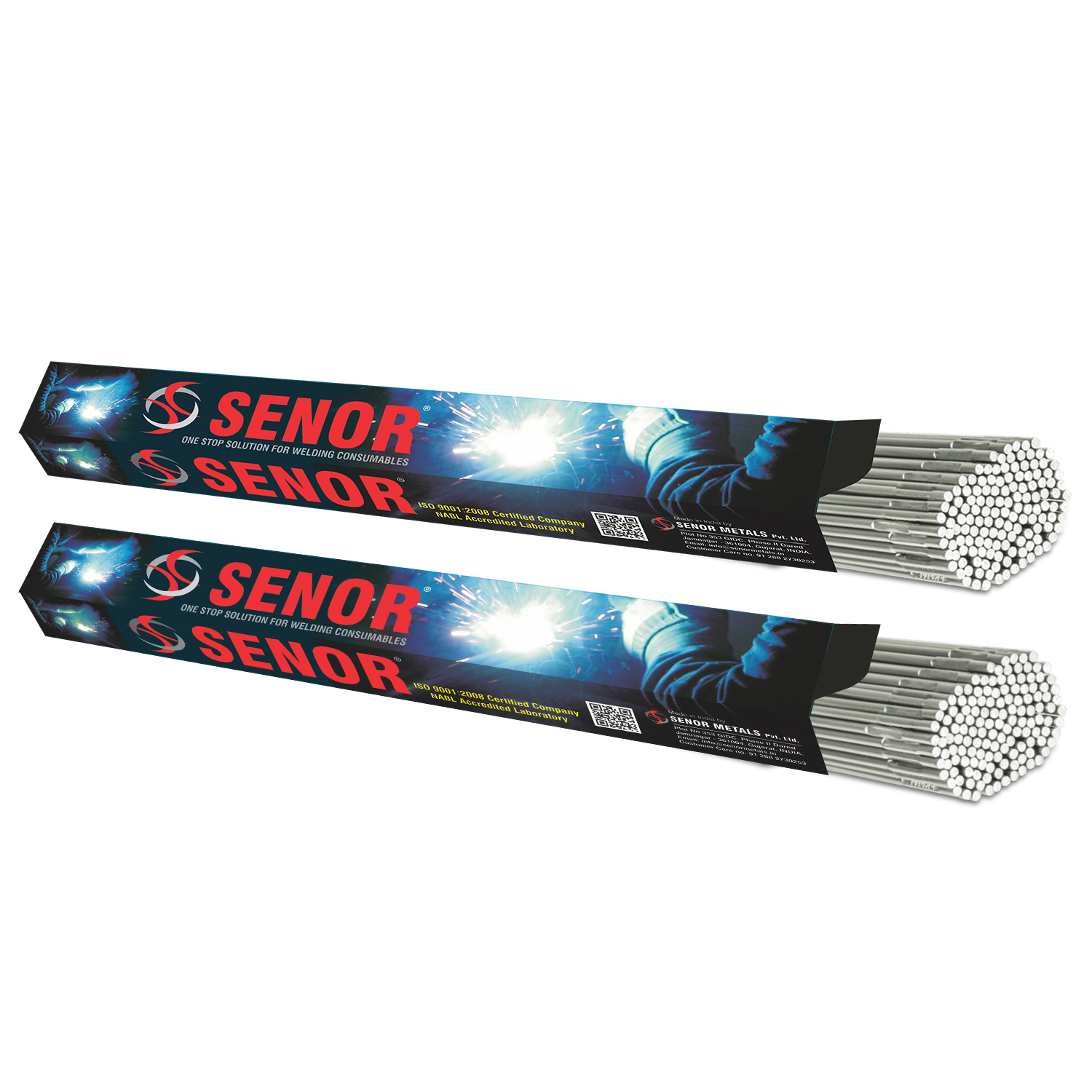

SM ER 4043

DETAILS

Features/Characteristics

SM ER 4043 is a 5% silicon, all position aluminium weld wire used to weld heat treatable alloys such as the 6XXX base metals cast alloys. It can be found in many common welding applications, such as bicycles, trucks, trailers, and automotive parts and equipment. Silicon with this alloy gives improved wetting action yielding a less crack sensitive bright weld bead. The silicon gives improved wetting action and lowers the crack sensitivity. It is preferred by most welders because it “wets and flows better” and it also brighter looking GMAW welds. This filler metal is not well suited for welding aluminium-magnesium alloys (5XXX alloys).

Mechanical properties of SM ER4043

Ultimate Tensile Strength        : 165 MPa

Welding Positions

All Position

Disclaimers

Service Information

Documentation

• Safety Data Sheet
• Certificates of Conformance

More Aluminium Alloy Filler Metal

CONFORMANCE/CLASSIFICATION

SM ER4043 WELD METAL CHEMISTRY (%)

SM ER4043 Aluminium Welding Wire Uses/Applications

1. Can be used to weld the Base materials (ASTM) 3003, 6005 or 6061 aluminium alloys.
2. SM ER4043 can be used to weld various grades of aluminium.
3. It can also be used such as boats, ships, bicycles, trucks, pressure vessels, and automotive parts and equipment.
4. SM ER4043 wires are recurrently used in many industries, including chemical and petrochemical processing, oil and gas, power generation, pharmaceutical, pulp, paper production, and waste water treatment.

TYPICAL OPERATING PROCEDURES/WELDING CURRENT (AC for GTAW) (DCEP for GMAW)
