Features/Characteristics
SM ER4047 is commonly used not only in MIG or TIG application, but also as a general purpose brazing alloys providing a free-flowing filler metal and good corrosion resistance. ER4047 is recommended for welding or brazing aluminium alloys 3003, 6005, 6053, 6061, 6951, 7005 and cast alloys 710.0 and 711.0. ER4047 has an approximate melting range of 1070 – 1080 and the post anodizing colour tint is greyish-black. ER4047 High Silicon content, good fluidity, and reducing the hot cracking tendency to the minimum, increasing the shear strength of the weld.
Mechanical properties of SM ER4047
Ultimate Tensile Strength : 170 MPa
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Aluminium Alloy Filler Metal
Related products
CONFORMANCE/CLASSIFICATION
| Conformances | Specification | Classification |
| AWS | SFA 5.10 | ER 4047 |
SM ER4047 WELD METAL CHEMISTRY (%)
| Si | Fe | Cu | Mn | Mg | Zn | Al | Be | Each | Other |
| 11.0 -13.0 | 0.8 max | 0.30 max | 0.15 max | 0.10 max | 0.20 max | Rem. | 0.0003 max | 0.05 | 0.15 |
SM ER4047 Aluminium Welding Wire Uses/Applications
- Can be used to weld the Base materials (ASTM) 3003, 6005, 6053, 6061, 6951, 7005 aluminium alloys and cast alloys 710.0 and 711.0.
- SM ER4047 can be used to weld various grades of aluminium.
- It can also be used such as boats, ships, bicycles, trucks, pressure vessels, and automotive parts and equipment.
- SM ER4047 wires are recurrently used in many industries, including chemical and petrochemical processing, oil and gas, power generation, pharmaceutical, pulp, paper production, and waste water treatment.
TYPICAL OPERATING PROCEDURES/WELDING CURRENT (AC for GTAW) (DCEP for GMAW)
| Diameter | Current (Amps) |
| 1.60 mm | 60 – 100 |
| 2.40 mm | 130 – 180 |
| 3.20 mm | 160 – 200 |
| 4.00 mm | 180 – 240 |

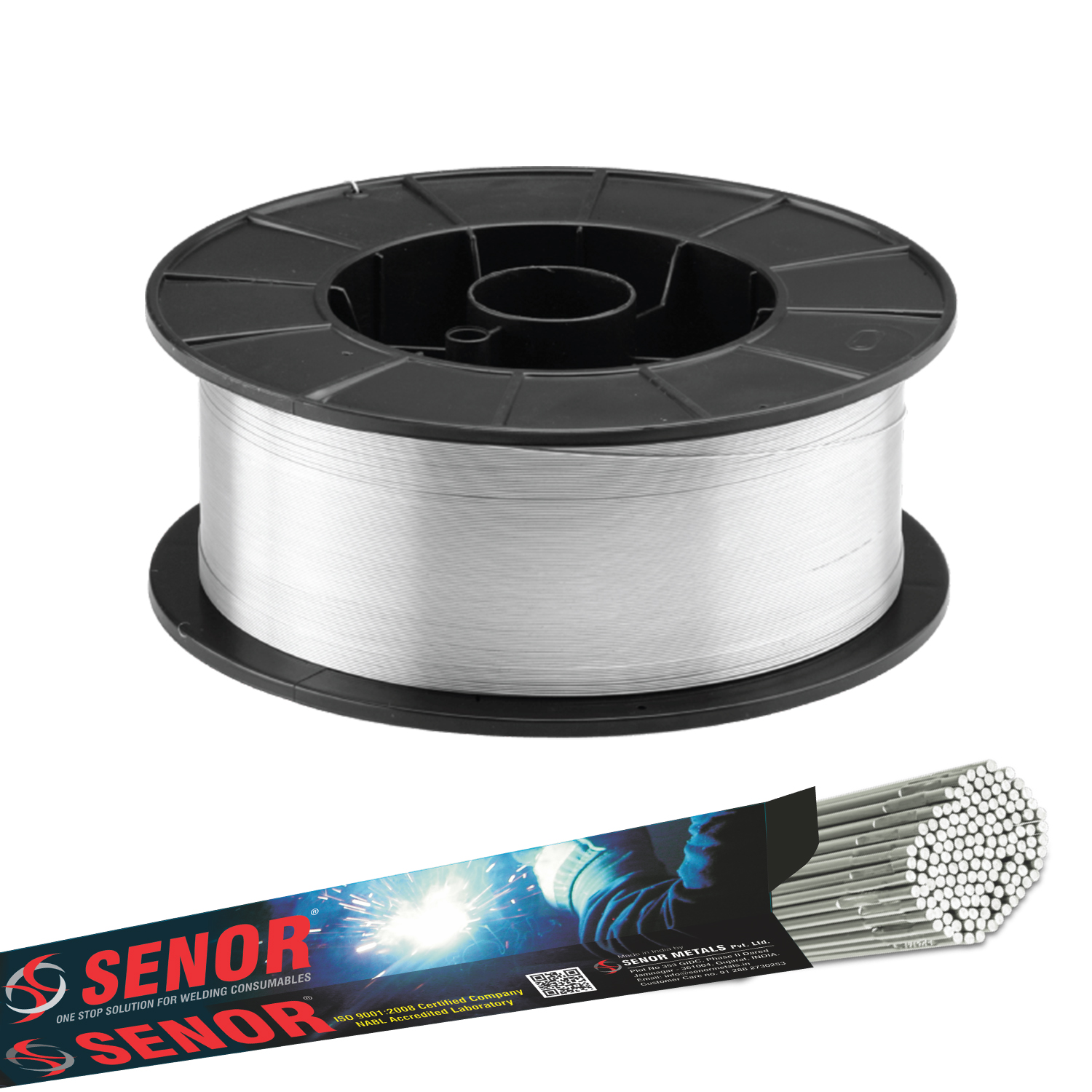

Availability

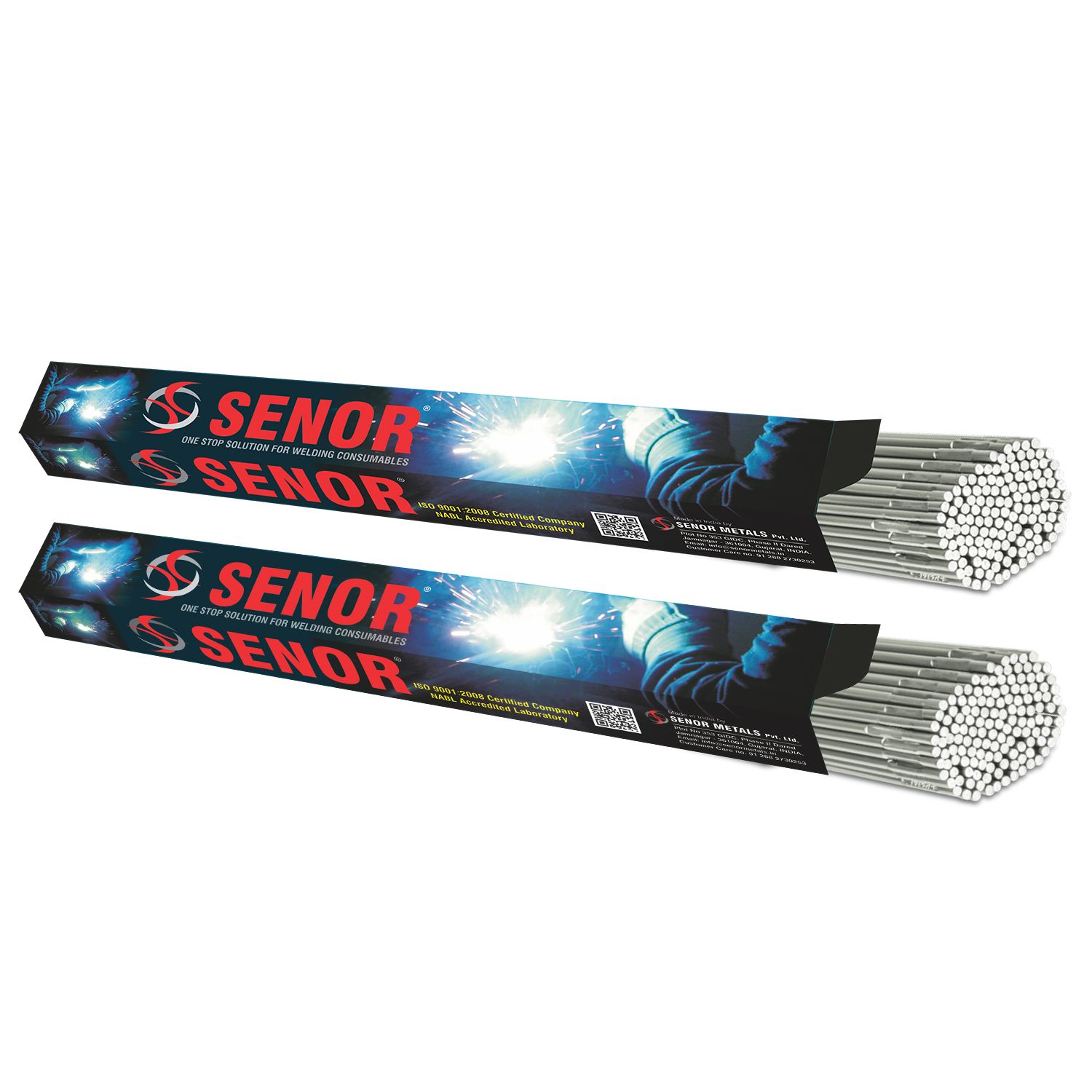

Standard Size: 1.6, 2.0, 2.5, 3.2 & 4.0 mm dia in 500 / 1000 mm length
Packing: 500 mm in 2 kg. & 1000 mm in 5 kg. for TIG welding

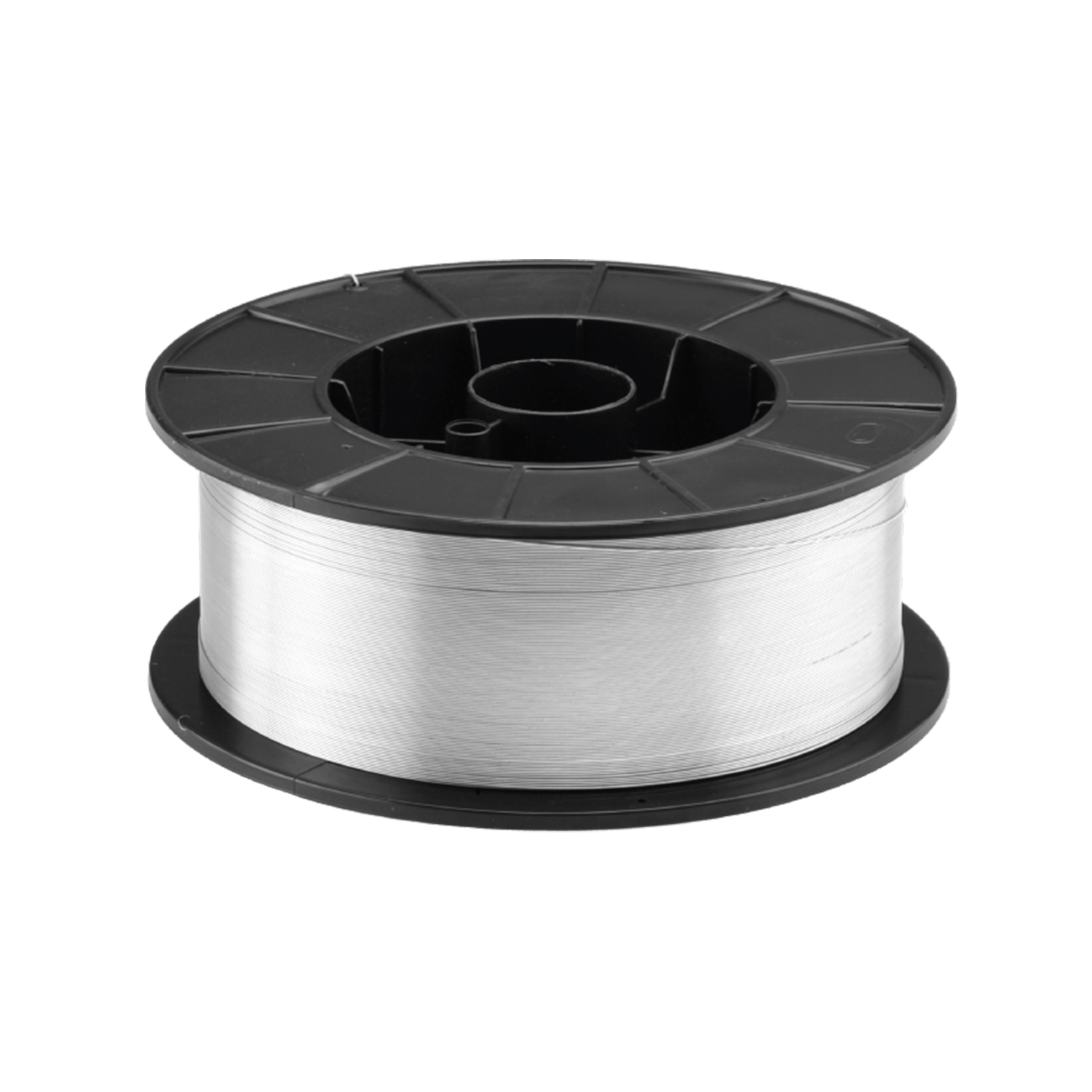

Spools: 0.8, 1.2 & 1.6 mm dia in 6.5 kg spool for MIG welding
