DETAILS
Features/Characteristics
SM ER 5183 MIG & TIG contains magnesium close to 5%, and it has the higher manganese content with aluminium-magnesium; hence they have great working abilities. They come with good corrosion resistance, heat resistance, high strength, good flexibility. After welding, the ER5183 MIG & TIG is still white and can easily provide good colour for the welded joints. The composition of ER 5183 makes it suitable for welding aluminium alloys with magnesium, such as 5083, 5052, and 5456.
Mechanical properties of SM ER5183
Ultimate Tensile Strength : 275 MPa
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Aluminium Alloy Filler Metal
Related products
CONFORMANCE/CLASSIFICATION
| Conformances | Specification | Classification |
| AWS | SFA 5.10 | ER 5183 |
SM ER5183 WELD METAL CHEMISTRY (%)
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al | Be | Each | Other |
| 0.4
max |
0.4
max |
0.10
max |
0.05-1.0 | 4.30-5.20 | 0.05-0.25 | 0.25 max | 0.15 max | Rem. | 0.0003 max | 0.05 | 0.15 |
SM ER5183 Aluminium Welding Wire Uses/Applications
- Can be used to weld the Base materials (ASTM) 3004, 6005, 6061 aluminium alloys.
- SM ER5183 makes it suitable for welding aluminium alloys with magnesium, such as 5083, 5052, and 5456.
- SM ER5183 is commonly used on marine components, drilling rings, cryogenics, railroad cars, storage tanks and unfired pressure.
- ER 5183 MIG & TIG are used in pressure vessels, nuclear, shipbuilding, boiler, space industry. Also, they can be used in jointing or overlay forging and casting alloys processing in the same grade.
TYPICAL OPERATING PROCEDURES/WELDING CURRENT (AC for GTAW) (DCEP for GMAW)
| Diameter | Current (Amps) |
| 1.60 mm | 60 – 100 |
| 2.40 mm | 130 – 180 |
| 3.20 mm | 160 – 200 |
| 4.00 mm | 180 – 240 |

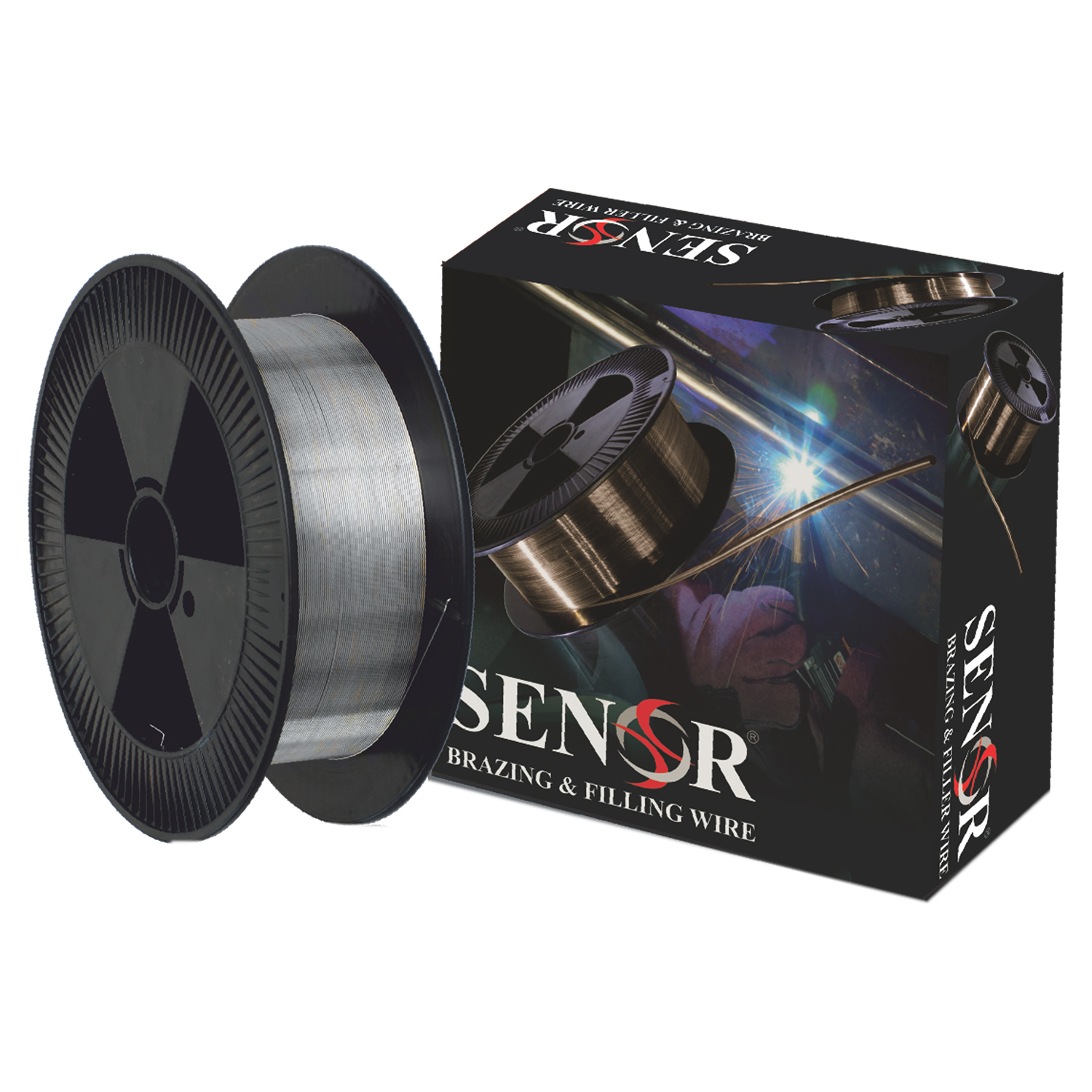

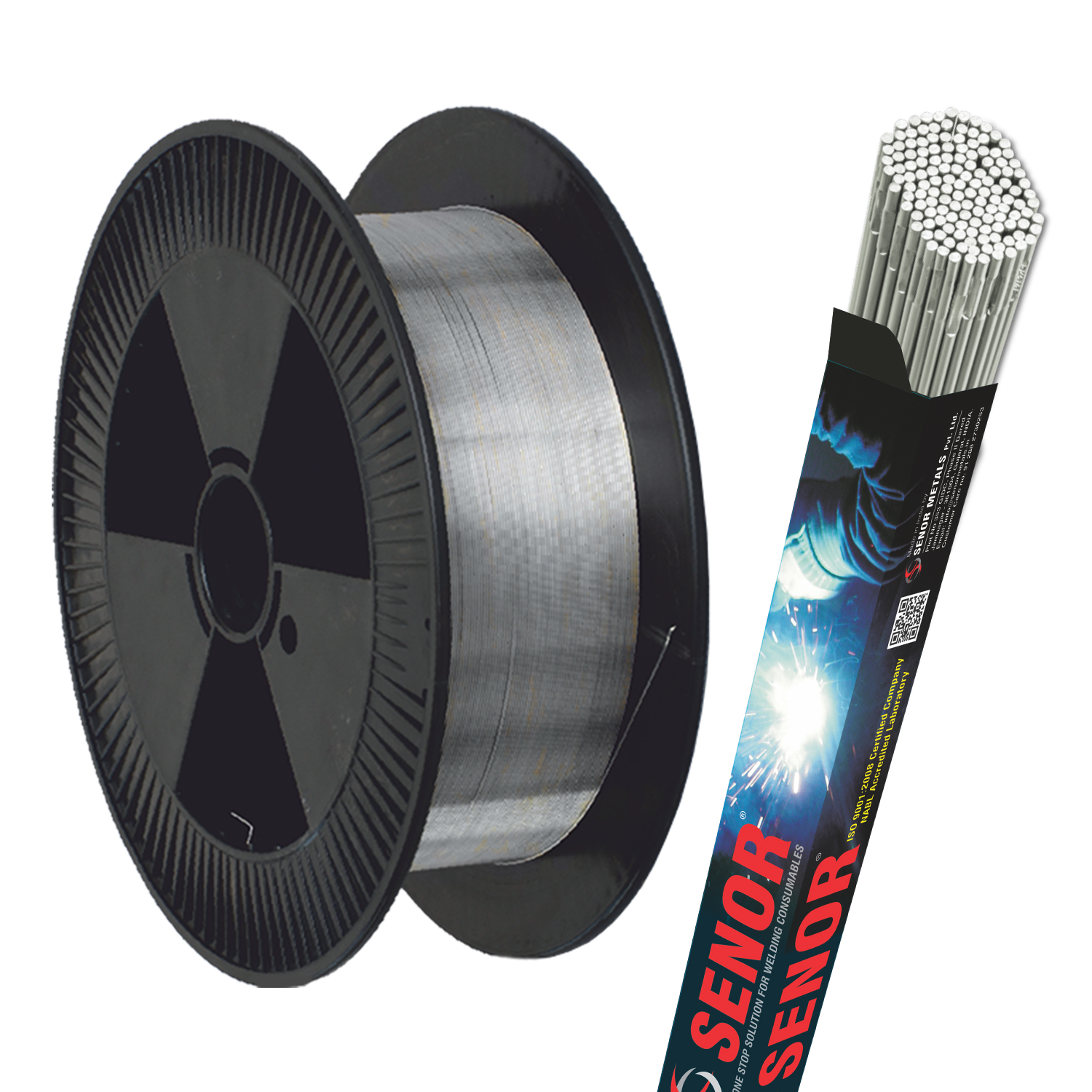

Availability

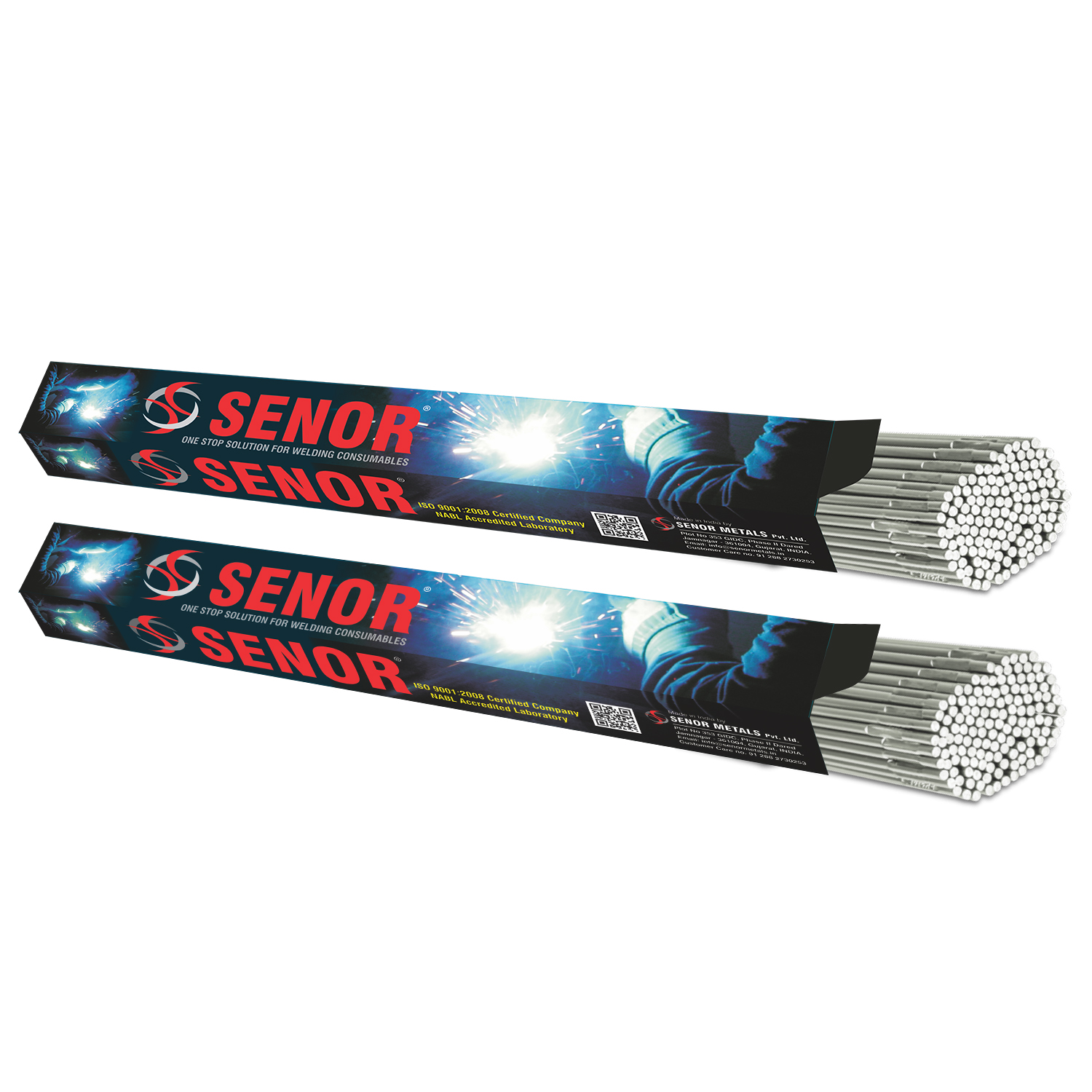

Standard Size: 1.6, 2.0, 2.5, 3.2 & 4.0 mm dia in 500 / 1000 mm length
Packing: 500 mm in 2 kg. & 1000 mm in 5 kg. for TIG welding
Spools: 0.8, 1.2 & 1.6 mm dia in 6.5 kg spool for MIG welding
