DETAILS
Features/Characteristics

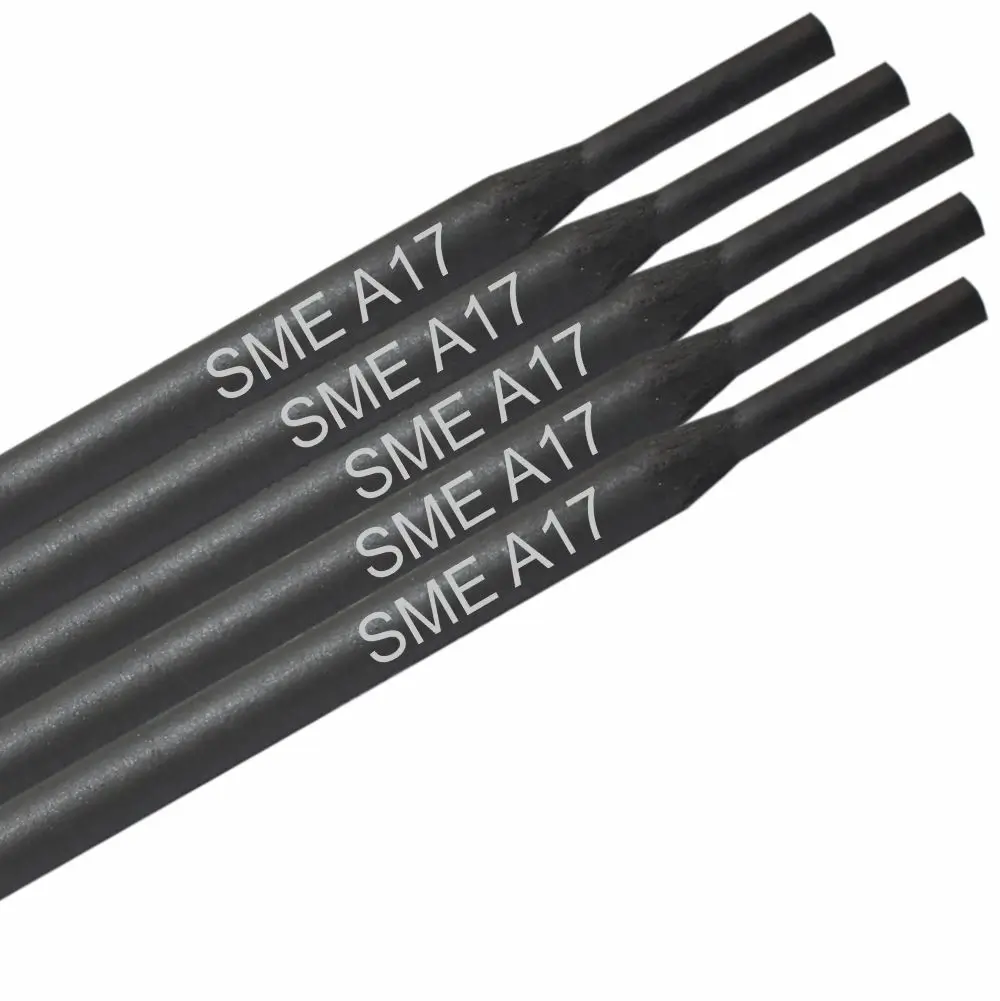

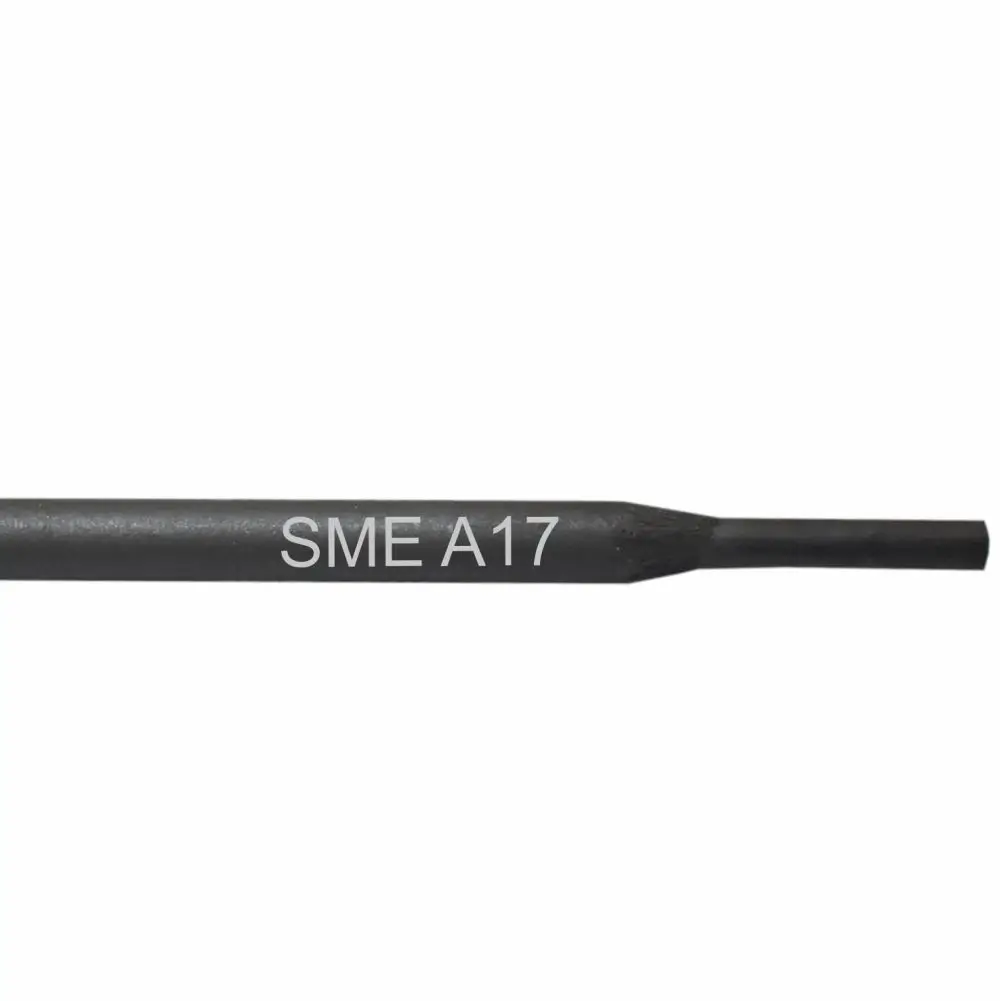

SME A17 is non-machinable electrode for welding cast iron. This gives good bonding properties even on difficult to weld cast iron. Close color match between deposit and base material. One can Shape by grinding.
SME A17 Welding Rod Uses/Applications
- Suitable for welding or surfacing of cast Iron to steel.
- Suitable for use on rusty, corroded and oil soaked parts.
- Economical for repair of foundry defects or cracked castings.
- Deposit final pass with SME A15 or SME A19 for better machinability.
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Electrodes
Related products
MECHANICAL PROPERTIES
Ultimate Tensile Strength: UTS : Upto 45 kgf/mm²
ALLOY BASIS
C, Fe, Si
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC / DC (+)
| Diameter | Current (Amps) |
| 2.5 mm | 50 – 75 |
| 3.2 mm | 70 – 115 |
| 4.0 mm | 100 – 140 |
Availability
Standard Size : 5.0, 4.0, 3.2 and 2.5 in 350 mm length

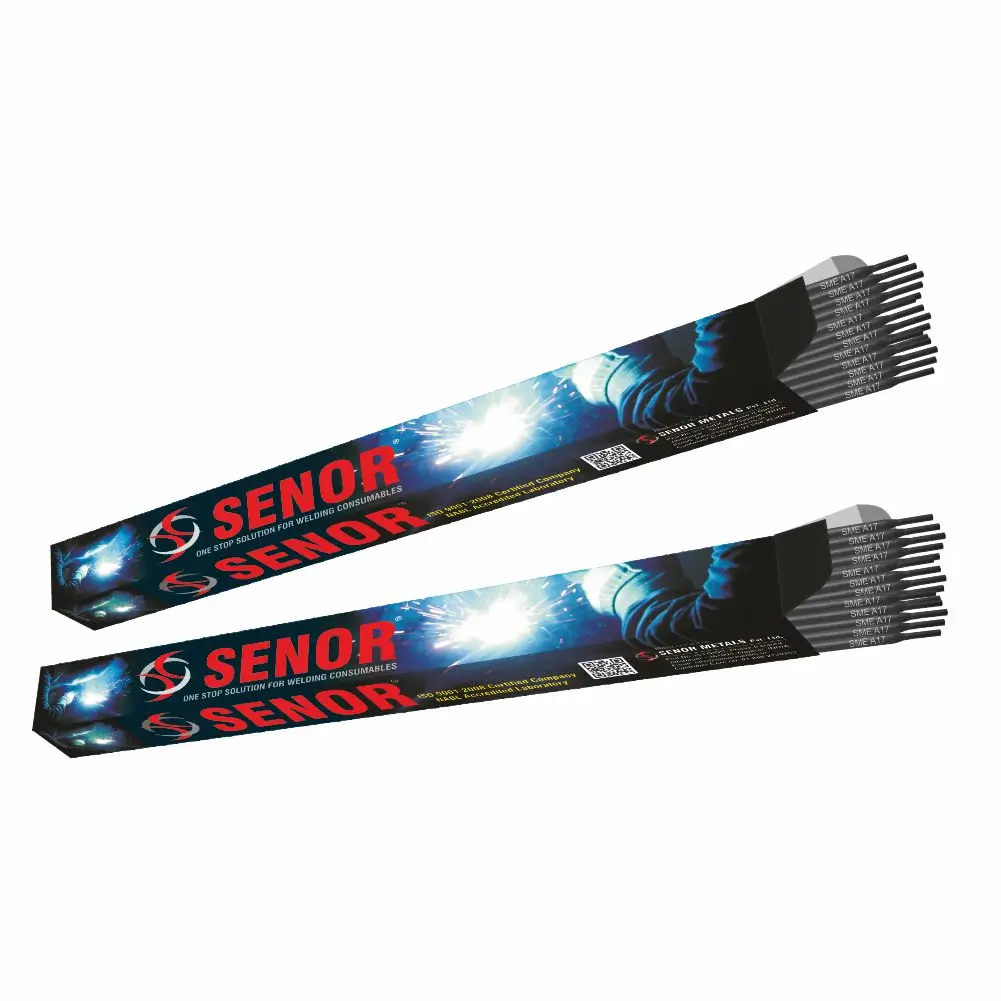

Packing : 2 , 5 Kg.
