DETAILS
Features/Characteristics

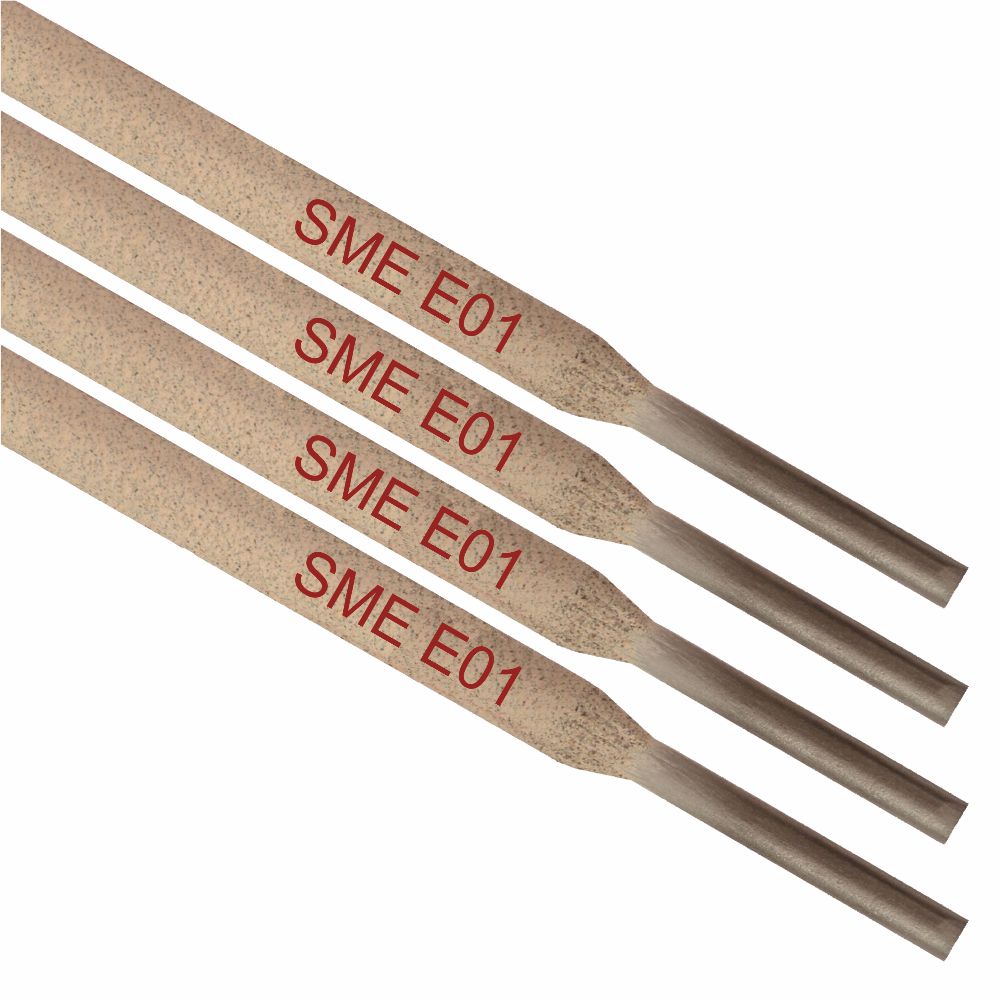

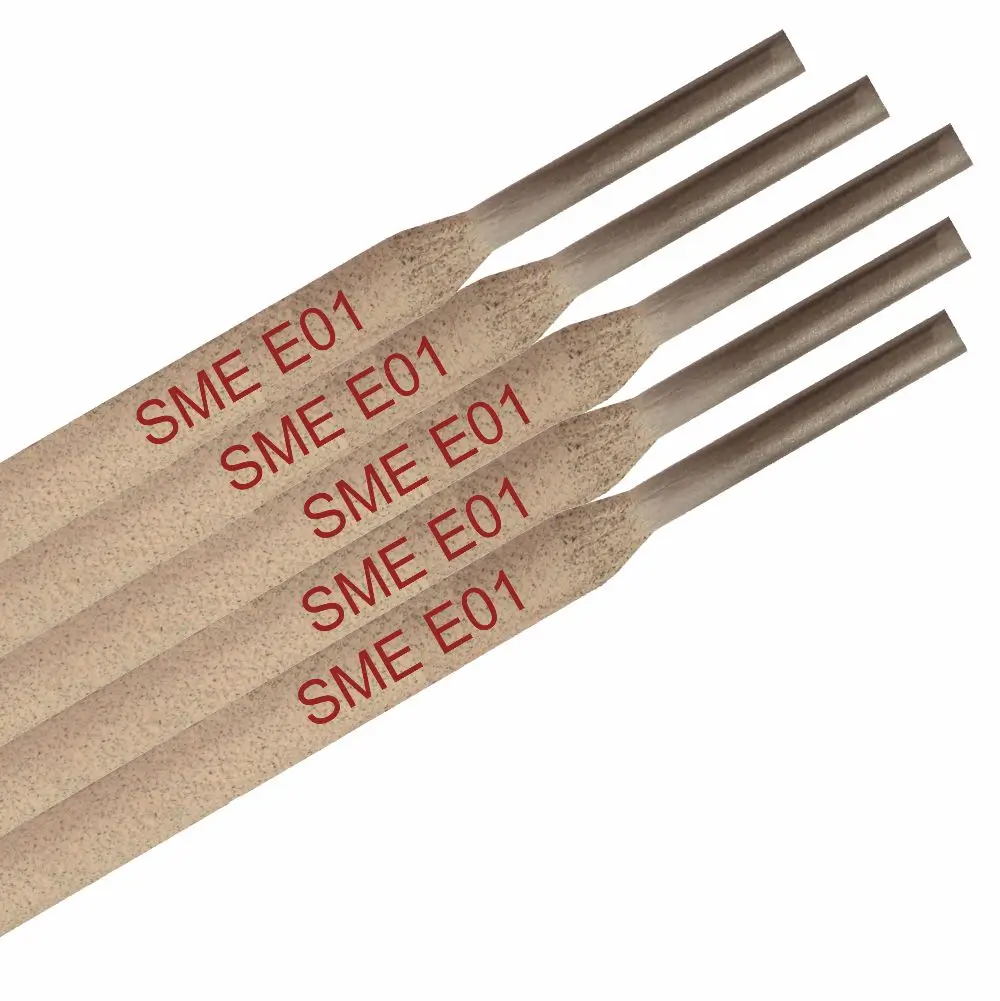

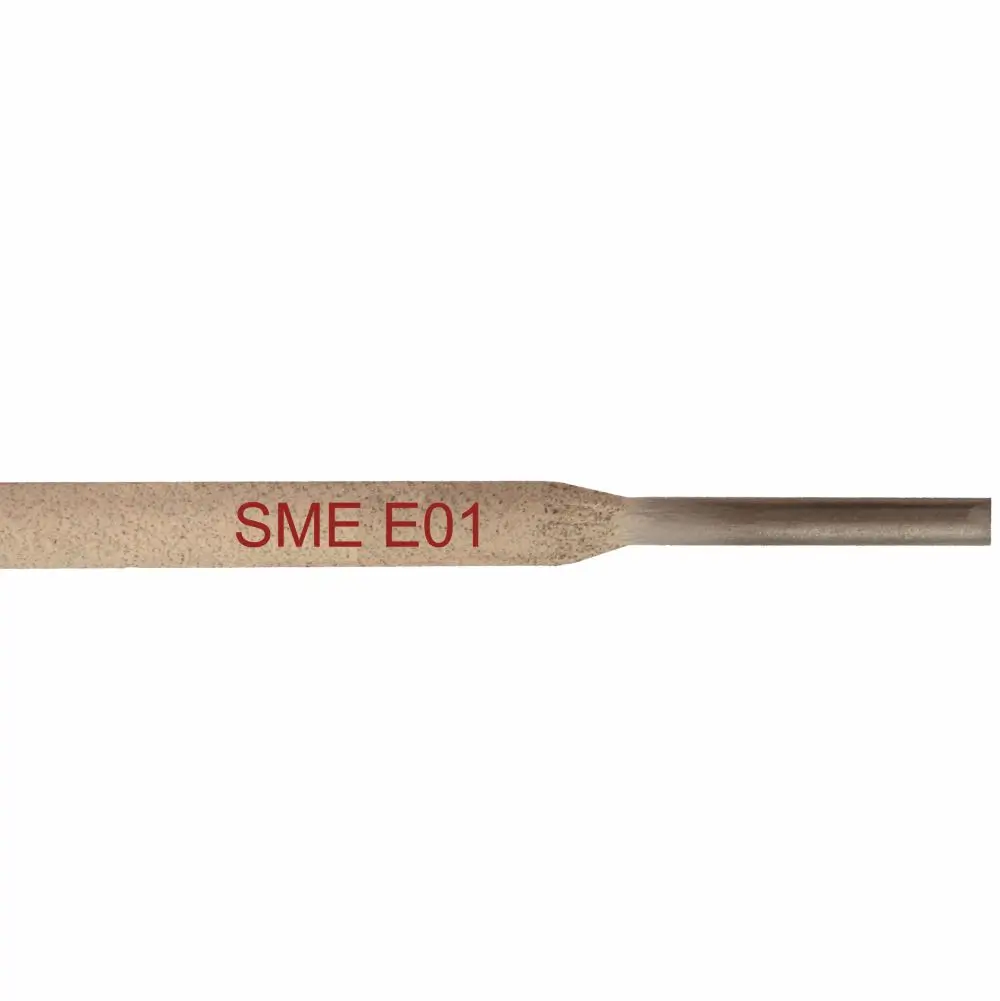

SME E01 delivers weld which has good resistance against corrosion and Oxidation and gives Porosity-free, crack-resistant deposit. Gives minimum spatter level slag which is thin, removes easily leaving behind smooth shining and uniform weld bead which is of radiographic quality.
SME E01 Welding Rod Uses/Applications
- Apparatus construction, chemical industry, valves, and pipelines.
- Welding of pure nickel and nickel-plated steels.
- Overlay of nickel on steel.
- Joint welding of copper and copper alloys with steel.
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Nickel and Nickel Alloys
Related products
MECHANICAL PROPERTIES
Ultimate Tensile Strength: 41 – 46 kgf/mm²
Elongation: 20 – 30%
ALLOY BASIS
Ni, AL, Ti
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) DC (+)
|
Diameter
|
Current (Amps)
|
|---|---|
| 2.5 mm |
50 – 80
|
|
3.2 mm
|
90 – 110
|
|
4.0 mm
|
110 – 140
|
Availability
Standard Size: 4.0, 3.2, and 2.5 in 350 mm length.

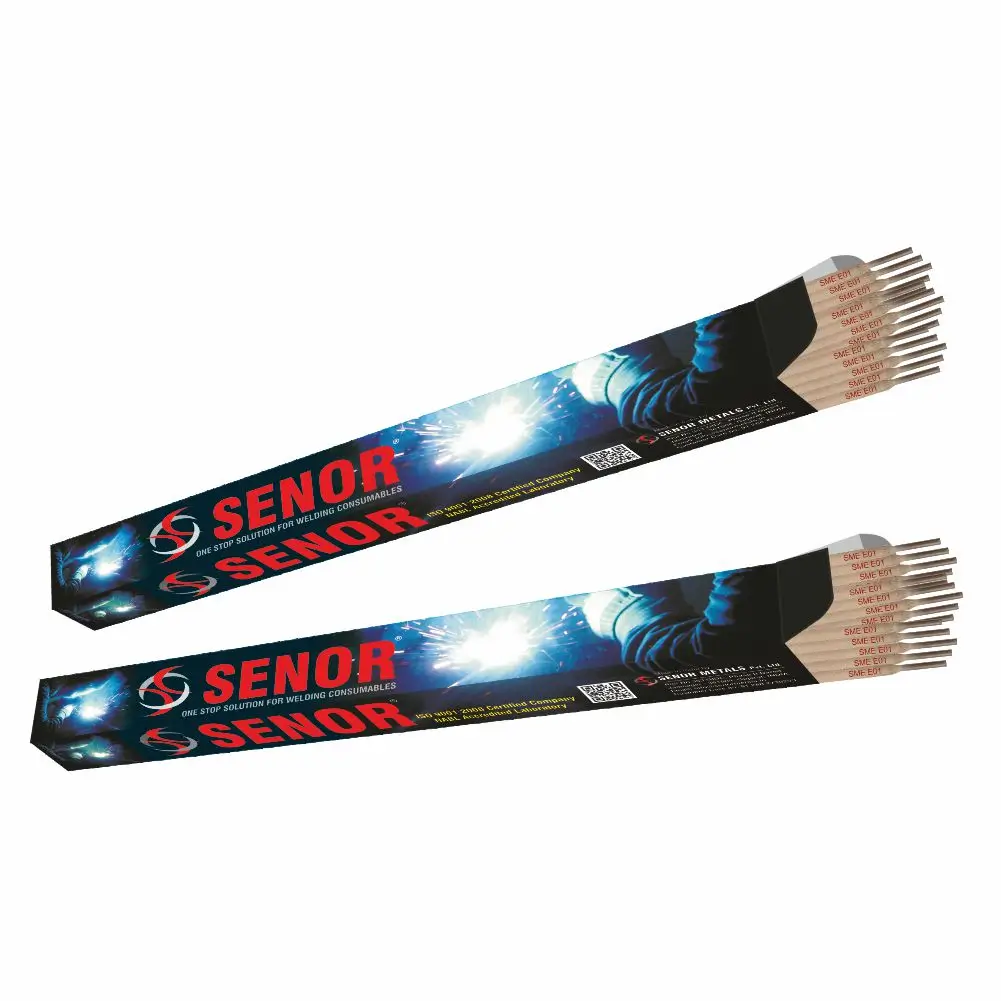

Packing: 2, 5 kg.
