DETAILS
Features/Characteristics

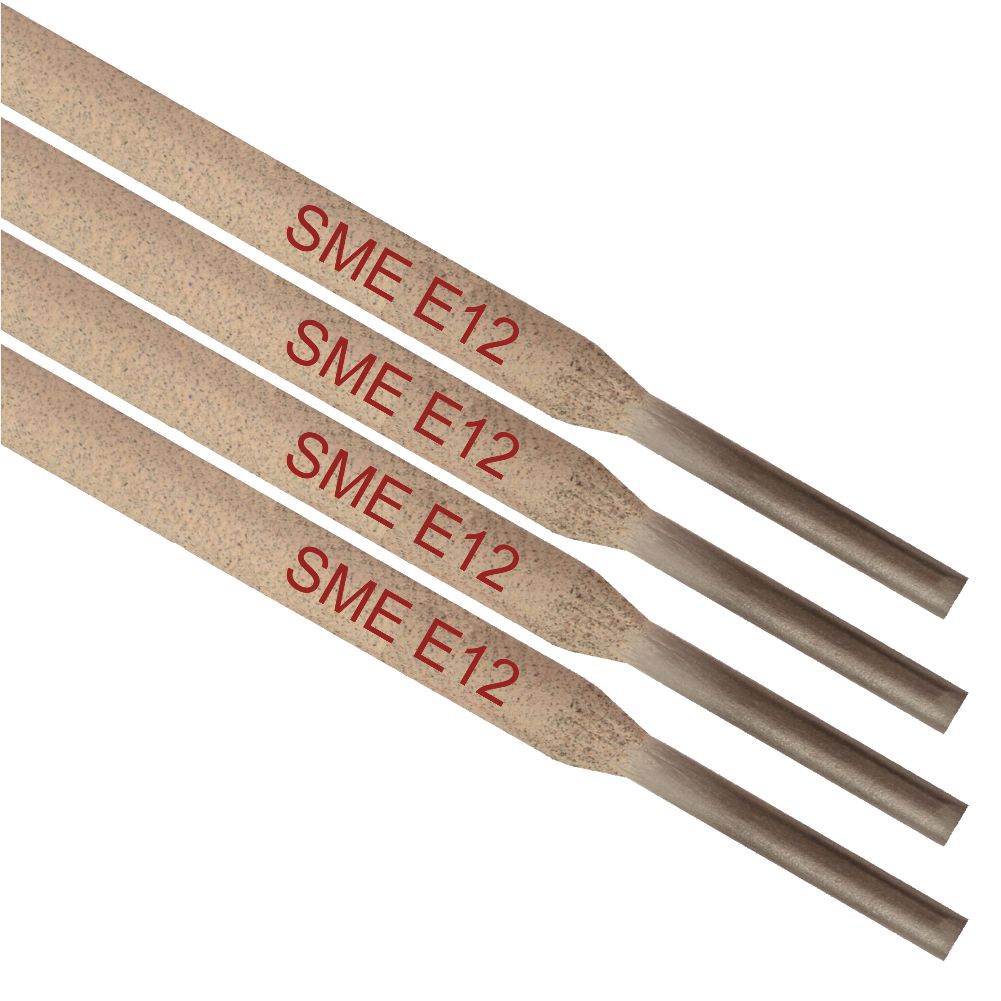

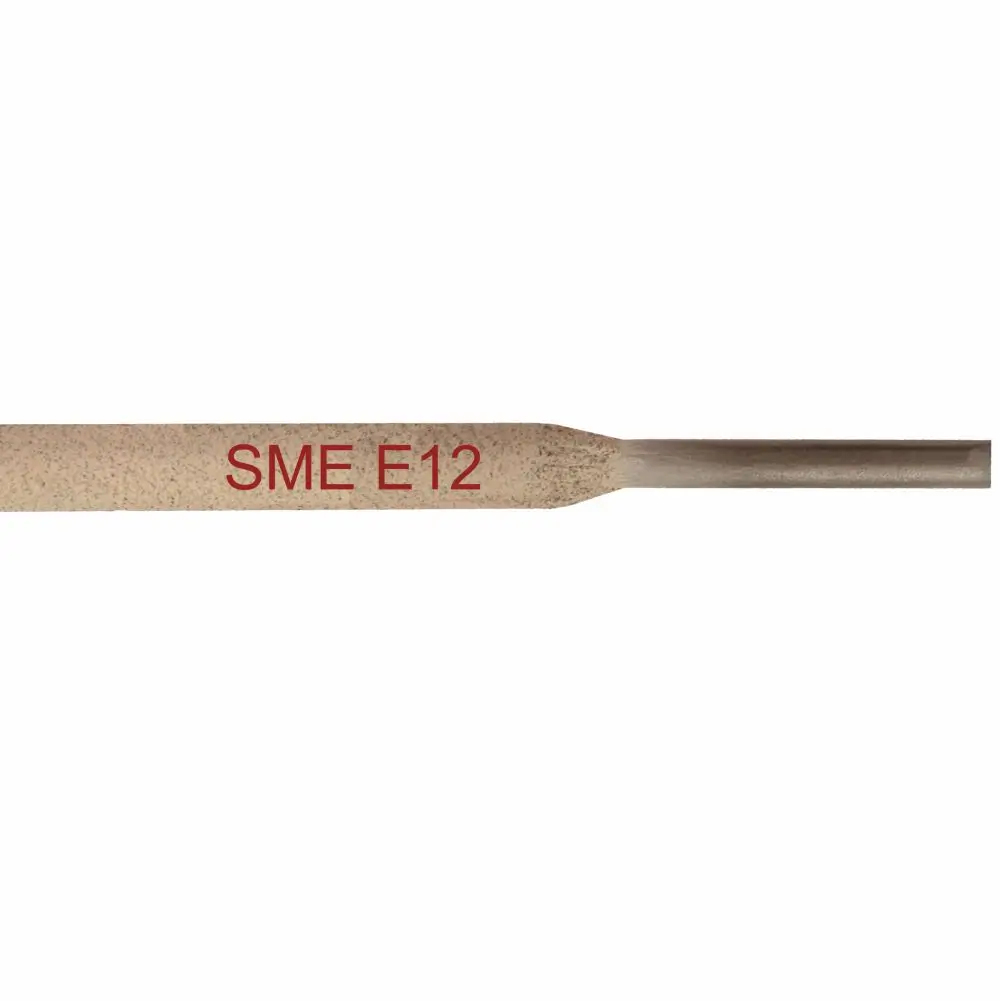

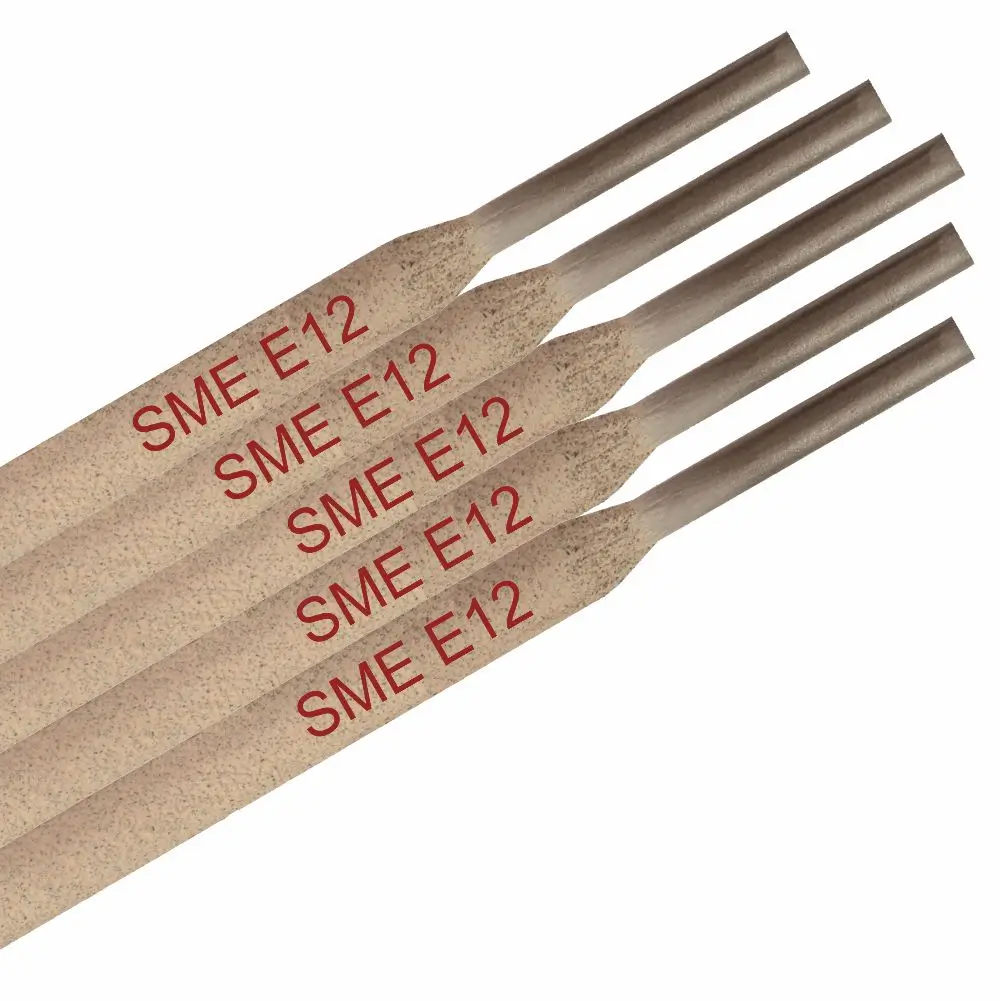

SME 12 weld deposit is resistant to the action of sea water, free of porosity and crack- resistant. Slag removal is easy. Weld beads are shining and uniform.
SME E12 Welding Rod Uses/Applications
- Suitable for Shipbuilding, food industry, desalinization plants, refrigerators, heat exchangers.
- Welded joints and hard-surfacing on similar grades of copper-nickel alloys, with up to 30% nickel content.
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Nickel and Nickel Alloys
Related products
MECHANICAL PROPERTIES
Ultimate Tensile Strength: 35 – 45 kgf/mm²
Elongation (L = 5d): 20 – 26%
Charpy V-Notch Impact Energy at 20°C: 85 J
ALLOY BASIS
Cu, Ni, Ti, Mn
TYPICAL OPERATING PROCEDURES (WELDING CURRENT)
|
Diameter
|
Current (Amps)
|
|---|---|
| 2.5 mm |
60 – 80
|
|
3.2 mm
|
90 – 105
|
|
4.0 mm
|
110 – 130
|
Availability
Standard Size: 4.0, 3.2, and 2.5 in 350 mm length.

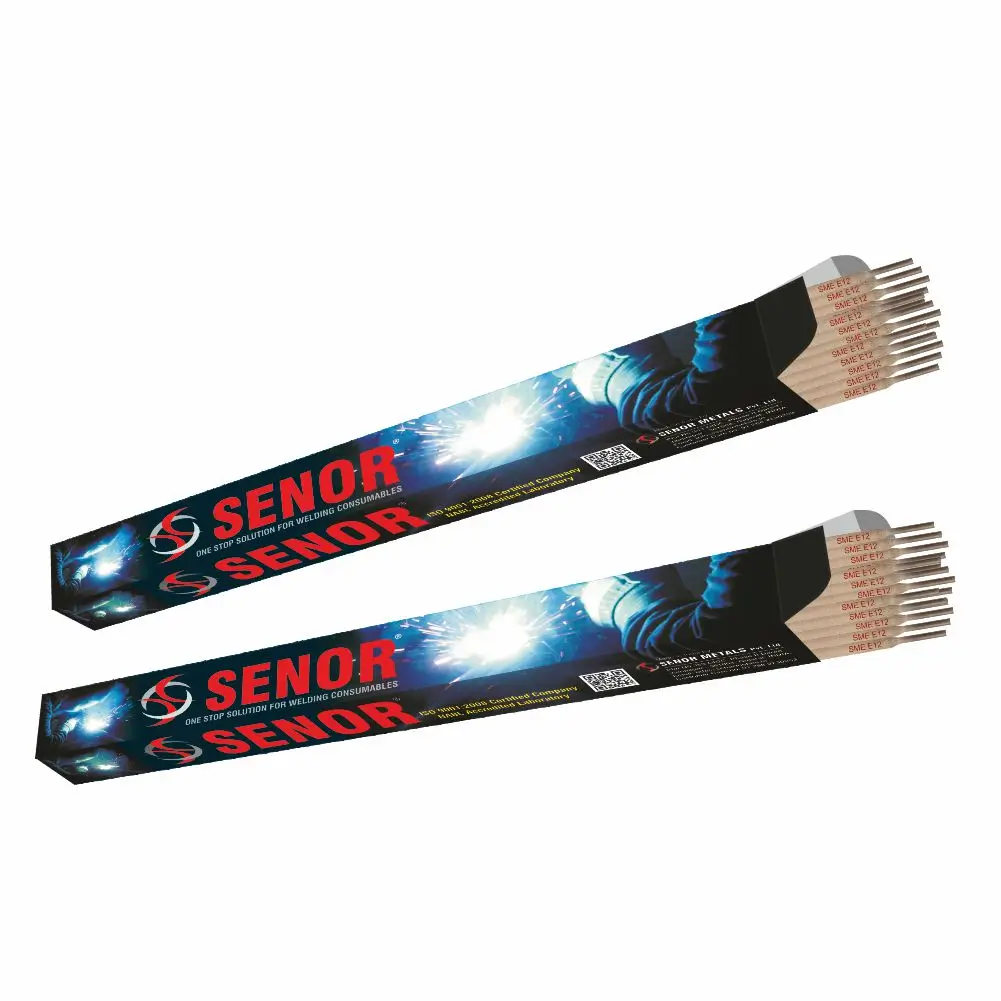

Packing: 2,5 kg.
