DETAILS

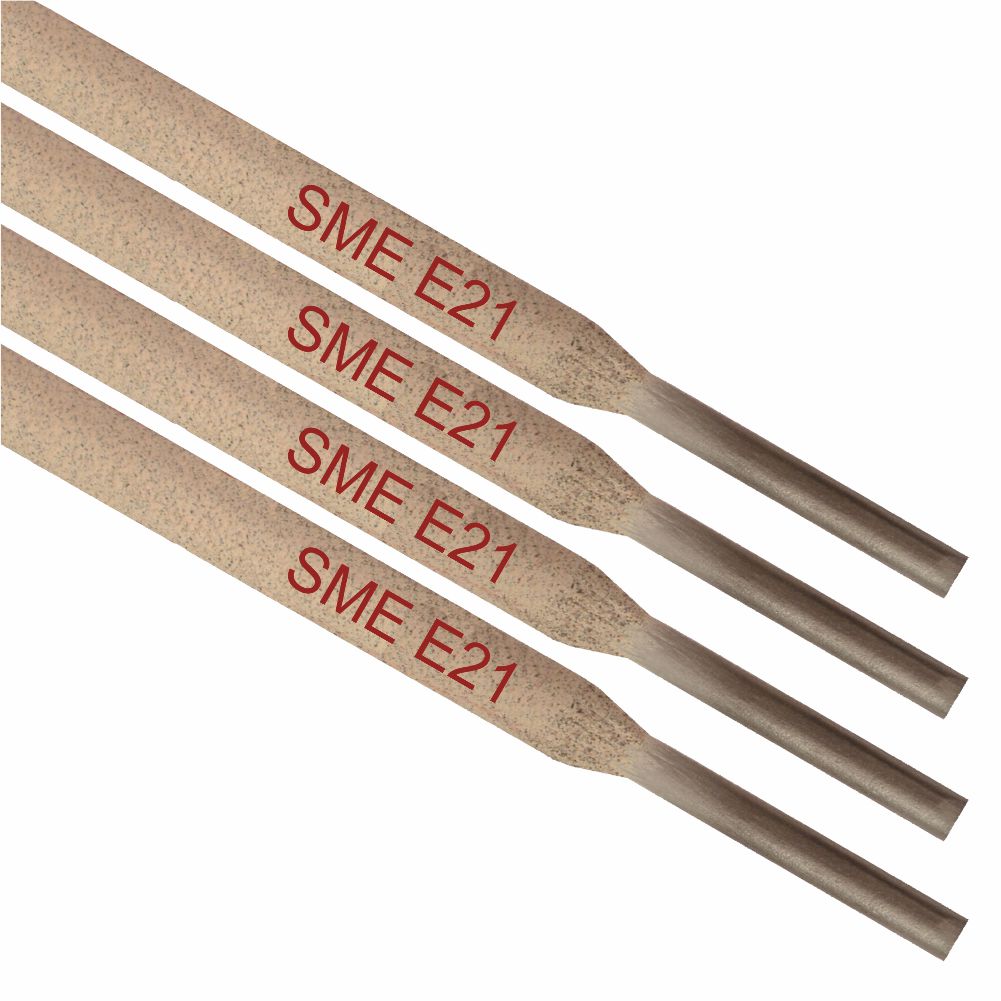

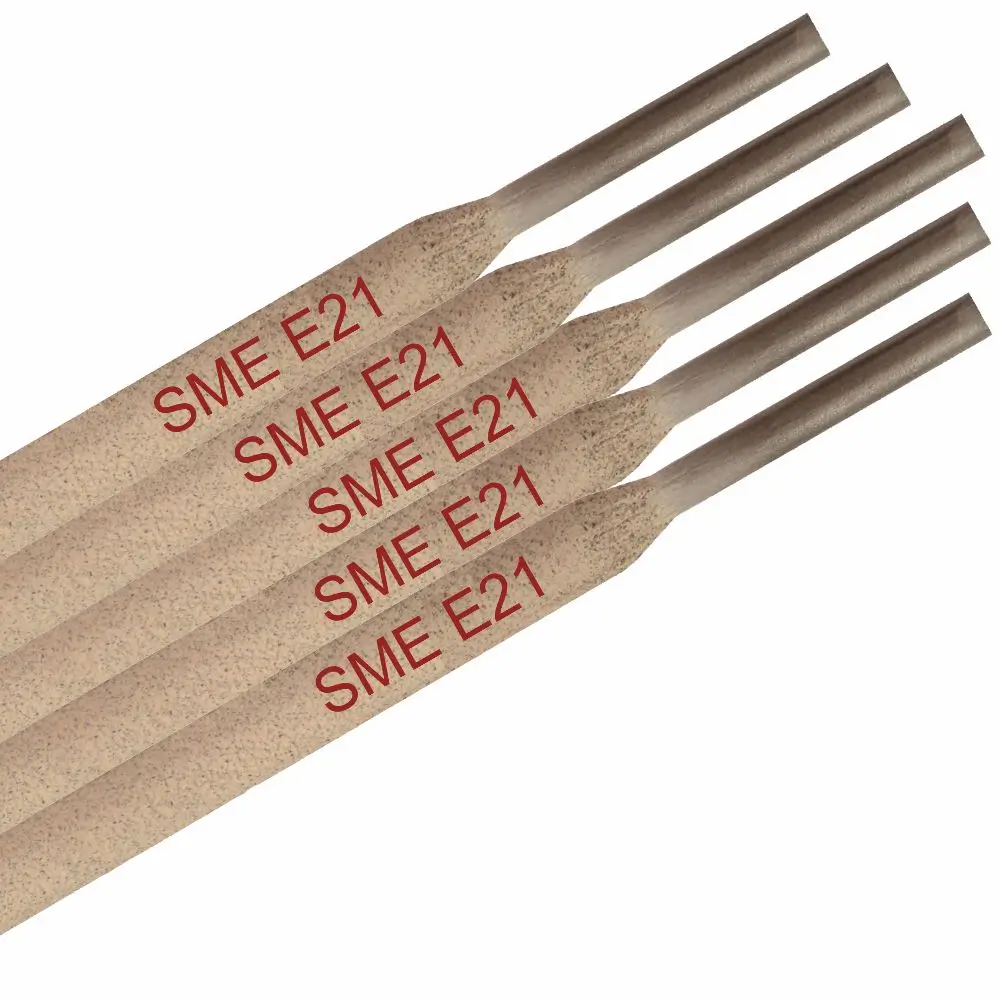

Nickel base electrode for joining high alloys steels subjected to thermal cycling.
Features/Characteristics
Electrode gives a stable arc on low currents. Deposits are smooth, tough and have excellent resistance to scaling, corrosion resistance at normal as well as elevated temperatures. Also possesses good thermal cycles and shock resistance. Any amount of build-up is possible. The deposit is tough and free form porosity.
SME E21 Welding Rod Uses/Applications
Welding of nickel, Inconel, Monel, nickel-chromium-iron alloys, HK alloys, steel, stainless steel and heat resisting steels. Also for welding dissimilar metals such as carbon steels, stainless steels, nickel, nickel alloys to each other. For use on equipment and components made of pure nickel, for fabrication of corrosion resistant tanks and containers, heat exchangers, furnace components, boilers, fittings, anchors, mill trunnions, symmetry gears, etc. Very good for repair of cracks in kiln tyres.
Welding Technique/Procedure
Clean the area to be welded. Preheat sections above 25 mm to 100°C. Adopt short arc, stringer bead technique, chip the slag completely. Allow the job to cool slowly to room temperature.
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Nickel and Nickel Alloys
Related products
MECHANICAL PROPERTIES
Ultimate Tensile Strength: 540 – 620 MPa
Elongation: 30 – 40%
ALLOY BASIS
Ni, Cr, Mn, Nb, Fe
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) DC (+)
| Diameter | Current (Amps) |
| 3.2 mm | 90 – 115 |
| 4.0 mm | 100 – 140 |
| 5.0 mm | 140 – 160 |

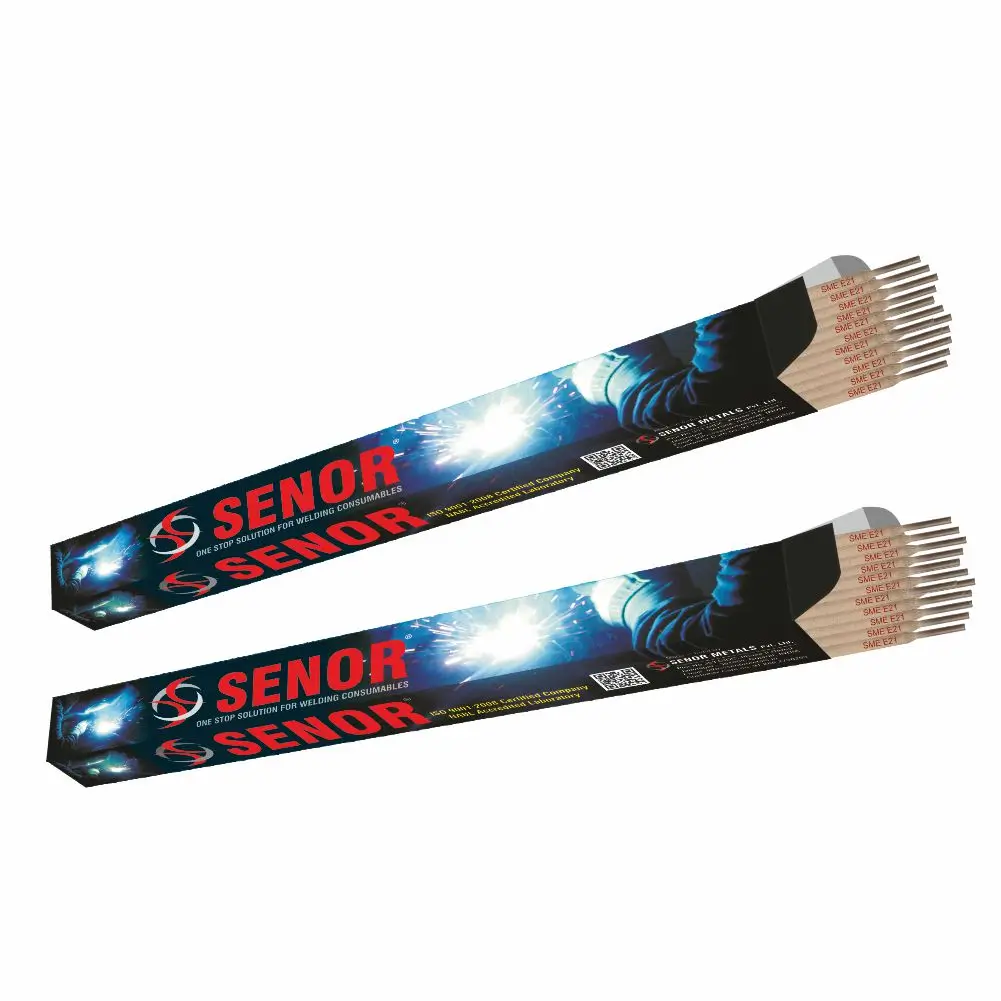

Availability
Standard Size: 5.0, 4.0, 3.2, and 2.5 in 350 mm length.
Packing: 2, 5 kg.
