DETAILS
Features/Characteristics

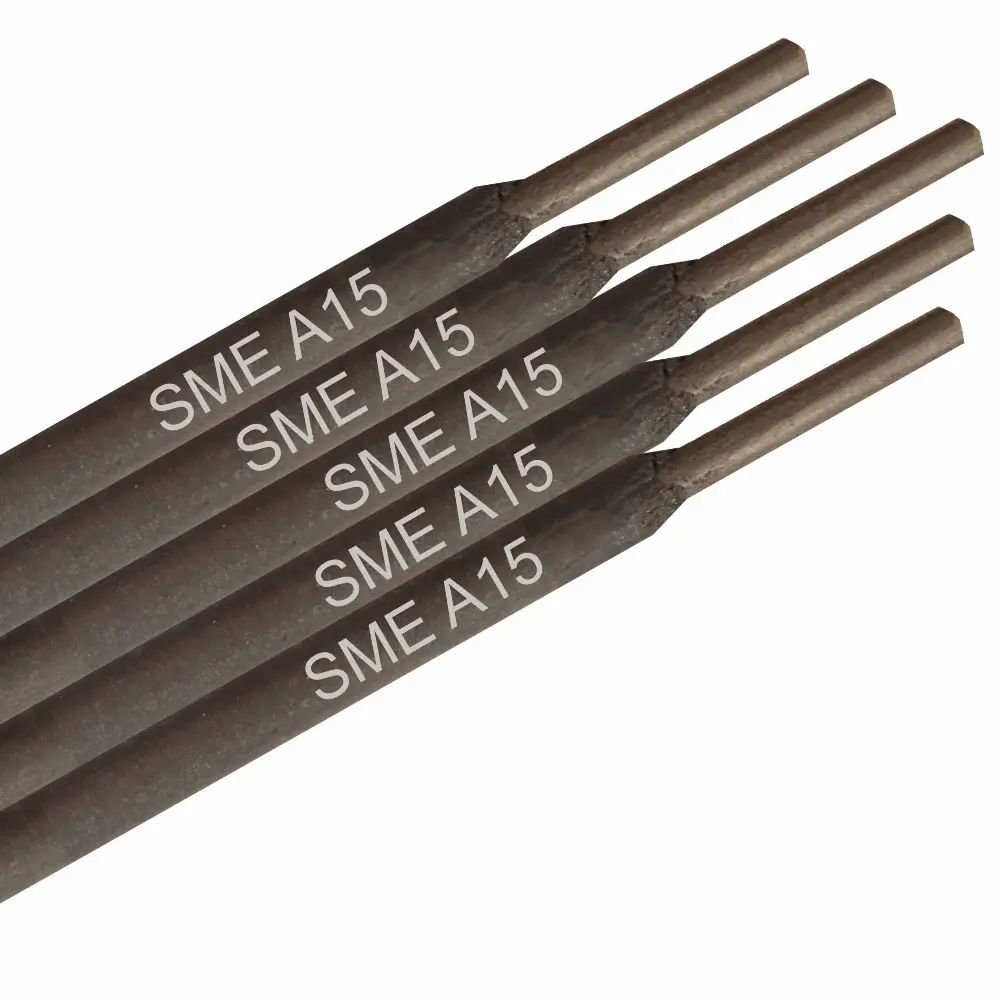

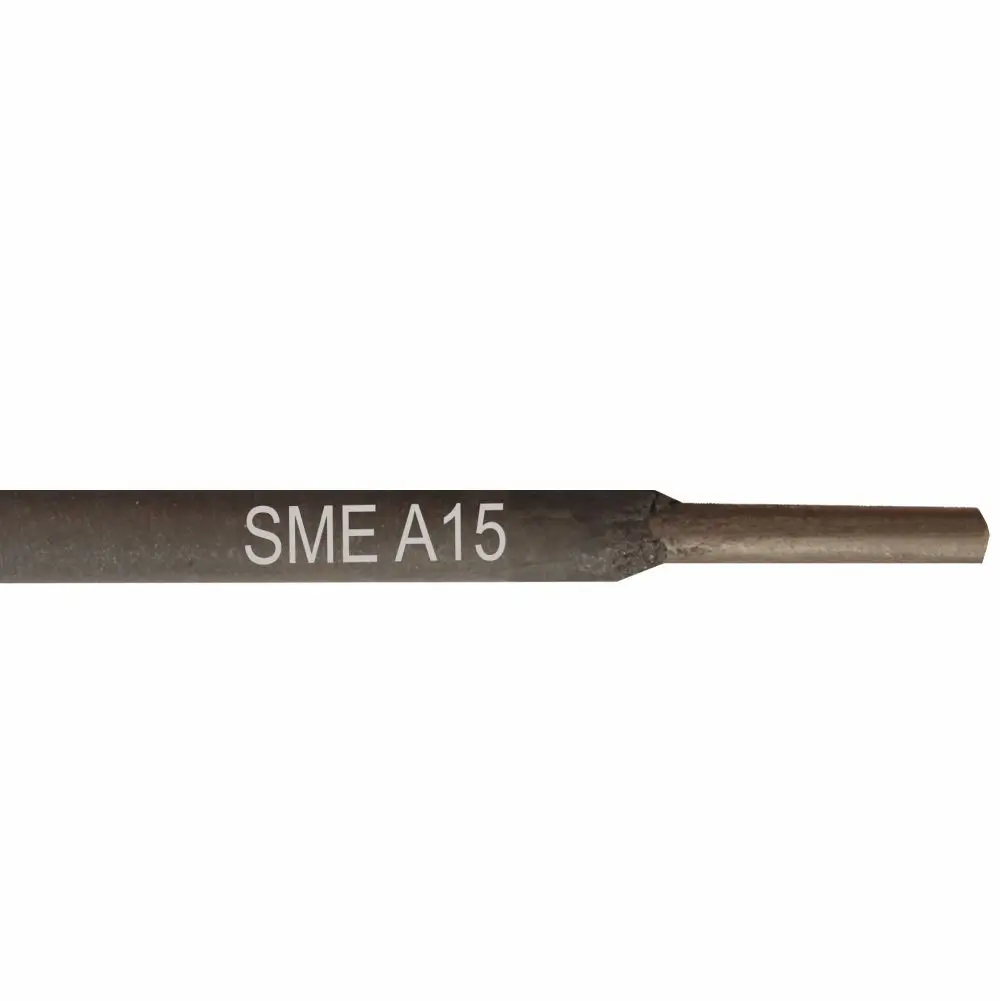

SME A15 is an electrodes for cold welding of cast iron and has smooth stable arc and is good for positional welding. The heat affected zone is machinable since there is little mixing up with base material.
SME A15 Welding Rod Uses/Applications
- Surfacing cast iron parts subject to erosion, corrosion and high temperatures.
- Cold welding of cast iron without preheat and for joining cast iron to mild steel.
- Repairing intricate cast iron parts electric motor bodies and covers, machine frames, water pump housing, gears.
- Salvaging foundry castings, gear box and differential housing sugar mill rollers, glass moulds and cast iron dies.
Disclaimers
Service Information
Documentation
- Safety Data Sheet
- Certificates of Conformance
More Cast Iron Electrodes
Related products
MECHANICAL PROPERTIES
Ultimate Tensile Strength: UTS : 30-35 kgf/mm²
ALLOY BASIS
Ni
TYPICAL OPERATING PROCEDURES (WELDING CURRENT) AC / DC (-)
| Diameter | Current (Amps) |
| 2.5 mm | 50 – 75 |
| 3.2 mm | 65 – 110 |
| 4.0 mm | 90 – 140 |
Availability
Standard Size : 5.0, 4.0, 3.2 and 2.5 in 350 mm length

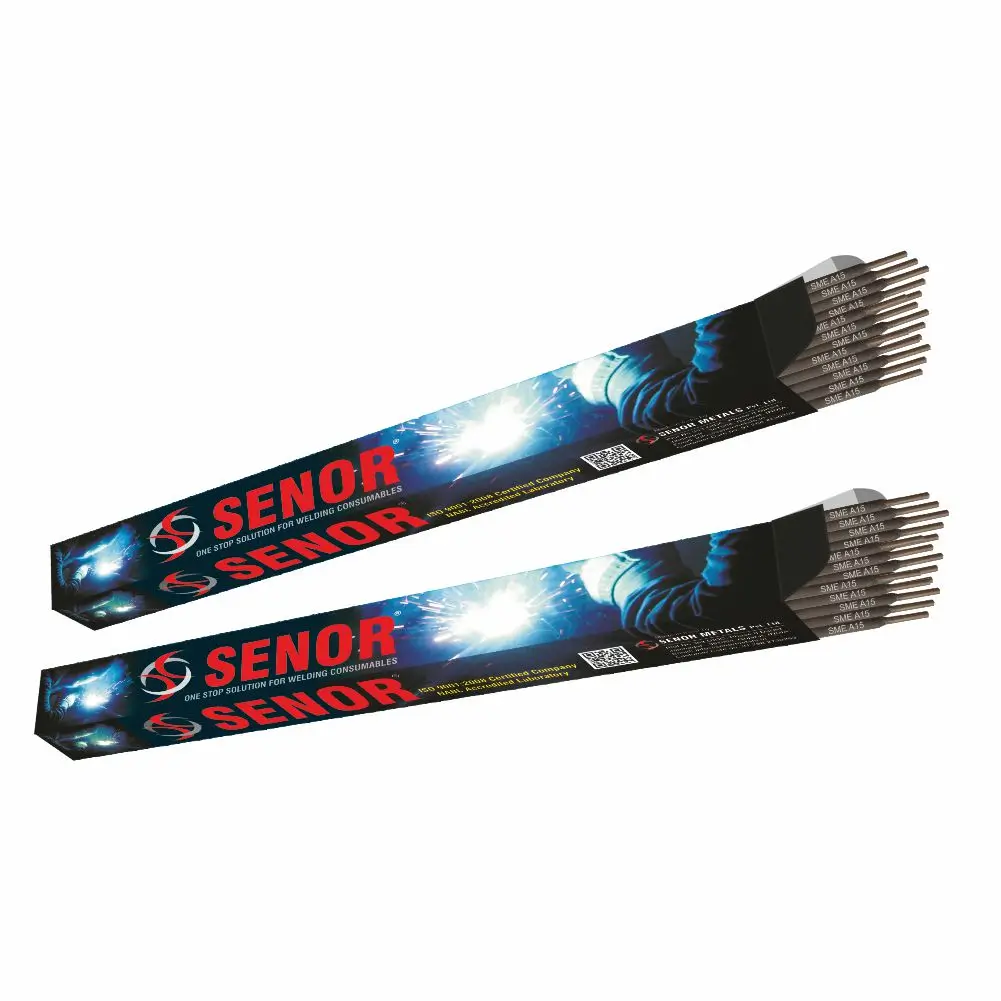

Packing : 2 , 5 Kg.
